ASSEMBLY AND INSTALLATION
19
6
6

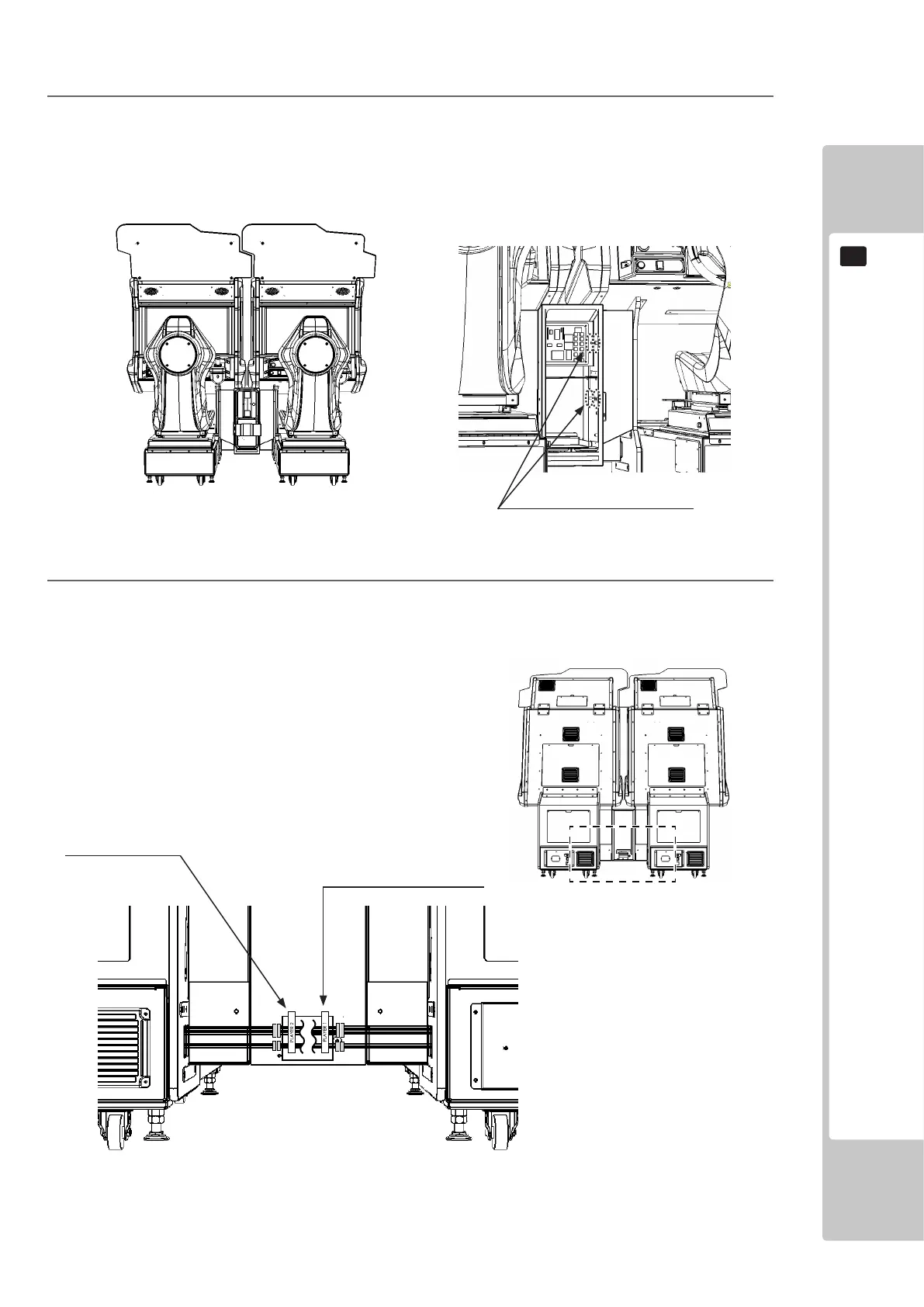

Carefully push both Left and Right cabinets together, taking care not to damage the Billboard Plate. Once in
position, secure the xing points on the Right Hand cabinet through the Coin Chute Tower
7
Locate the harness from both Left and Right hand cabinets. Locate the Harness from the Coin Chute Tower.
Connect the Coin Chute Tower harness into both Left and Right hand cabinets. Make sure that the correct
connections are made.
M8 Hex Nut (4) Supplied
Player 2 Harness from Coin Chute Tower
Connect to Right Hand Cabinet.
Player 1 Harness from Coin Chute Tower
Connect to Left Hand Cabinet.
To Next Page
