139
K600000000SE 030804 011018
- Connect the Pitot tube (accessory) to inputs P+ and P- (which are normally used for the differential pressure
measurement)
- Connect the Tc-K thermocouple cable from the flue gas probe to connector T1 of the instrument.
NOTE:
the tubes associated to static and dynamic pressure
can be connected either to the inputs P+ or P-
AA SF--A
AAC TA03A

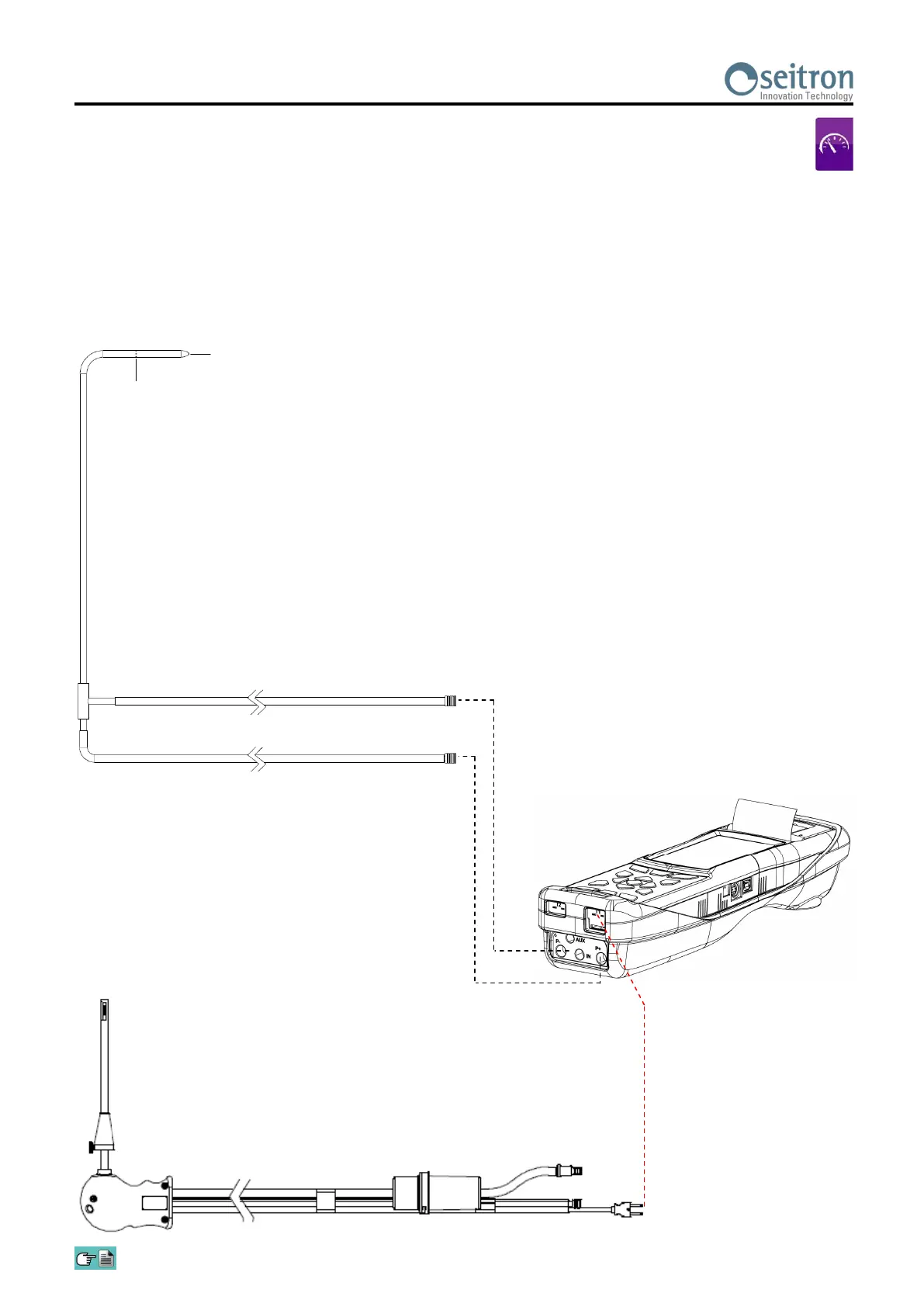

13.14.1 How to connect the Pitot tube to the instrument
P+
P-
T1
STATIC PRESSURE
DYNAMIC PRESSURE
DYNAMIC PRESSURE
STATIC
PRESSURE
WARNING: when a Pitot tube integrated to a Tc-K thermocouple is used, remember to connect the
thermocouple connector to T1 input at instrument side. In this case the flue gas probe must
not be connected.
AA TT--
