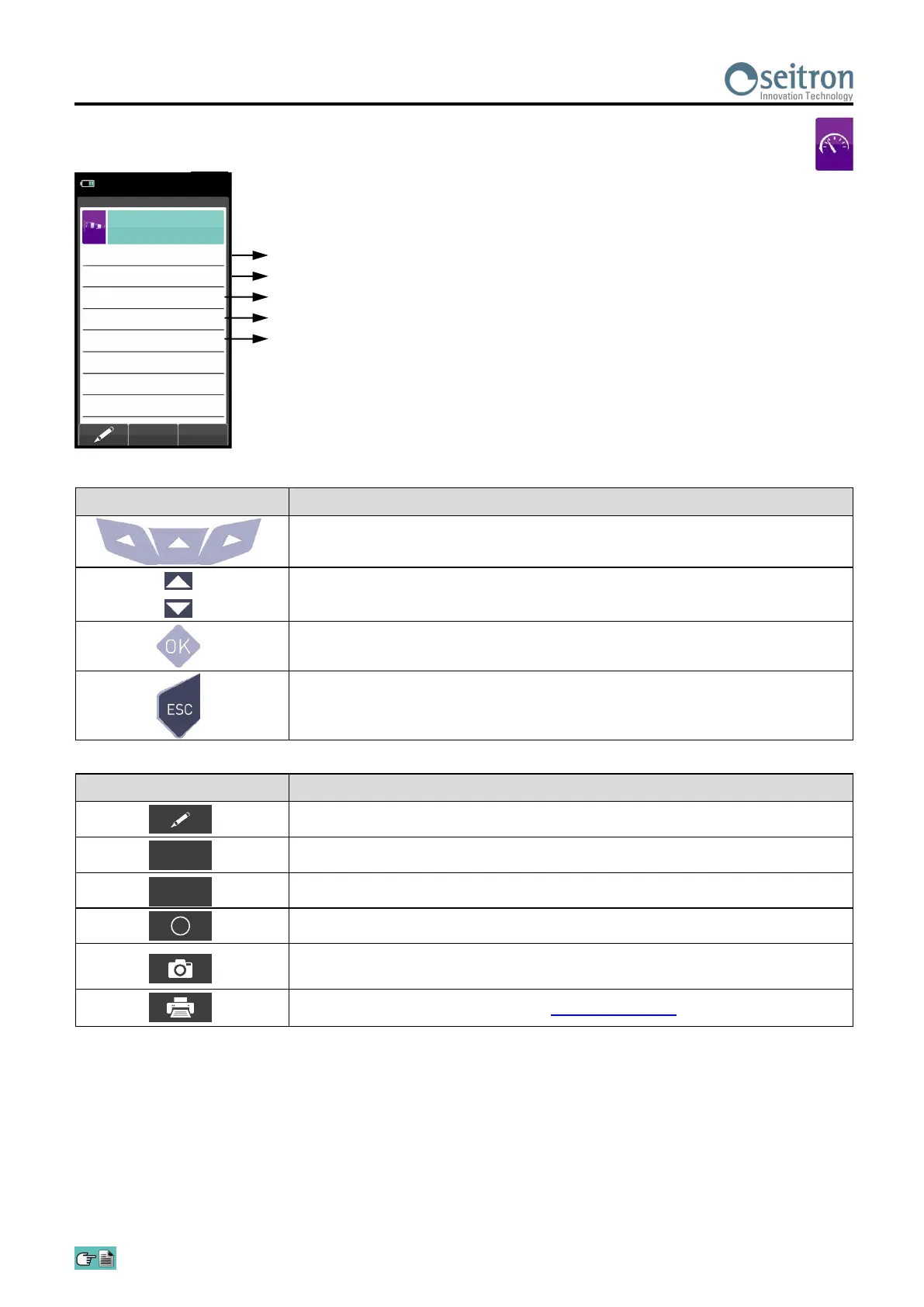

13.14 Measurements→Velocity
Measurement: air or flue gas.
Altitude above sea level.
15/01/14
10:00
Pitot
Configuration
Gas
aria
Altitude
m
0 m
Unit
m/s
K Pitot
1.001
Probe T
Pitot
Measurement unit selectable across m/s, km/h, fpm, mph.
Insert the K-factor of the Pitot tube stated by the tube manufacturer.
Temperature acquisition mode:
Pitot (with Tc-K thermocouple) or Flue gas probe (or external Tc-K thermocuple).
CONTEXT KEY FUNCTION
Enters the modification mode for the selected parameter.
Confirms the value entered.
Go to next step.
Make the zero for the measurement.
Saves, in the memory selected in the "Select Memory" menu, the data
acquired.
Starts printing the paper print-out. SEE SECTION 12.
O
OK
KEY FUNCTION
Activate the context keys shown on the display.
Selects line; the selected line is displayed in red.
In edit mode, it sets the desired value.
Activates the context key located in the left side of the display.
Returns to the previous screen.
When in modify mode cancels the modification just made.
To Next Page
