137
K600000000SE 030804 011018

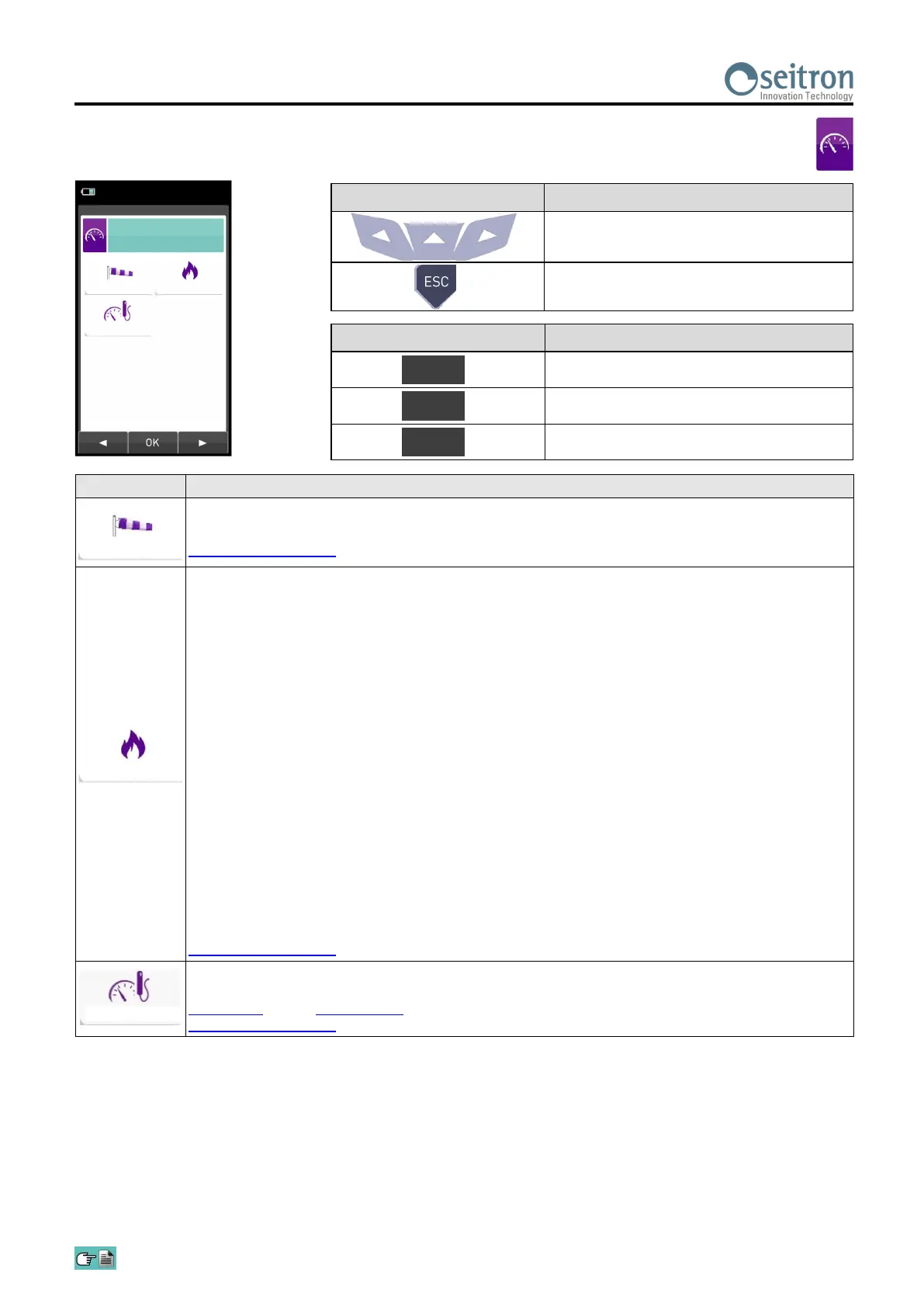

13.13 Measurements→AUX measurements
PARAMETER DESCRIPTION
When a Pitot tube and a Tc-K thermocouple are connected, the instrument is capable to
measure at the same time both temperature and velocity of a gas (air/flue gas).
SEE SECTION 13.14.
Thermal power of the burner
The measurement of the thermal power at the burner can be performed in different ways,
depending on the type of fuel selected.
Boilers using gaseous fuels
FLOW: if the system is equipped with a volumetric flow meter just enter the value of the fuel
volume flow (m
3
/ h).
COUNTER: this mode can be used if the system is equipped with a volumetric flow meter. The
volume flow is calculated by reading on the counter, while the generator is in steady
operation, the volume of gas flown in a time interval of at least 120 s.
MANUAL: if the procedure was provided by the manufacturer and appropriate instructions have
been specified on the user manual, the operator can find out the thermal power of
the burner and enter it manually. In the absence of counter or any other system for
measuring the flow, the nominal thermal power of the boiler stated by the
manufacturer is to be assumed as the proper value.
Boilers using liquid fuels
FLOW: the value of the mass flow rate (kg / h) of the fuel must be entered.
MANUAL: if the procedure was provided by the manufacturer and appropriate instructions have
been specified on the user manual, the operator can find out the thermal power of
the burner and enter it manually. In the absence of counter or any other system for
measuring the flow, the nominal thermal power of the boiler stated by the
manufacturer is to be assumed as the proper value.
SEE SECTION 13.15.
You can measure the ionization current of a boiler and test its value based on the technical
features of the boiler by connecting the ionization probe (optional) to the serial port (See
section 8.4 and/or section 8.4.8).
SEE SECTION 13.16.
KEY FUNCTION
Activate the context keys shown on the
display.
Returns to the previous screen.
CONTEXT KEY FUNCTION
Selects the available parameters.
Enters in the selected parameter setting.
Selects the available parameters.
OK
◄
►
Velocity
Power of burner
04/03/16
10:00
Velocity Power of burner
Measurements
Ioniz. probe
Ioniz. probe
