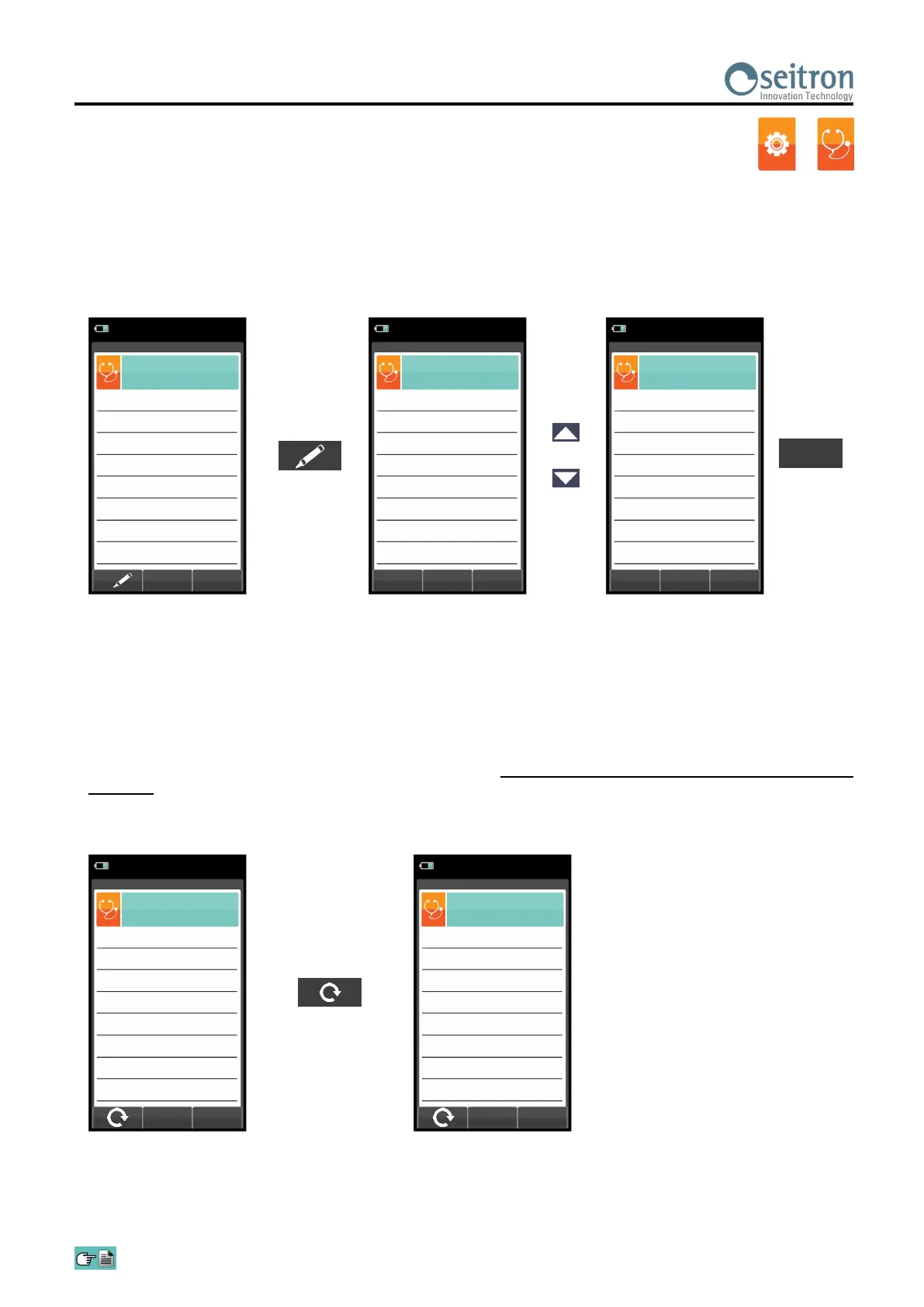

CALIBRATION EXAMPLE FOR THE OXYGEN CELL (O
2
).
→
Apply gas to the instrument and adjust the output pressure of the gas from the cylinder so that the flow meter
indicates a minimum flow of 0.5 l/m: this guarantees that the instrument is taking the exact amount of gas
required by the internal pump.
The calibration will be possible only when the status is set to ‘----' (cells which never had an on-site calibration)
or 'inactive'.
On site calibration
Sensor O
2
15/01/14
10:00
Is
uA
5.72
Measured gas
%
0.7
Applied gas
%
0
Elapsed time
00:03:40
Status
non active
Calibrate
On site calibration
Sensor O
2
15/01/14
10:00
Is
uA
5.72
Measured gas
%
0.7
Applied gas
%
0
Elapsed time
00:00:00
Status
non active
Calibrate
Zeroes the timer -
helps to keep under
control the time
elapsing during the
stabilization phase.
The instrument measures the concentration of gas applied; wait at least 3 minutes to allow the reading to
stabilize. The reading is shown in line 'Gas measured'.
On site calibration
Sensor O
2
15/01/14
10:00
Is
uA
99.67
Measured gas
%
20.9
Applied gas
%
0
Elapsed time
00:00:00
Status
active
Calibrate
On site calibration
Sensor O
2
15/01/14
10:00
Is
uA
99.67
Measured gas
%
20.9
Applied gas
%
0
Elapsed time
00:00:00
Status
active
Calibrate
OK
On site calibration
Sensor O
2
15/01/14
10:00
Is
uA
99.67
Measured gas
%
20.9
Applied gas
%
0
Elapsed time
00:00:00
Status
not active
Calibrate
OK
OK
