SELFSAT SNIPE 3 User Manual

ENGLISH - 17
F-2

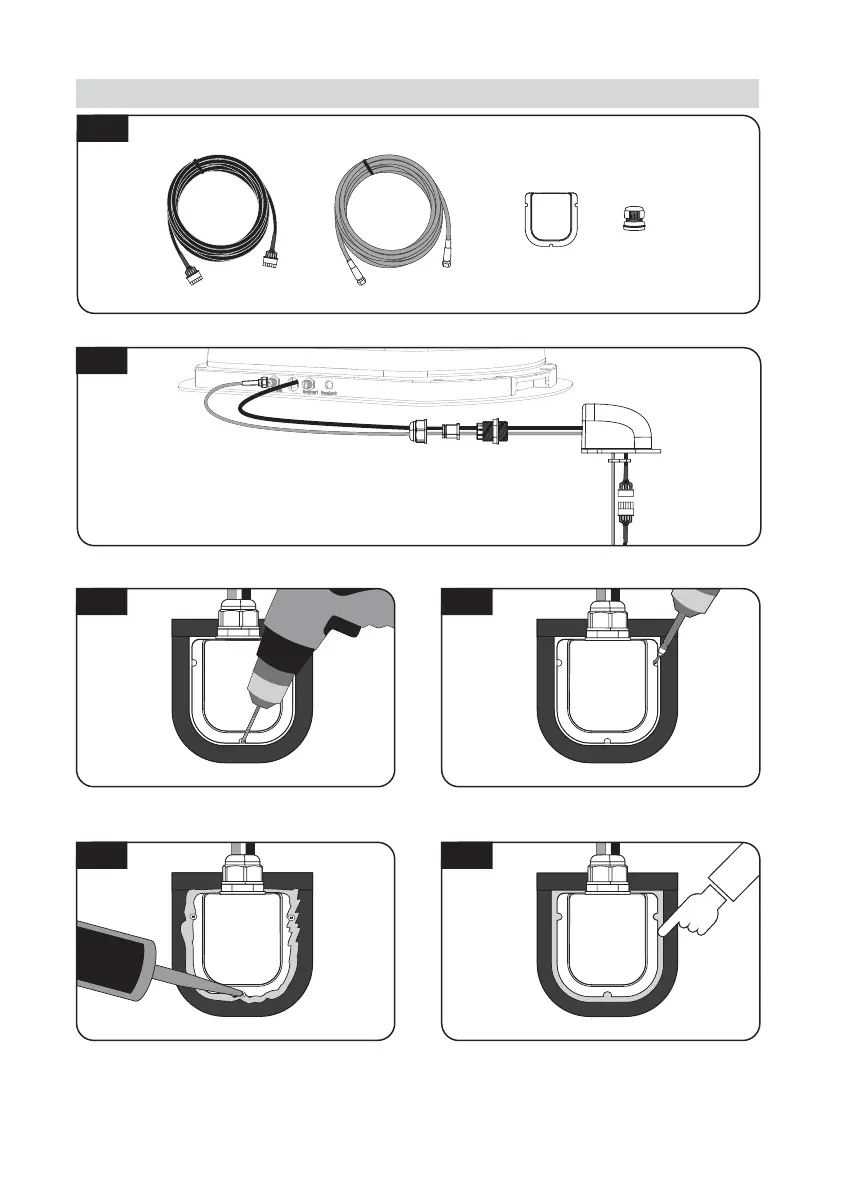

Signal cable, controller cable, cable holder and gland are required
Place the assembled cable holder inside the tape
marking and drill three(3) of 2mm holes
Fix cable holder on the vehicle roof with
three(3) of M4 x 20 screws on drill holes made
F-4F-3
Apply silicone around cable holder and on the
top of screws for waterproof
Connect cables to the ports of the antenna ,
remove masking tape and tidy silicone before
dry
F-6F-5
F-1
Set up required parts as above picture
F. Cable holder installation 2

SELFSAT SNIPE 3 Specifications

General

Frequency Range	10.7 - 12.75 GHz
Polarization	Linear (Horizontal/Vertical)
Azimuth Range	360°
Satellite Systems	DVB-S2, DVB-S
Gain	33.7 dBi @ 12.7 GHz
Power Supply	12 - 24 V DC
LNB Output	1
Temperature Range	-20°C to 60°C
Antenna Type	Flat Panel Antenna
