4.5. Setting of the end positions with setting switch/switch
Note:
Settings with a wired switch are only possible in automatic setting mode.
When connecting the setting switch, consider the following:
Caution! Risk of injury through an electric shock!
Connection only when de-energised!

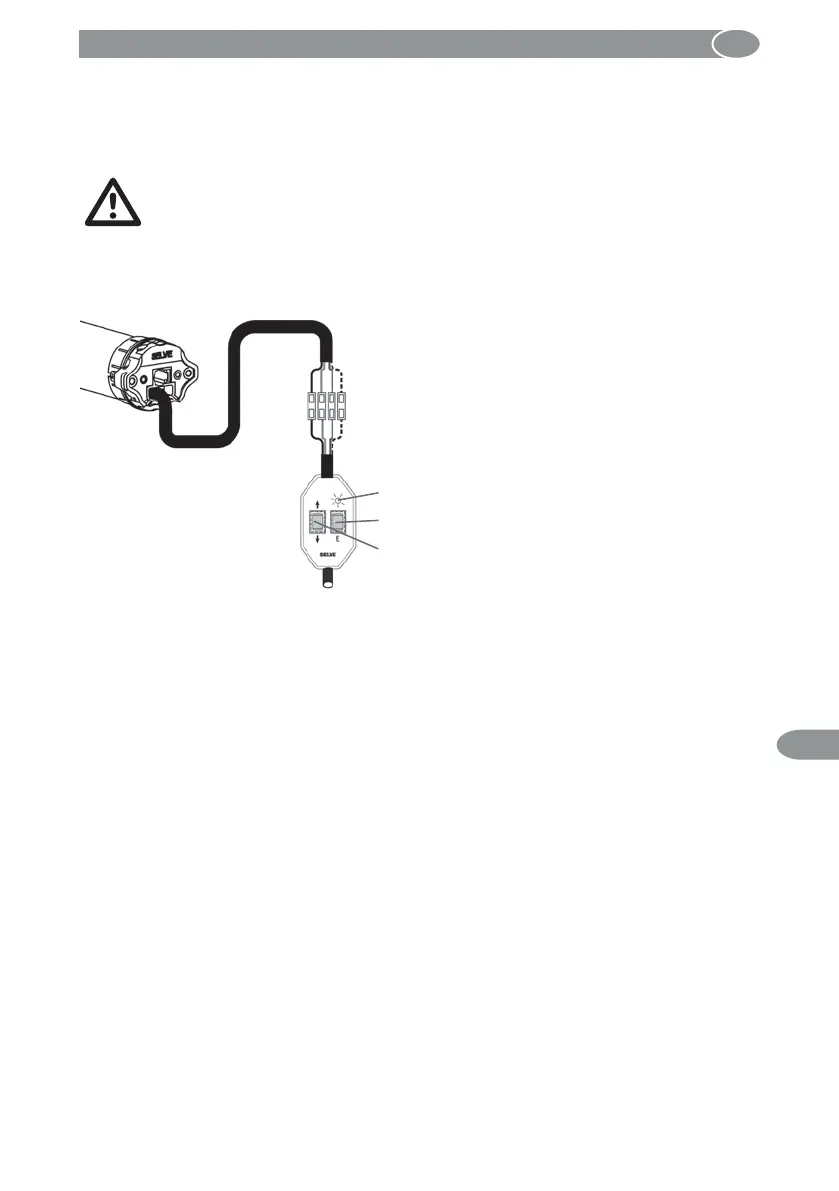

The 4 wires in the setting switch cable must be connected to the motor wiring cable
according to their colours.
SELVE setting switch (item no. 290103)
LED indicates connection in correct phase sequence
Pushbutton E is the setting pushbutton
Pushbutton for moving the motor up and down
UP = brown
DOWN = black
N = blue
PE = yellow-green
Setting of the end positions
Warning!
