ADN Digital Conference System |11
Overview of the components
Components required for setting up a wireless conference system:
• 1 ADN CU1 central unit
• at least 1 ADN-W AM antenna module for operating the wireless conference
units
• ADN-W D1 wireless delegate units (a maximum of 150 delegate units can be
used in a conference system)
• ADN-W C1 wireless chairperson units (optional, for granting speaking privi-
leges, a maximum of 10 chairperson units can be used in a conference system)
• “Conference Manager” software for configuring and controlling conferences
(optional)
– can be run on the central unit (a screen, keyboard, and mouse are required)
or
– can be run on a separate Windows PC with Ethernet connection
Component required for audio recording of conferences (optional):
•U
S
B mass storage device (e.g. external hard disk)
ADN C1 and ADN D1 wired conference units and ADN-W C1 and ADN-W D1
wireless conference units can be combined arbitrarily as long as you ensure
correct set-up and cabling and comply with the specifications (a conference
system can comprise a total of 400 conference units of which up to 150 can
be wireless, see page 56).

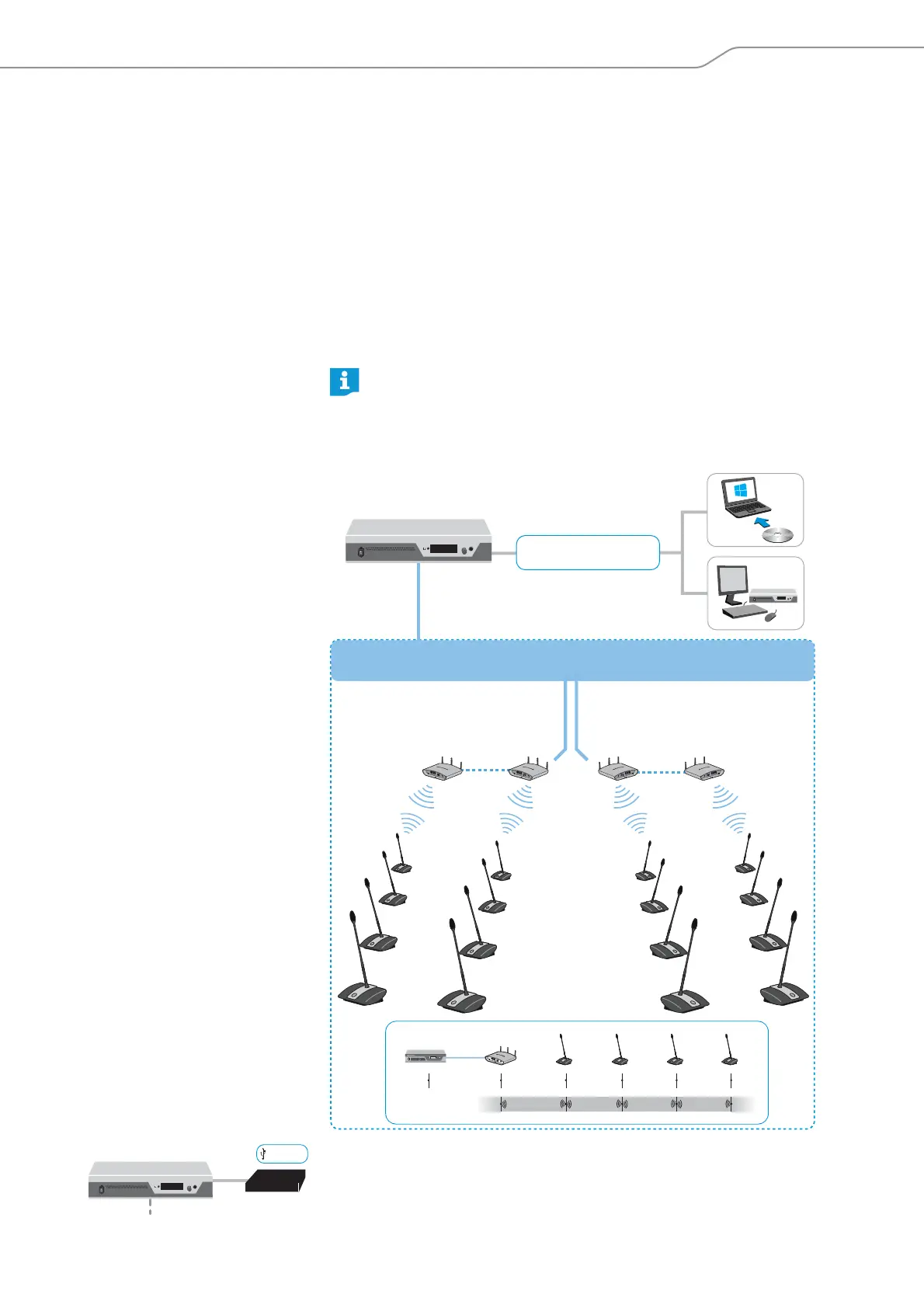

ADN CU1
max. 150 conference units per CU1
max. 75 conference units per antenna module
75
...
max. 50 m
ADN CU1 ADN-W AM
> 1 m
> 0,5 m
> 0,5 m
> 0,5 m
ADN-W AM
3214
PORT II
PORT I
“Conference Manager“
software
