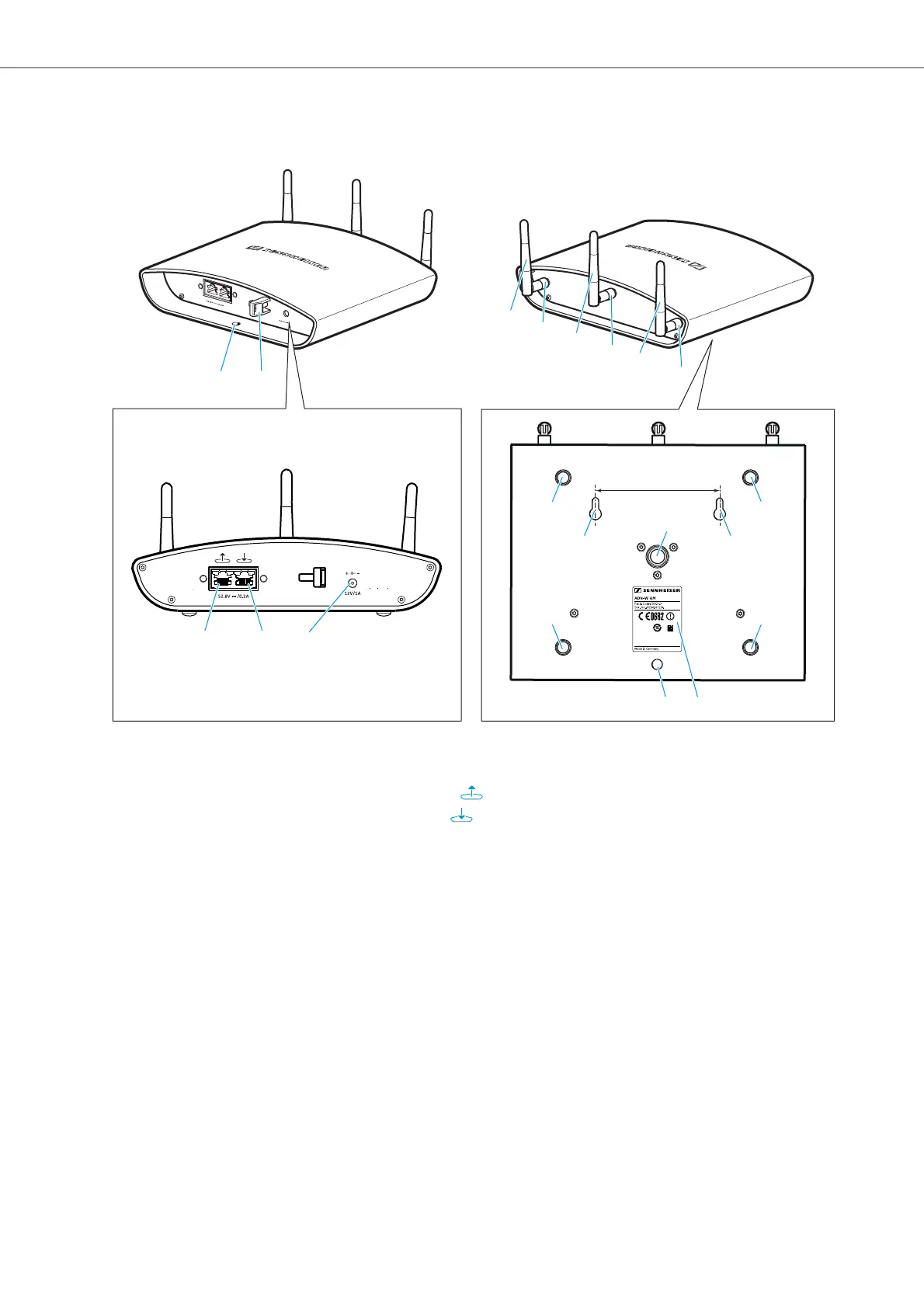

ADN-W AM antenna module
7
7
7
6
6
6
95 mm
543
9
8
12
8
1 A
::
::
Hole for safety wire
Cable grip
Output socket
Input socket
Hollow jack socket for connection of
optional NT 12-50C power supply
Antennas
Antenna coupling ring
Mounting holes for wall mounting
5/8" mounting thread
with 3/8" thread insert
Rubber feet
Type plate
1
2
3
4
5
6
7
8
9
>
A
