Setting up a wireless conference system
Basic requirements for a conference system comprising wireless conference units
The ADN-W C1 and ADN-W D1 wireless conference uni
ts connect wirelessly to the
ADN-W AM antenna module, which is connected to the ADN CU1 central unit via a
system cable. The ADN-W AM antenna module can manage up to 75 wireless con-
ference units. The battery-powered wireless conference units are easy to use and
offer a high degree of flexibility. If the power supplied to the antenna module via
the system cable is not sufficient, you have to power the antenna module using the
NT 12-50C power supply.
Wireless conference system

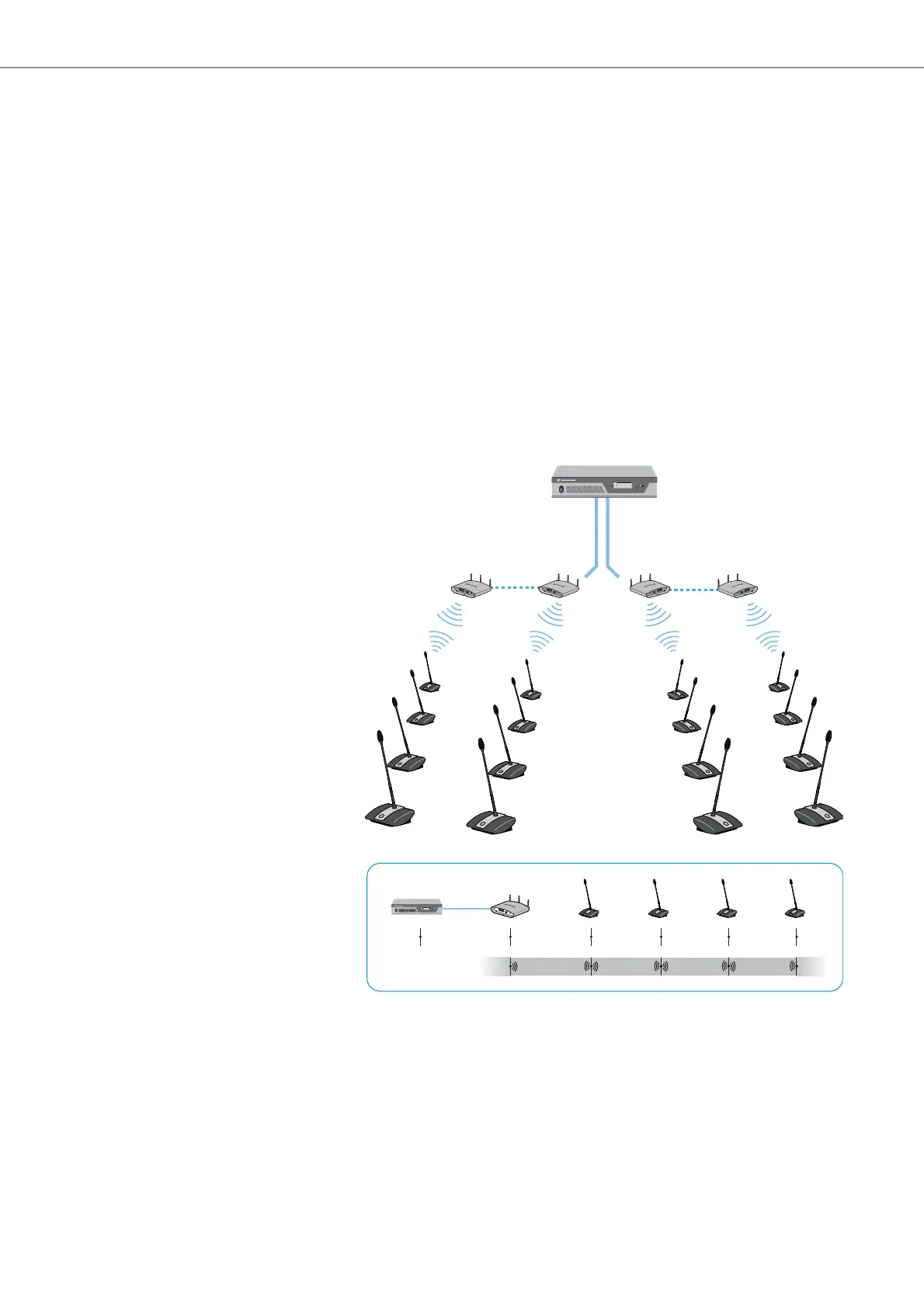

For setting up a wireless conference system (up
to wireless 150 conference units
can be used), you require one ADN CU1 central unit for controlling the conference
and at least one ADN-W AM antenna module for operating the
wireless conference
units (range approx. 30 m).
ADN-W AM
3214
max. 150 conference units per CU1
max. 75 conference units per antenna module
75
...
max. 50 m
ADN CU1 ADN-W AM
> 1 m
> 0,5 m
> 0,5 m
> 0,5 m
PORT II
PORT I
