Sennheiser ADN CU1 - ADN-W CASE Transport and Charging Case

Overview of the components
26 | ADN Digital Conference System

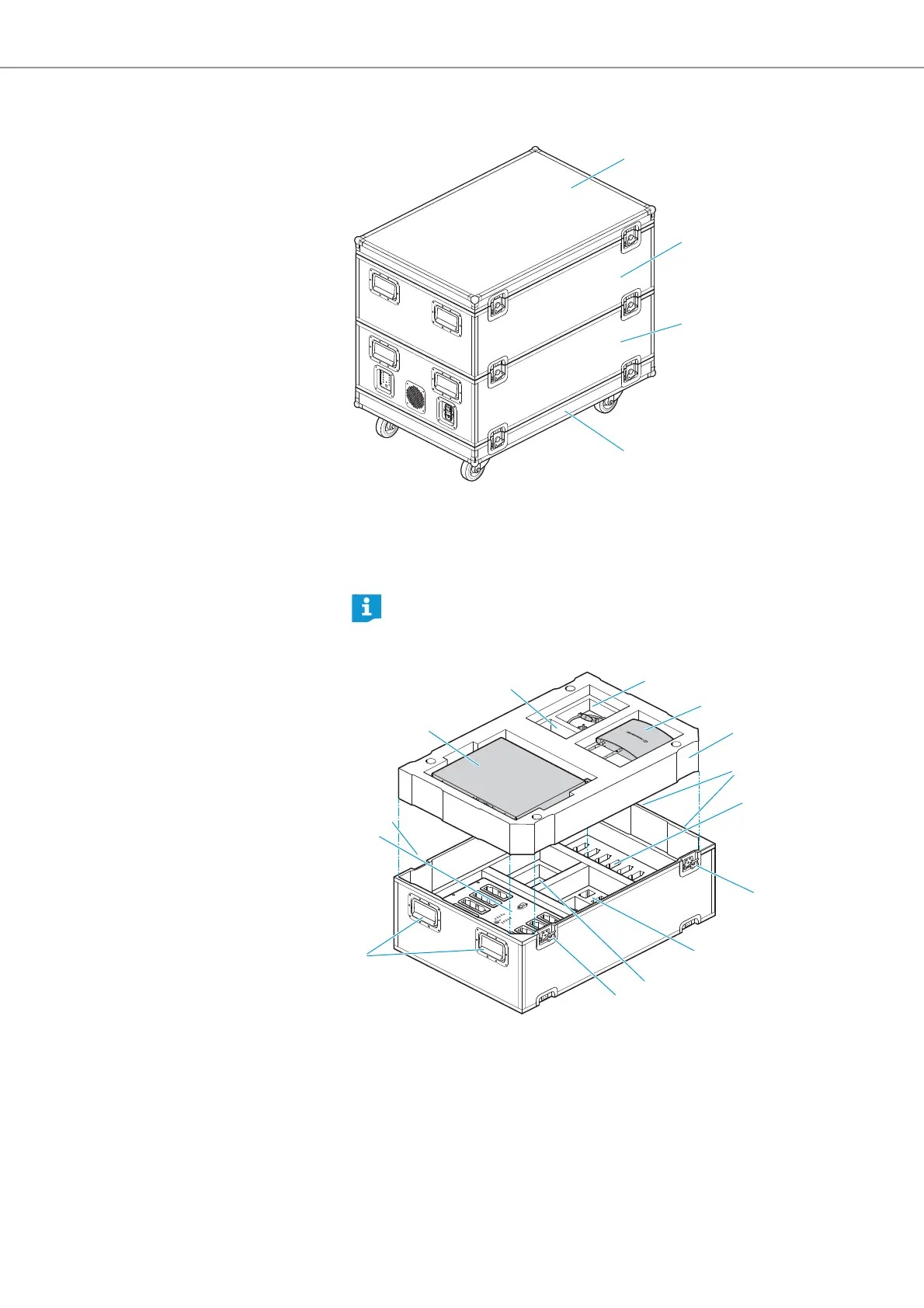

ADN-W CASE transport and charging case
1
ADN-W CASE CENTRAL transport case,
ADN-W CASE BASE case lid
ADN-W CASE CENTRAL transport case
for central unit, antenna module, ADN-
W L 10 charger, power supplies, mains
cables and other accessories
ADN-W CASE UNITS charging case
with charging compartments for
10 wireless conference units
ADN-W CASE BASE case bottom
with wheels
The modules can be used separately or be combined arbitrarily (see page 227).
1
2
3
4
1
2
3
4
Compartment for ADN CU1 central unit
Compartment for one NT 12-50C power
supply
Compartment for cables and accessories
Compartment for ADN-W AM antenna
module
Intermediate bottom (foam)
Compartments for 10 ADN-W BA battery
packs
Butterfly locks
Compartments for 10
NT 12-50C power supplies
without mains cables
Compartment for 10 mains
cables for NT 12-50C and
accessories
Carrying handles, foldable
Compartment for ADN-W L 10
charger
1
A
2
3
4
6
7
7
7
8
9
<
<
5
1
2
3
4
5
6
7
8
9
0
A
