ADN Digital Conference System |25
Overview of the components

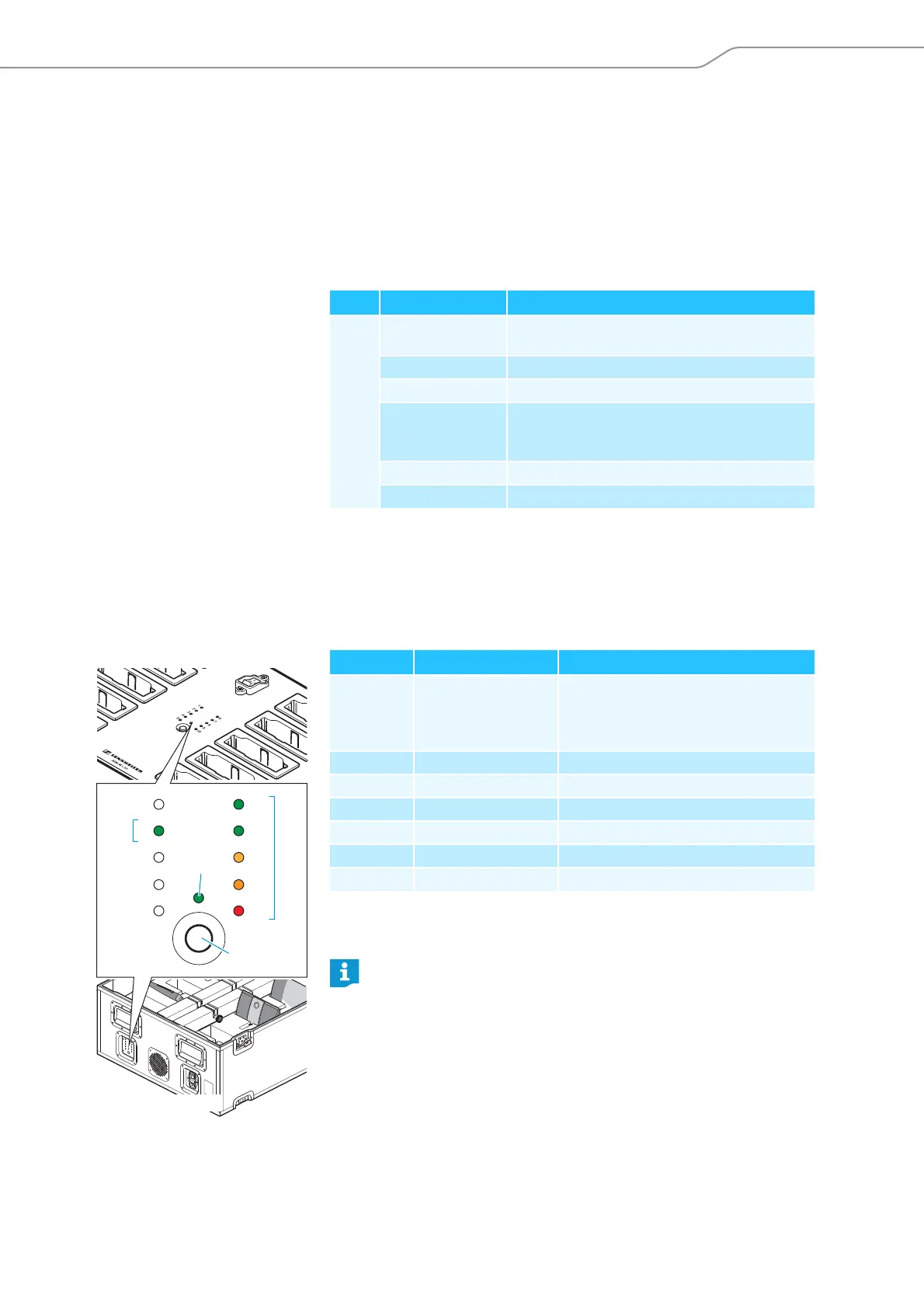

Overview of the status display of the ADN-W L 10 and ADN-W CASE UNITS
The status display for charging process
consists of 10 LEDs. The button
allows you to switch between two charge status indications to view the obtained
capacity:
1. Overall monitoring
2. Individual compartment monitoring (charging compartments 1 to 10 can be
selected one after the other)
Overall monitoring Each LED is assigned to a charging compartment.
Individual compartment monitoring To select the charging compartments 1 to 10 one after the other:
왘 Press the button .
The LED
(1-1
0) of the selected charging compartment (1-10) lights up green (see
diagram as an example for charging compartment 2 ). The adjacent LED strip
comprising 5 LEDs displays the charge status in detail (see diagram as an example
for a fully charged battery pack ).
5 seconds after the last button press, the status display switches back from indi-
vidual compartment monitoring to overall monitoring.
LED
Color Capacity obtained
1-10 – Standby operation; no battery pack inserted or no
connection to the mains power supply
red approx. 0-19%
orange approx. 20-94%
green approx. 95-100%
Typical charging time is 4 hours with subsequent
continuous capacity monitoring
red, flashing rapidly Battery pack’s temperature is too high
red, flashing slowly Battery pack is defective
4
A
B
1
2
3
4
5
6
7
8
9
10
2
3
ADN-W L 10
ADN-W CASE UNITS
LED
Color Capacity obtained
1 or 6 green approx. 80-100%
Typical charging time is 4 hours with
subsequent continuous capacity
monitoring
2 or 7 green approx. 60-79%
3 or 8 orange approx. 40-59%
4 or 9 orange approx. 20-39%
5 or 10 red approx. 0-19%
5 or 10 red, flashing rapidly Battery pack’s temperature is too high
5 or 10 red, flashing slowly Battery pack is defective
The labeling of the LEDs is only available on the ADN-W L 10 charger.
