Overview of the components
24 | ADN Digital Conference System

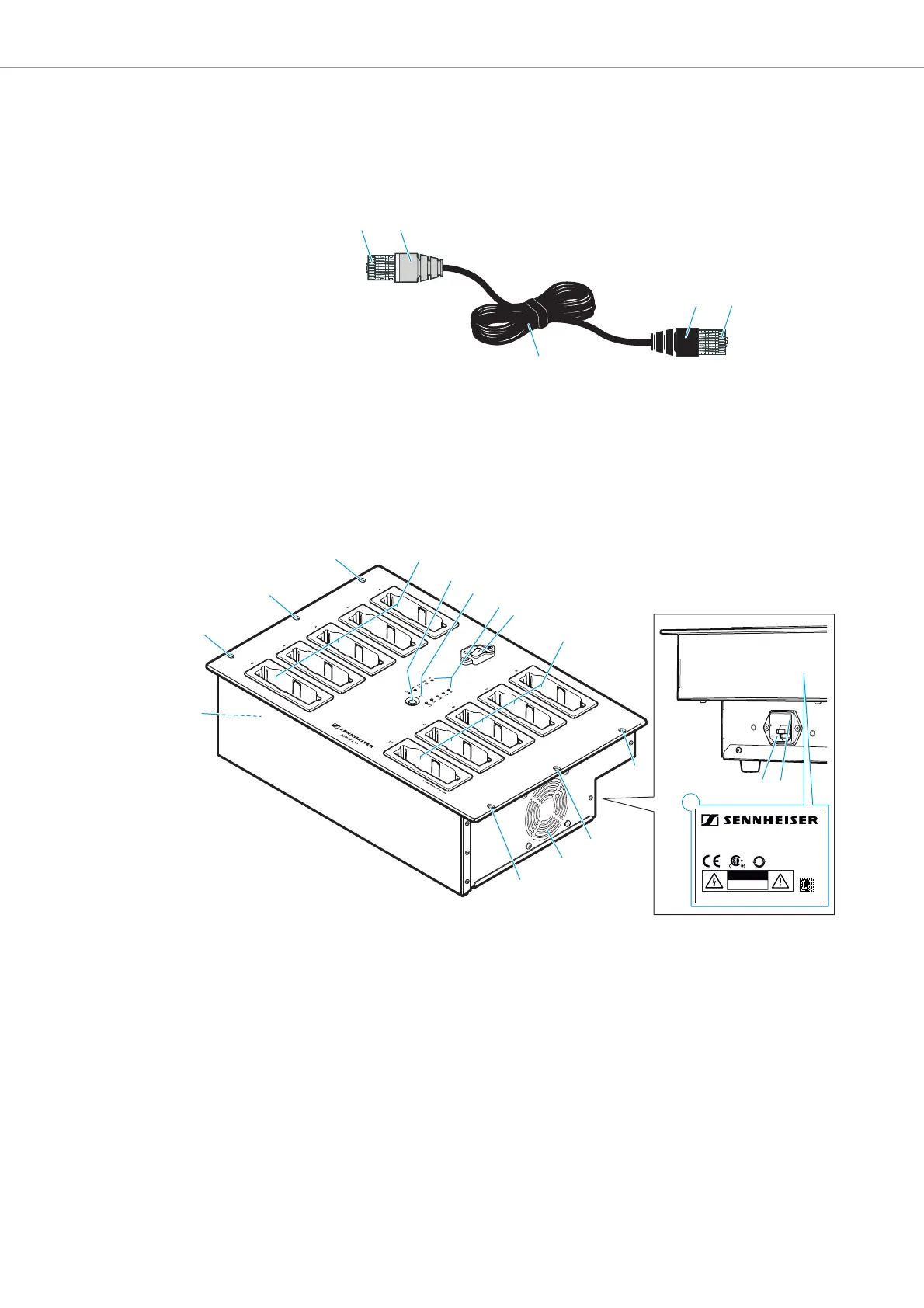

SDC CBL RJ-45 system cables
The system cables transmit the digital audio and status information and supply
power to the conference units and to the antenna module.
Do not use unshielded Cat5 cable (26 AWG)!
Shie
lded RJ 45 modular plug, Cat5(e)
Gray cable booth with clip protector
Round STP cable, cat 5(e), 24AWG, black
Black cable booth with clip protector
ADN-W L 10 charger
P
R
P
Q
S
P
Q
R
S
4
6
7
6
6
6
7
6
6
3
2
1
1
8
9
<
5
ADN-W L 10
MADE IN GERMANY
Art.-No.: 504749 Ser.-No.: XXXXXXXXXX
~100-240V, 50/60Hz Max. Power Consumption: 250 W
15
CAUTION / AVIS
RISK OF ELECTRIC SHOCK - DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE - NE PAS OUVRIR
Charging compartments for
10 ADN-W BA battery packs
Button for charge status indication
Operation indicator, green
Status display for charging process
On/off switch
Mounting holes for mounting the
charger into a 19" rack
Fans
Mains socket
Mains fuse
Type plate and hazard warnings
1
2
3
4
5
6
7
8
9
<
