Transporting the wireless components
228 | ADN Digital Conference System

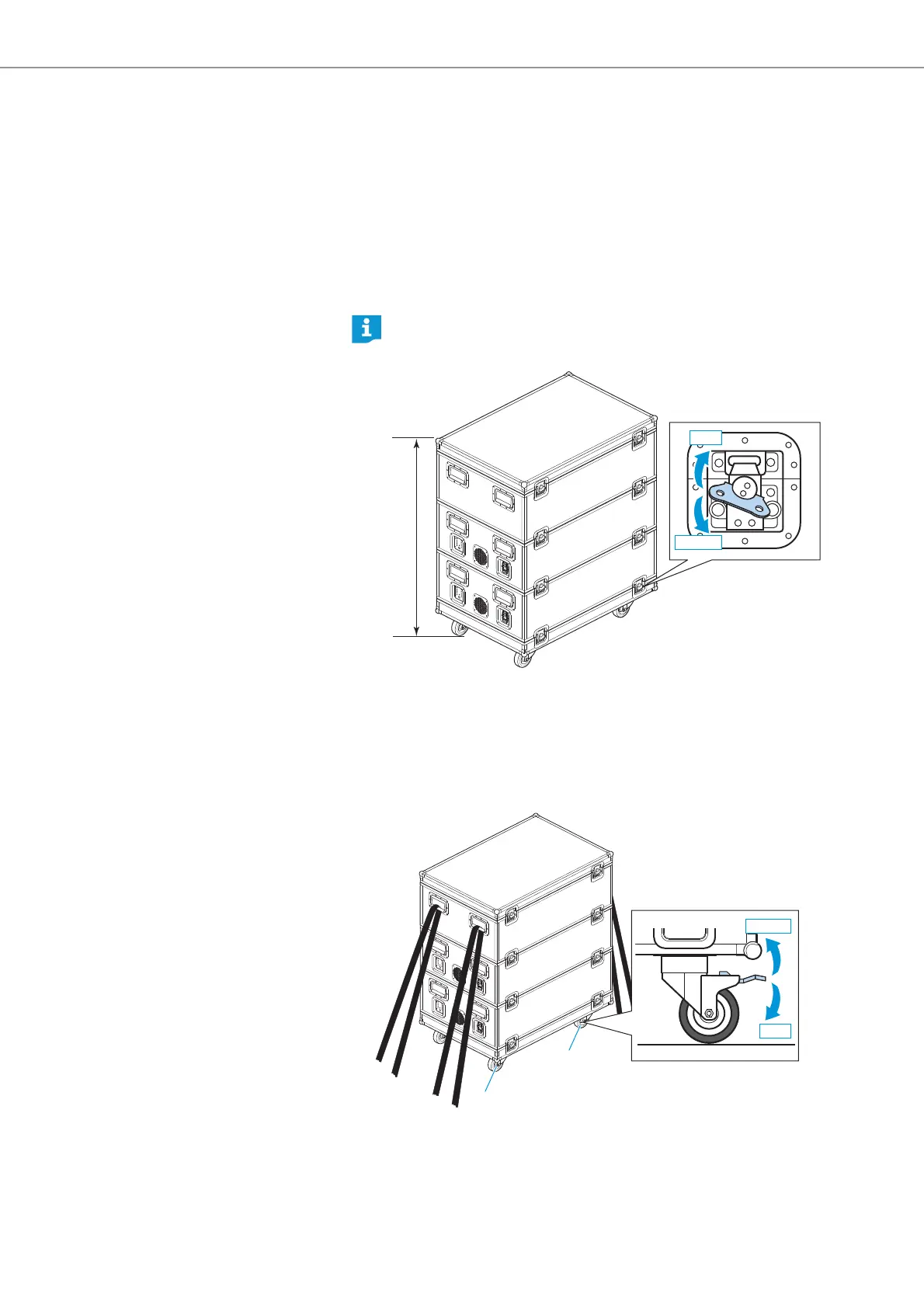

To stack the modules of the transport and charging case:
왘 Open the butterfly locks of the lower module.
왘 With the assistance of at least a second person, lift the next module using the
fol
d
able carrying handles and place it on the lower module so that the alumi-
num profiles of the modules engage with each other.
왘 Re-engage the 4 butterfly locks of the
two modules and turn the butterfly fas-
tener clockwise.
왘 Only stack the other modules up to a height
of
1.2 m. This height corresponds
to 3 ADN-W CASE UNITS or ADN-W CASE CENTRAL modules plus the ADN-W
CASE BASE case bottom and lid.
To secure the transport and charging case against inadvertent rolling:
왘 Push the locking lever of the casters of the ADN-W
CASE BASE case bottom
– downwards to lock the casters or
– upwards to unlock the casters.
왘 If necessary, secure the transport and charging case b
y means of securing
straps that can be attached to the carrying handles.
The butterfly locks can be locked with a small U-lock to prevent inadvertent
opening of the modules.
Maximum
height
1.2 m
Unlock
Lock
3
3
Unlock
Lock
