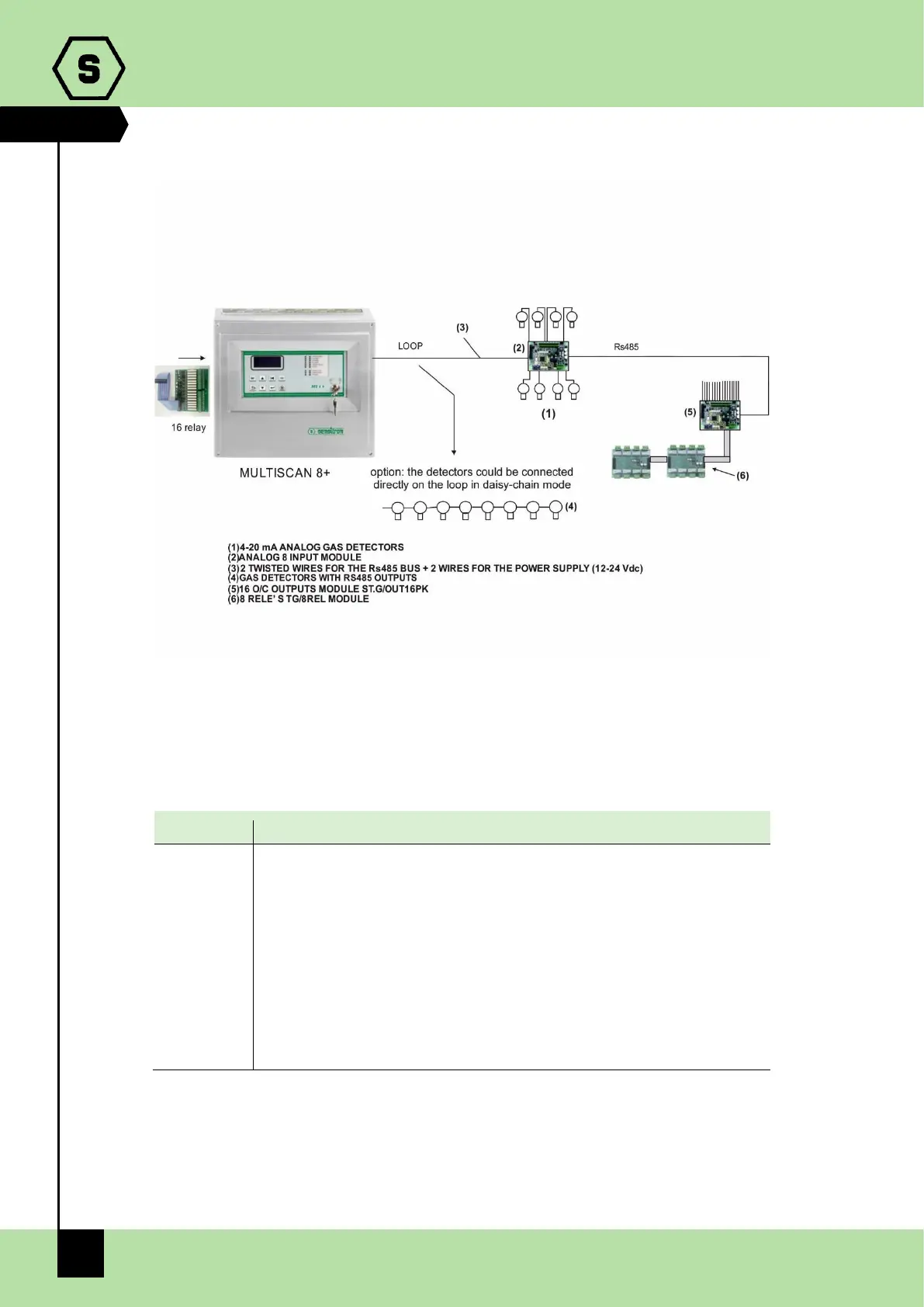

1.1 Block diagram
Fig. 1.1) System block outline
1.2 Central unit ordering codes
Table 2: Ordering codes for Multiscan 8+ control panel
MULTISCAN 8+ gas control panel.
8 Analog 4-20mA inputs and 6 relay outputs on-board the panel.
1 x RS485 type open bus line to connect additional 8 detectors through
remote 8-input module or addressable gas detectors daisy chained to the
RS485 bus.
6 relay outputs and additional 16 relays via the dedicated STS/16REL card
or via remote modules.
The panel comes complete with 1 RS232 serial port for PC connection.
Housed in ABS box
