2.3 STG/IN8-S remote input modules
STG/IN8-S remote modules are field mounted and connected to the central unit via
RS485 buses. They are used to connect 8 x 4-20mA analogue gas detectors. Each module
must be addressed using the rotary switches on the PCB. The address must be univocal
and between 1 and 255 (1-247 for Modbus protocol). See the summary table in para. X
for the maximum number of connectable modules to the central unit. 1) INTRODUCTION

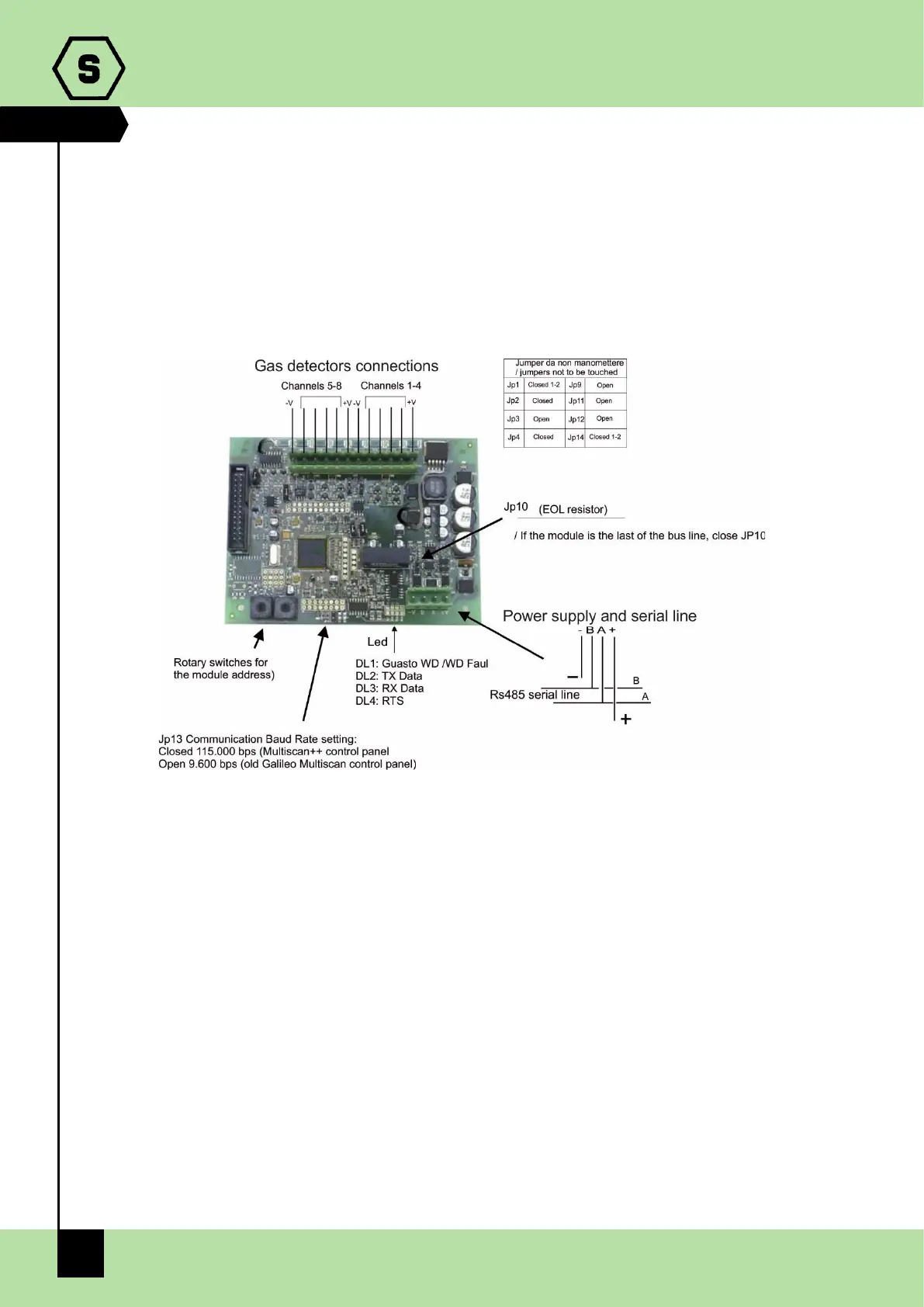

Fig. 2.3) ST.G/IN8-S module
2.4 STG/OUT16-S remote output modules
STG/OUT16-S remote modules are field mounted and connected to the central unit via
RS485 buses. They provide 16 Open Collector outputs (negative switch) with a
programmable function for the remote activation of sirens, solenoid valves, relays, etc.
Up to 2 8-relay boards can be connected to each STG/OUT16-S module, transforming
the output from Open Collector to a voltage-free exchange contact.
See the summary table in para. X for the maximum number of connectable modules to
the central unit. 1) INTRODUCTION
Each module must be addressed using the rotary switches on the PCB. The address must
be univocal and between 1 and 255 (1-247 for the Modbus protocol).
