Sensitron MULTISCAN 8+ - Optional Relay Board; 16-Relay Board Layout and Functionality

MT4221 Rev3
20/05/2020
42
Instruction Manual Multiscan 8+
ENGLISH

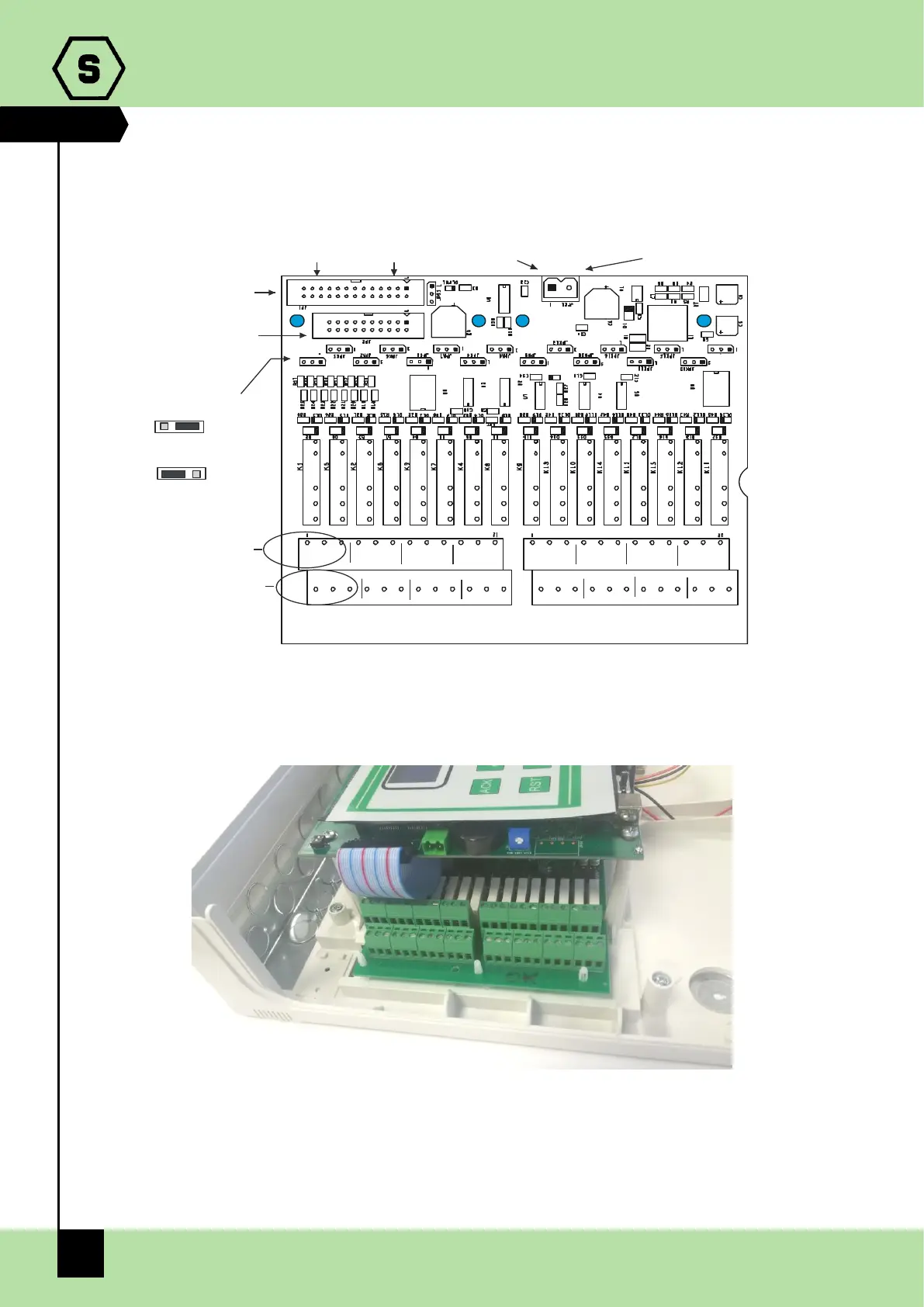

2.1.4 16-relay board layout (optional)
Fig. 2.1.4 a) 16-relay card layout
Fig. 2.1.4 b) 16 relay card positioning
FOR MULTISCAN 8+
CONTROL PANEL
FOR Pl4+ CONTROL
PANEL (PL4/ESP
BOARD REQUIRED)
CONNECTORS
JUMPER FOR
NORMALLY ENERGIZED
OR
NORMALLY NOT ENERGIZED
RELAY
RELAY
1
16
1 8 9
16
R1
C NC NO
R2
C NC NO
R4
R8
R10
R14
R15R11R7
R3
C NC NO C NC NO
C NC NO C NC NO
+ -
12Vdc POWER SUPPLY
SOLO CENTR. Pl4+ / ONLY Pl4+ PANEL
LAYOUT
