Appendix A Connector Pinouts Io
SENSOR
92
SMT-200 Operations and Technical Manual 2.00/R1

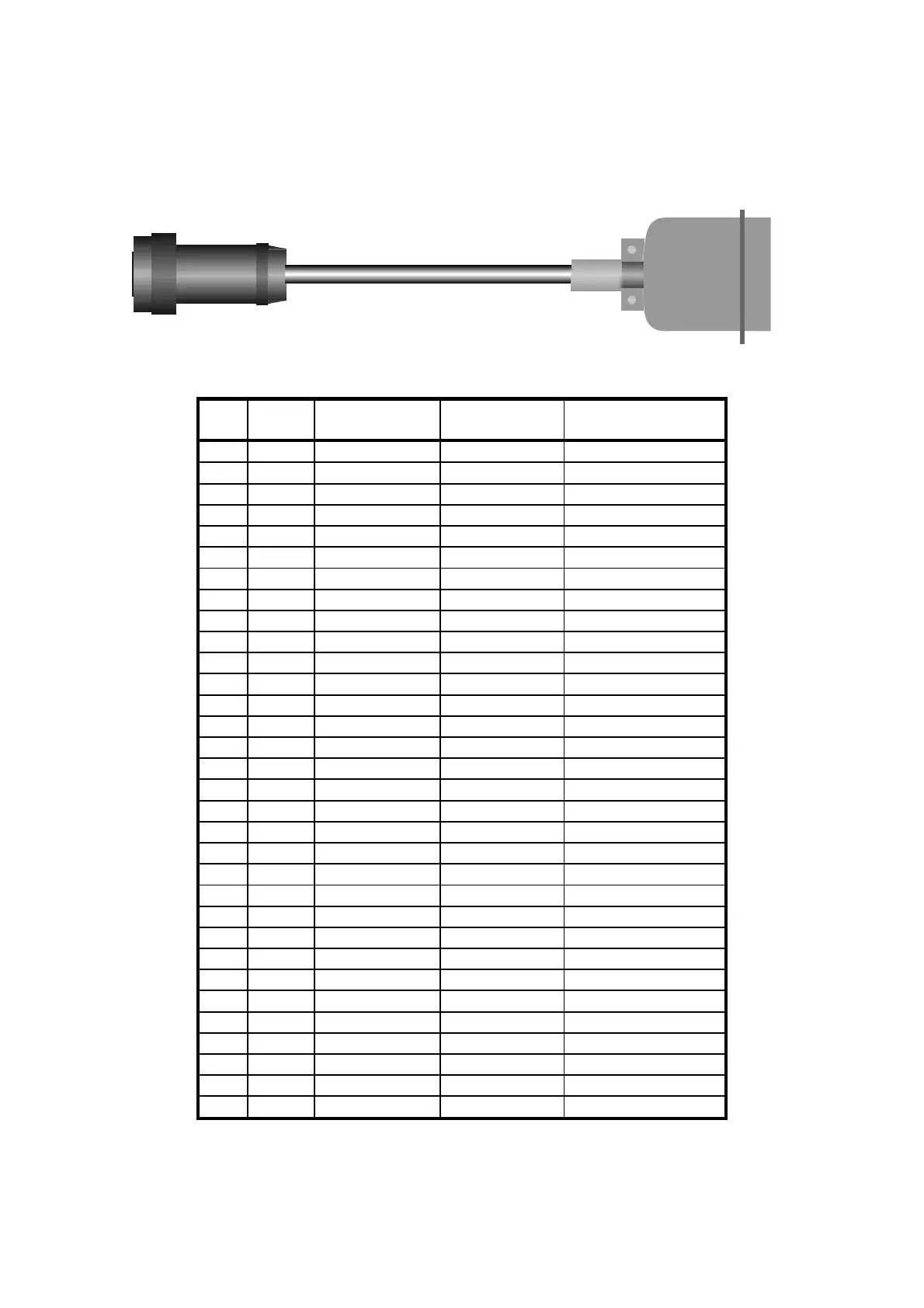

A.6 SMT-200 to Docking Station Cable
Bendix
Pin
Centronics
Pin
Signal Name SMT-200
PCB connect
Wire Colour
A
1 Charger V+ 1 Red
A
13 Charger V+ 2 Purple
B
2 Charger V+ 3 Black
B
14 Charger V+ 4 Blue
- - Battery V+ 5 -
- - Battery V+ 6 -
- - Battery V- 7 -
- - Battery V- 8 -
C
4 Geo - 9 Grey
D
16 Geo + 10 Pink
E
5 Geo LK 11 Yellow
F
17 Geo SHL 12 Green
G
6 Smartec EXT 13 White/Yellow
H
18 Smartec V+ 14 White/Red
J
7 Smartec GND 15 White/Black
K
19 ON / OFF 16 Red/Blue
- 8 & 3 Shield (Case) 17 Shield
L
20 DCD 18 Grey/Green
M
9 DSR 19 Grey/Pink
N
21 RXD 20 Brown/Blue
P
10 RTS 21 Brown/Yellow
R
22 TXD 22 Brown/Red
S
11 CTS 23 Brown/Pink
T
23 DTR 24 Brown/Green
U
12 RI 25 Brown/Black
V
24 SG 26 Brown/Grey
- - (unused) - Brown
- - (unused) - White
- - (unused) - White/Grey
- - (unused) - White/Pink
- - (unused) - White/Green
- - (unused) - White/Blue
Bendix Connector
Centronix Connector
