2.5 Battery level
Battery charge condition is monitored and displayed as a bar graph indicator, which is visible in the Main
menu, Do a test and Diagnostics Battery test screens. It provides the user with a guide of the remaining
operational time of the SMT-200 with the attached battery pack.

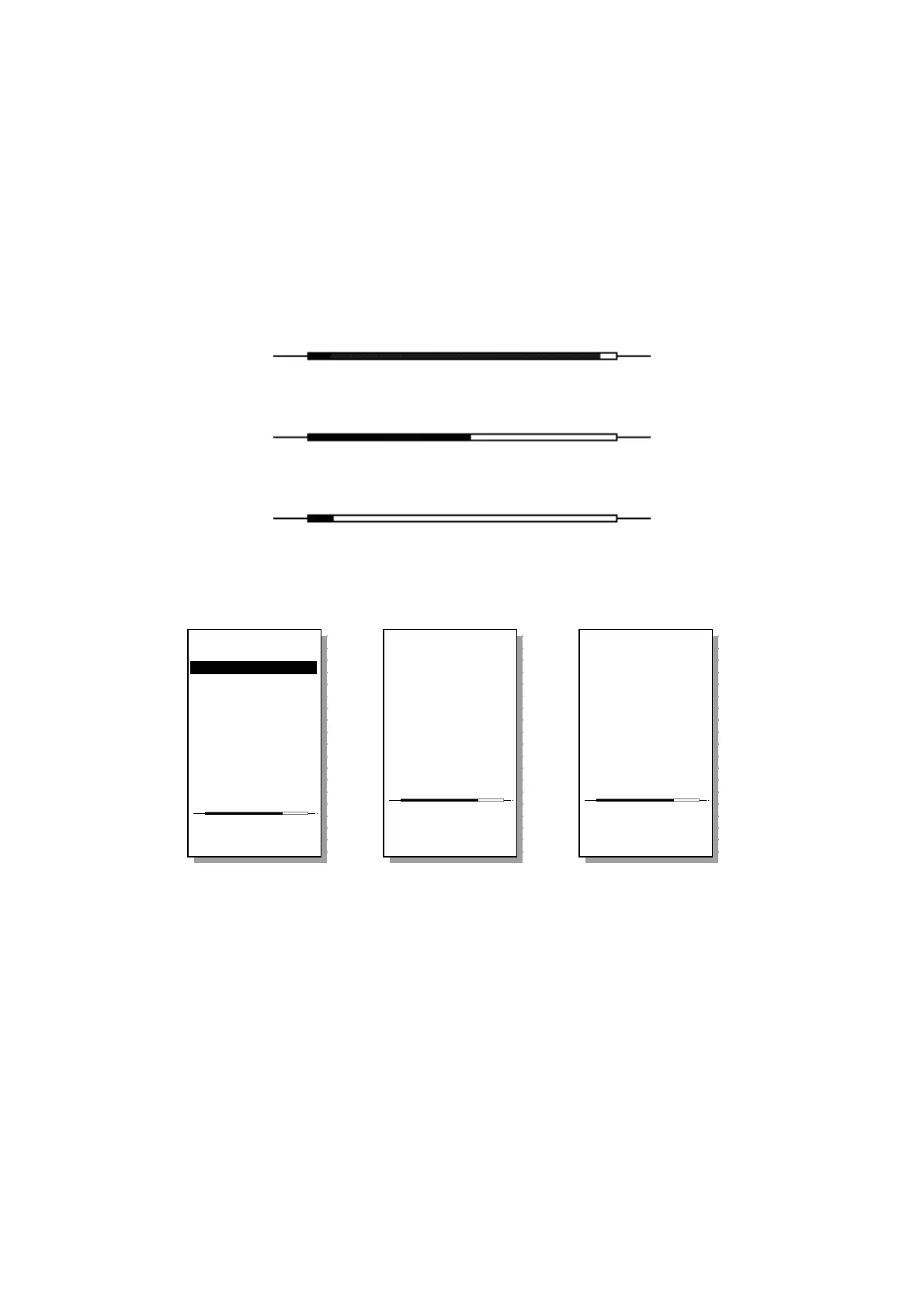

Bar Graph Indicator of battery status:
Battery almost full
Battery half-full
Battery almost empty
Screens where the Battery Status Monitor is Displayed:
Main menu
----------------
1>Do a test...
2 Setup menu...
3 Temp. menu...
4 File menu...
5 Tag menu...
6 About...
0 Shut down
Enter test mode
--Test results--
No. 1
Temp 20.0 °C
Pol 1
Leak 1401 Mohm
Res 382 ohm
Freq 9.91 Hz
Damp 0.259
Sens 28.7 V/m/s
Dist 0.04 %
Imp 2205 ohm
Test OK
0 Back to Main
- Repeat Test
Start next Test
String Config.
----------------
[Sensor-SM4]
Temp [20.0 °C]
Series [1]
Parallel [1]
Not shunted
Next# [1 A]
Estimated space:
3276 Records
0 Back to Main
- Repeat Test
Start next Test
