3 Docking Station & PC Software Operations
SMT-200 Operations and Technical Manual 2.00/R1
37
3.1 Docking Station overview
The Docking station has two main functions:
• Battery charging.
• Interfaces SMT-200 to PC for data exchange and software updates.

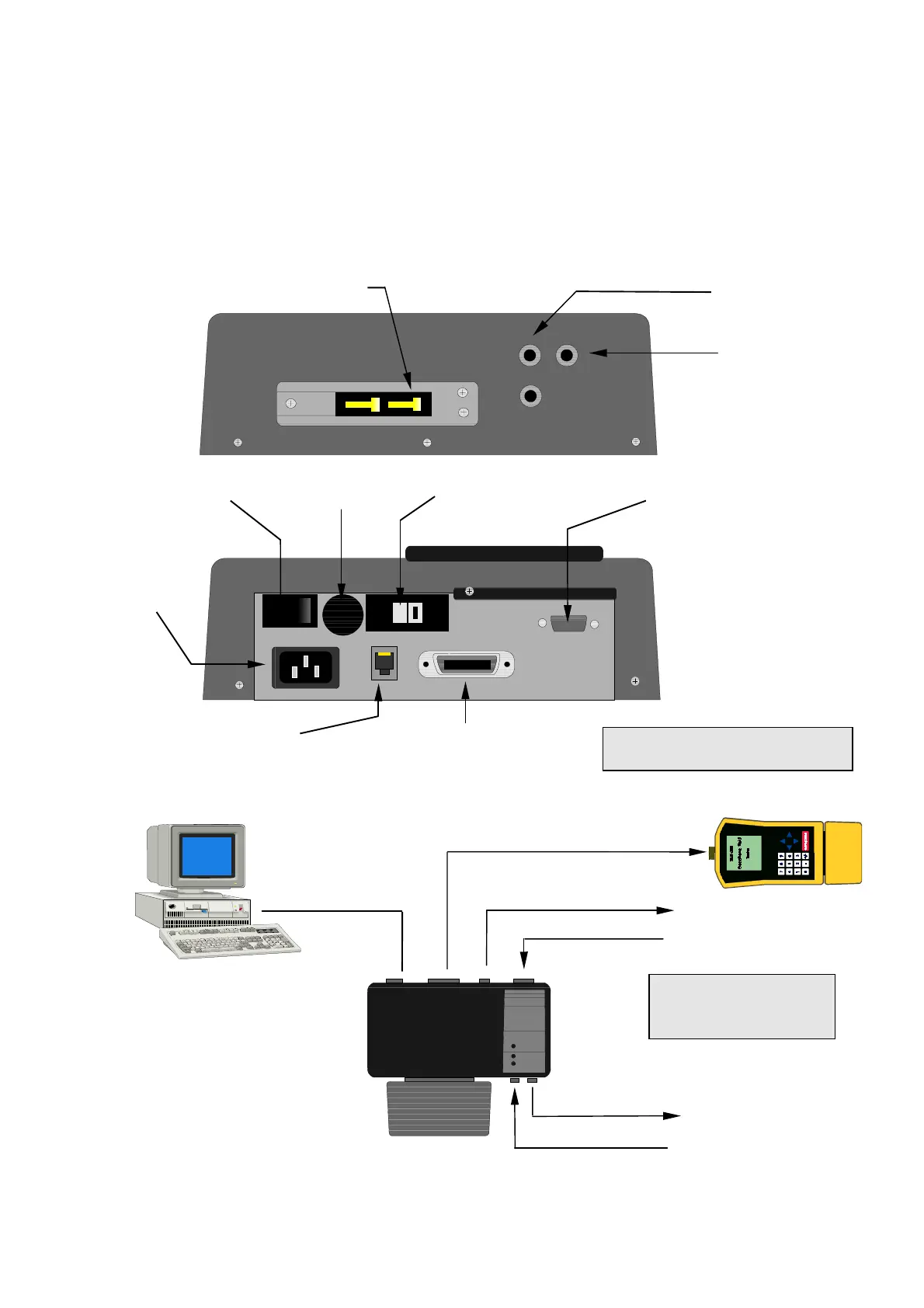

3.2 Docking Station interconnection
NOTE: Early DS versions had
two additional connectors.
Charging connector for spare battery
Geophone
Terminals
Leakage
Probe
Terminals
Front View
Fuse
On/Off Switch Voltage Selector
110 / 220 V
PC RS232 Connector
Mains
Connector
Ext. Smartec Connector SMT200 Connector
Rear View
220V or 110V Supply
2x Geophone Test
Leakage Probe
Ext. Smartec Probe
NOTE: Switching
between 110V & 230V
must be done manually
Spare Battery
Serial cable D9-D9
SMT-200 to Docking Station
Mains Cable
