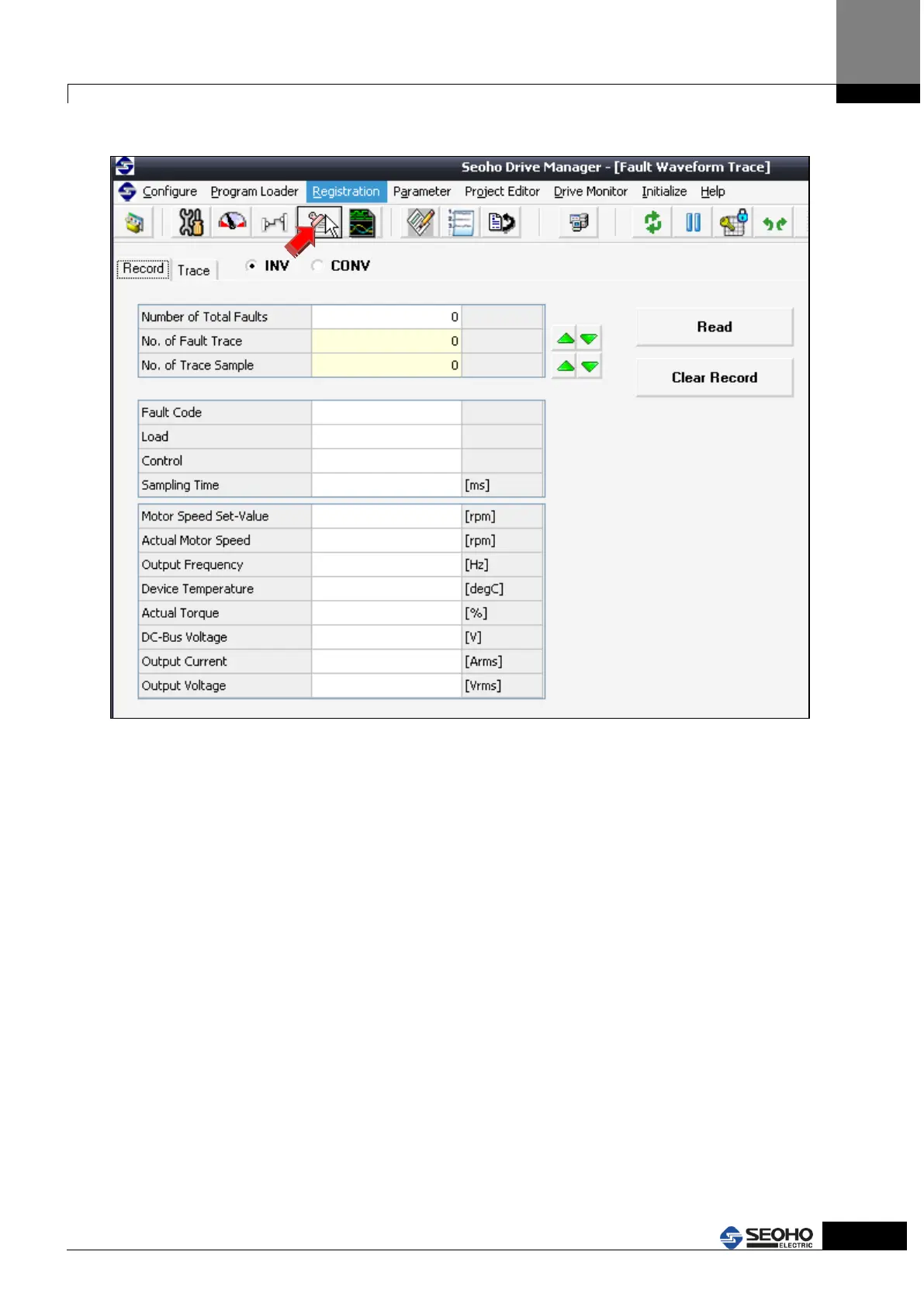

Figure 6.13 Fault Record Monitoring
If you want to see fault history, are able to use this function. The fault recording function
can save 9 times fault maximum. The fault recorder is configured with FIFO. Therefore the
last 10th information cannot find in this recorder. The fault recorder can re-construct with
the output frequency, output current, DC-Link voltages etc before 1second from the fault
time.
