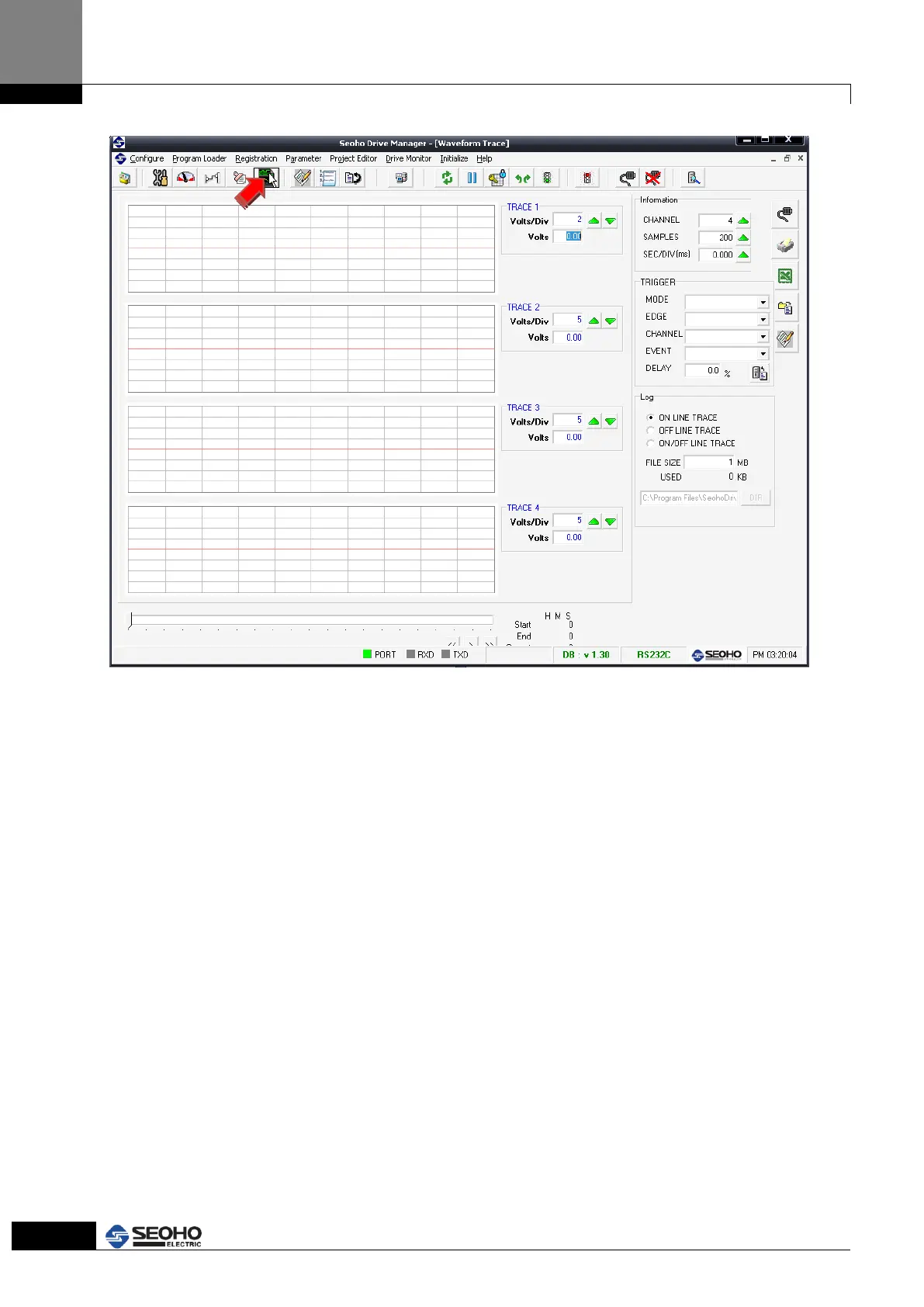

Figure 6.14 Waveform trace window
This function can use as if it is oscilloscope. Maximum 4channel is available also have
trigger function and can store to the hard disk drives with every waveforms.
[Usage]
1) Choosing of the parameter.
2) Selection of the number of channel.
3) Decision of the scaling and sampling time.
4) Selection of the trigger mode.
