LISST-200X User’s Manual Appendix E: Connector Pinouts for LISST-200X Page 109

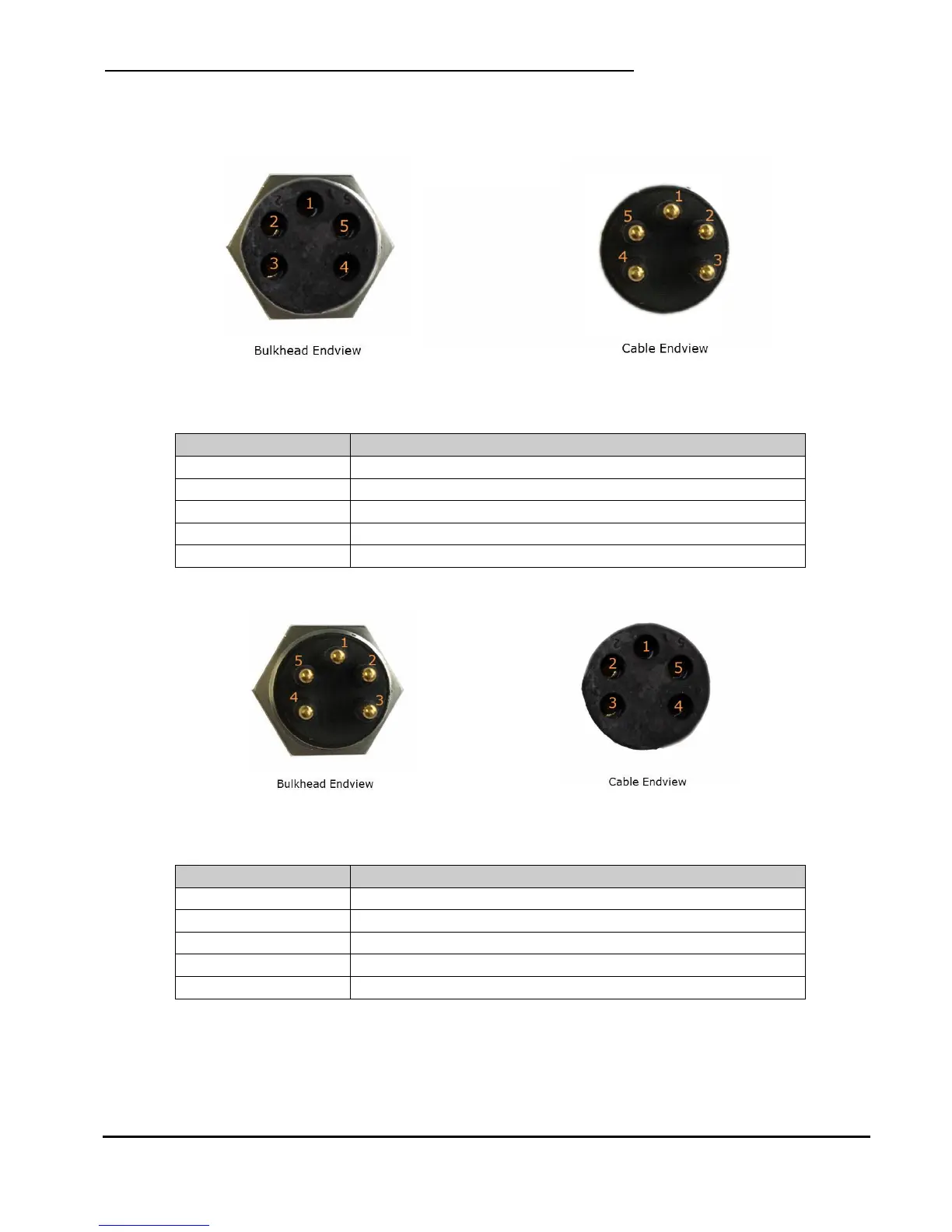

Large and Small External Battery Connectors (5 pin connectors)
Connector Manufacturer: Teledyne Impulse, San Diego, CA, USA
Connector Part Number (Bulkhead): MCBH (WB)-5-MP Stainless Steel
Mating Cable Part Number: MCIL-5-FS
To LISST Connector (5-pin Female Bulkhead)
Connector Pin #
Use
1
Ground
2
Battery Power Out (+9V nom. 6-15V)
3
Ground
4
Serial Out (to DB-9 Pin 2)
5
Serial In (to DB-9 Pin 3)
To PC Connector ( 5-pin Male Bulkhead)
Connector Pin #
Use
1
No Connection
2
No Connection
3
Ground
4
Serial Out (to DB-9 Pin 2)
5
Serial In (to DB-9 Pin 3)
