LISST-200X User’s Manual LISST-200X Operation Details Page 48
• Pull out the connector endcap. There are no wires or
other connections. Set the endcap to the side.
• Remove the batteries making note of their orientation.
• Insert the batteries into the pressure case. Labels on
the inside surface of the center divider will guide you
on the correct orientation of the batteries for each
stack.

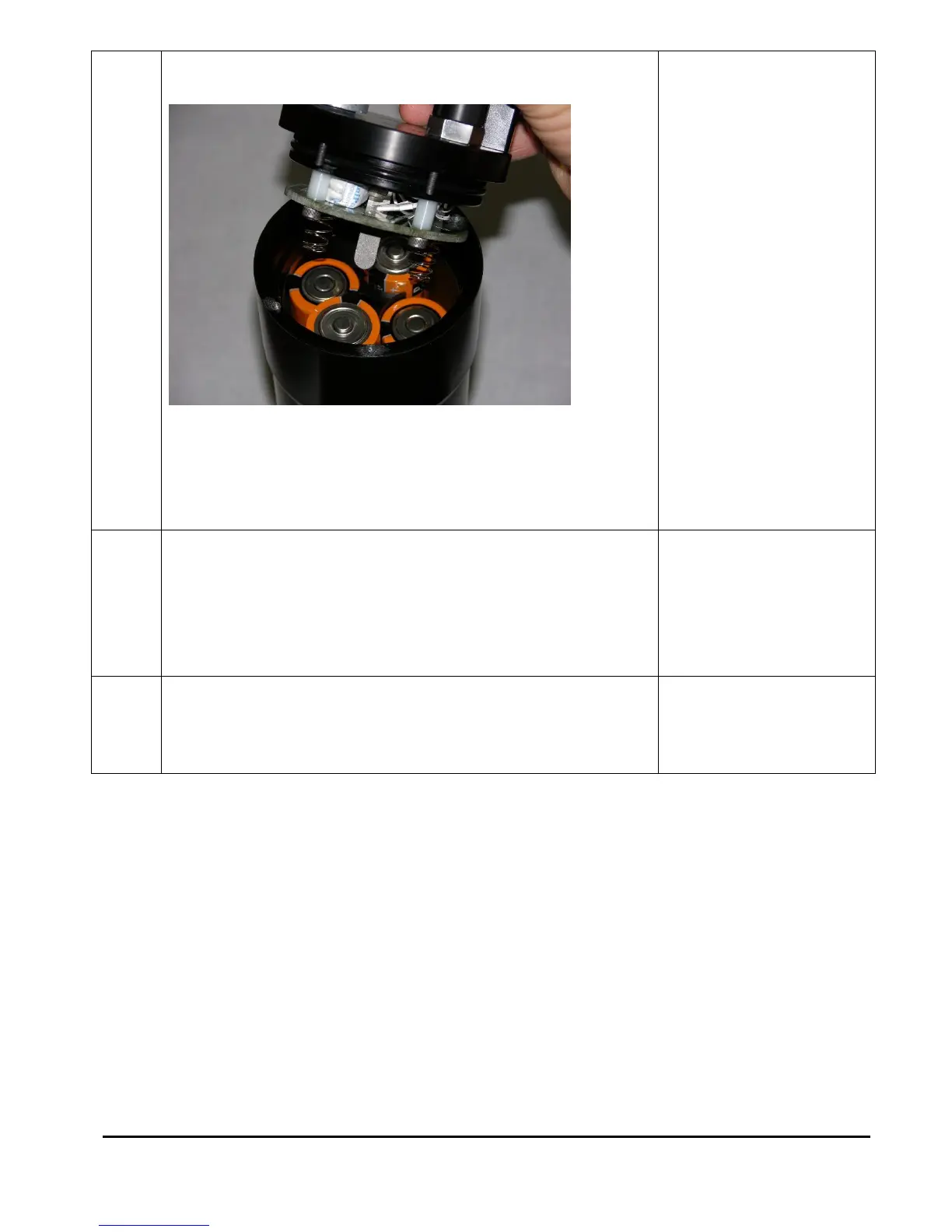

Endcap removed and
batteries replaced.
• Inspect the o-ring on the endcap and the seating
surface on the pressure case to make sure there is no
debris that could affect the seal. Lightly grease the
surfaces as needed.
• Align the tab in the center of the endcap to the slot in
the post in the center of the pressure case
• Screw the connector endcap onto the pressure case
with the four 6-32 x ¾ socket head cap screws. If
necessary, apply anti-seize compound onto the
threads.
Battery assembled and
ready for use.
