• The battery pack can be connected to the LISST-200X
using the provided 5-pin Male to 5-pin Female cable.

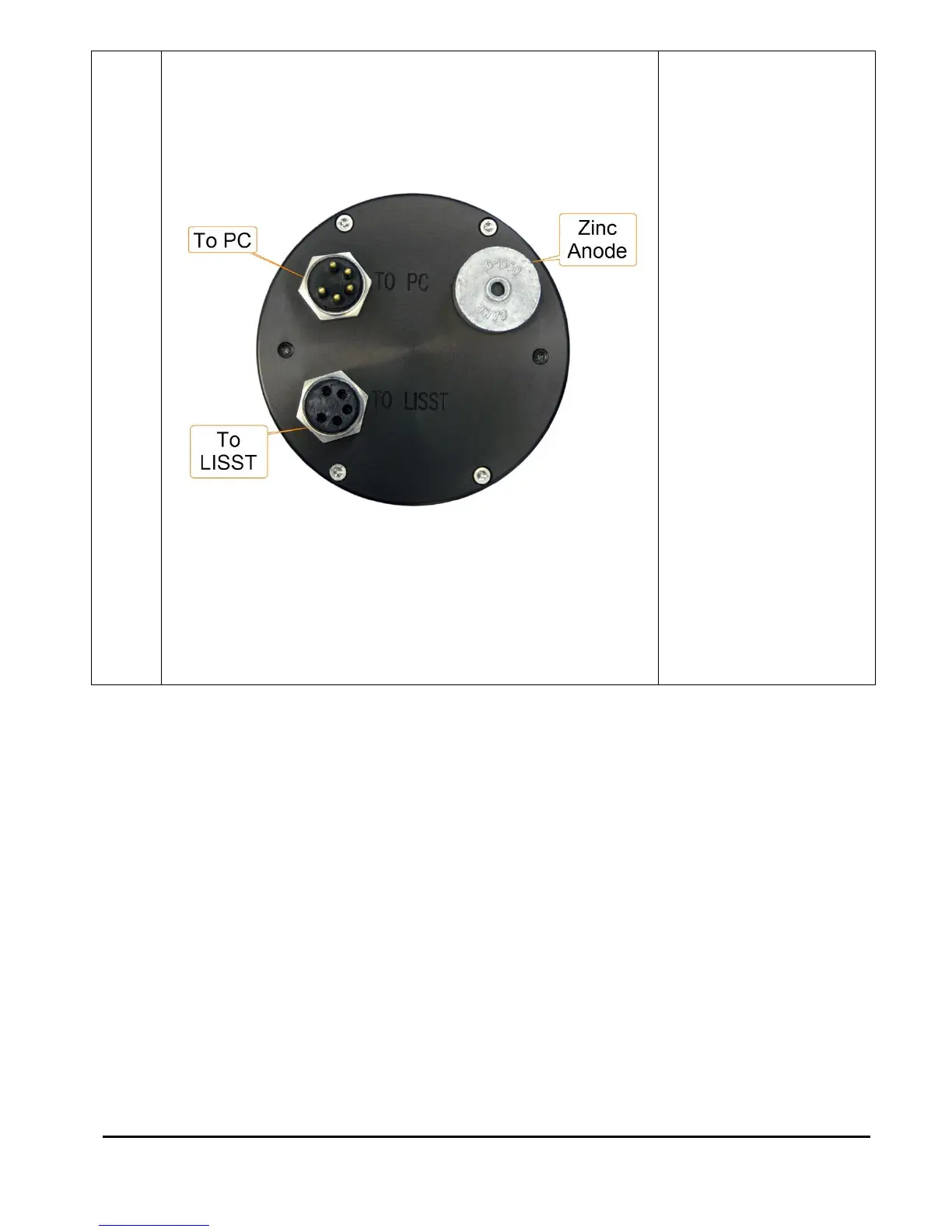

• Connect the Male end of the cable to the Female
Bulkhead connector on the Large Battery Pack. The
connector will be labeled with “TO LISST”.
• Connect the other end of the cable to the 5-pin Male
bulkhead on the LISST-200X.
• Power is now going to the LISST-200X. If AutoStart is
enabled the instrument may be looking for the start
condition.
