LISST-200X User’s Manual LISST-200X Operation Details Page 68
• The Start Collection button function is similar to its use in
viewing processed data. The SOP will automatically
acquire data at a fixed rate. The slider next to the Start
Collection button controls the sample speed. Note that the
interval time may be limited by the measurement average
you have selected.
Start Collection
button pressed and
samples updating
automatically.
• The Auxiliary parameter window can be opened to display
the current values of the auxiliary parameters such as
pressure and temperature. Open the window by selecting
the Show Auxiliary Parameters from the View menu.
Auxiliary Parameter
window opened.
• The scale of the Volume Distribution plot can be changed
by using the Scale +/- button. After selecting the button a
display similar to the one shown below will prompt you for
the maximum concentration for the Y-axis of the plot.
Display setting
modified.

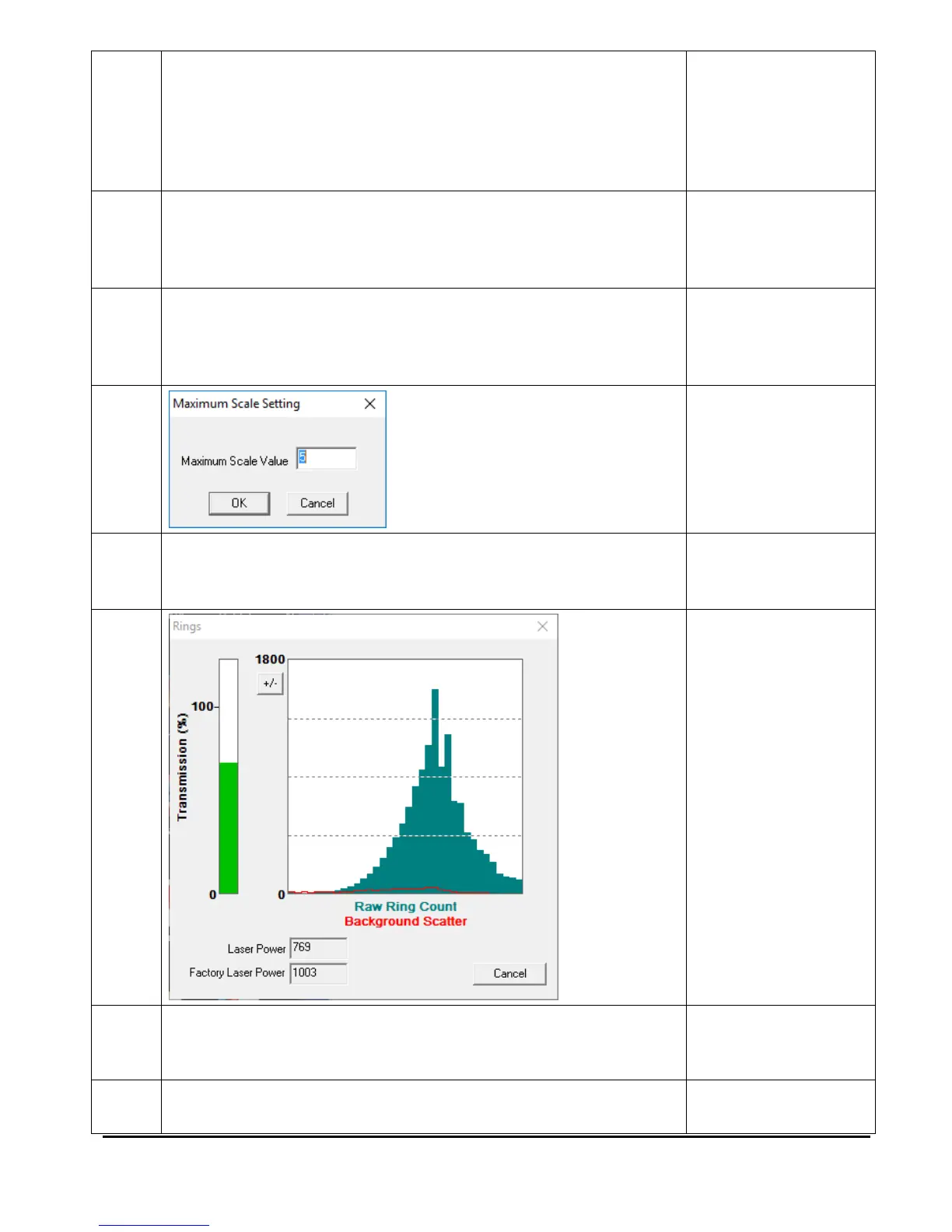

• The raw scattering values can be graphically display by
selecting View Rings from the View menu. An example of
this display is shown below.
Value of rings for
current frame
displayed.
• A single sample may be saved to a separate file by
pressing the Save Single Sample button
Averaged data
acquired and stored
to an ASCII file.
• Press the ‘Stop Collection’ button and close the window to
end the realtime session.
