Sercel GRC ESP-Series User Manual

Doc No. 006-0211-00 Rev AD Page 16 of 62
Procedure
Cut P/N 037-0050-04 off from the communication wire, refer to Appendix Fig. A1.
Thread the communication wire through the hole on the terminal.
Be sure not to use the RTD wires as all wiring from the choke is white.
Fold the excess wire back towards itself making a loop. Refer to Figure 52.

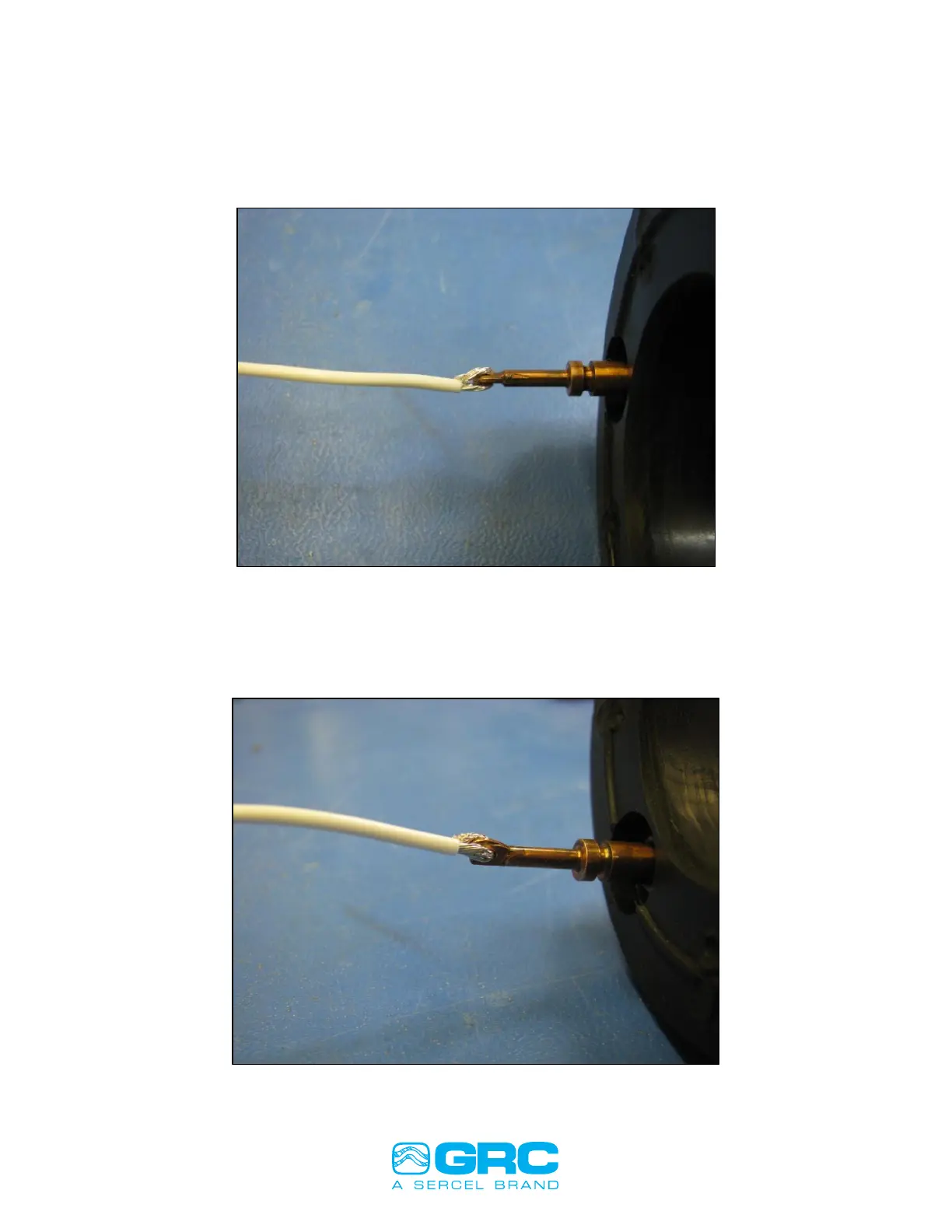

Figure 9. WYE Connector Shown with the
Communication Wire Prior to Crimping.
Any excess wire extending beyond the insulation of the wire should be removed.
Before soldering, gently crimp the wires with needle nose pliers to close the gap of the
wire loop. Refer to Figure 10.
Figure 10. WYE Terminal Shown with the
Communication Wire After Being Crimped.
