Sercel GRC ESP-Series User Manual

Doc No. 006-0211-00 Rev AD Page 17 of 62
Now solder the wire to the terminal with the aid of flux making sure not to leave any
sharp edges. Refer to Fig. 11. After soldering, clean the solder with alcohol and slide
the clear plastic wire insulator to the solder joint. Refer to Fig. 11.

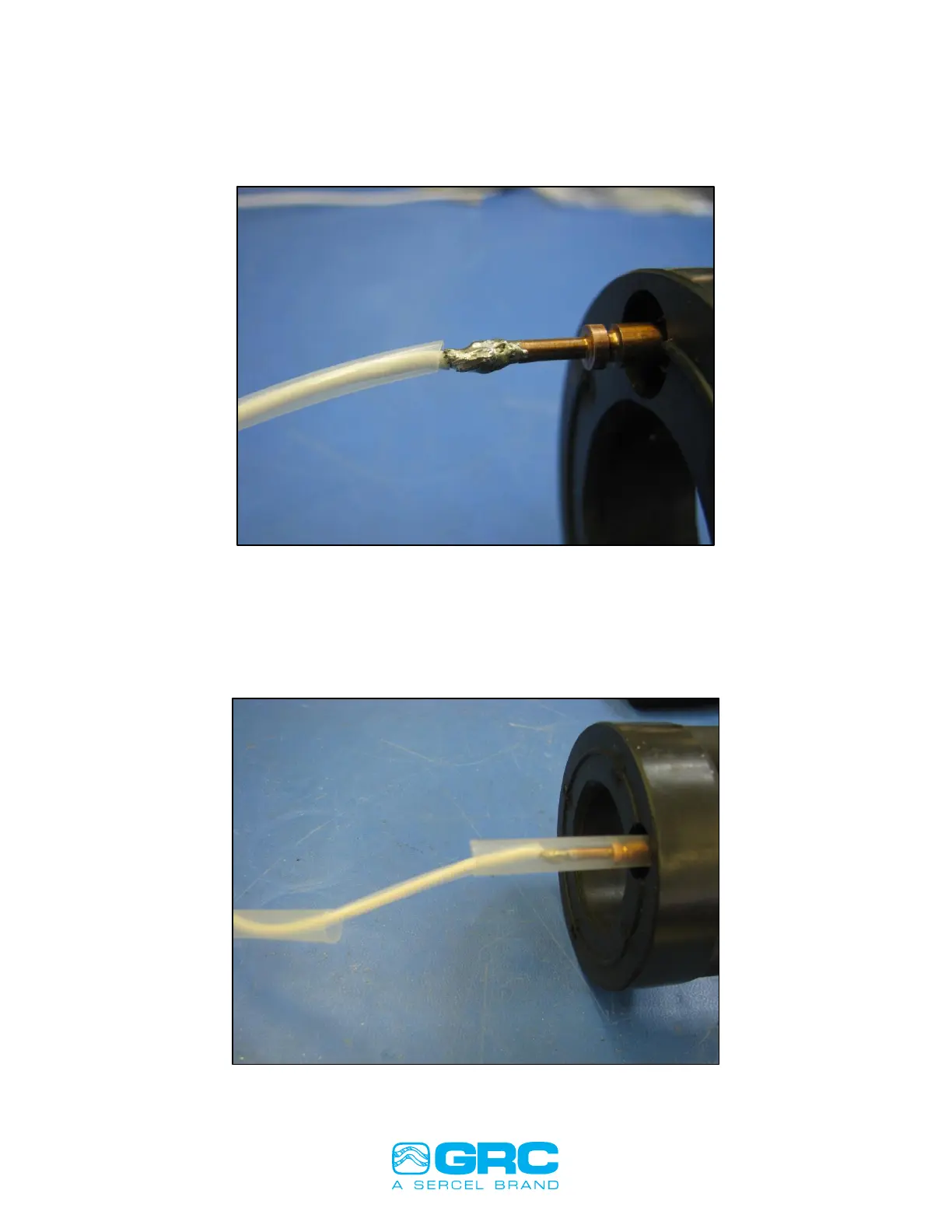

Figure 11. WYE Terminal Shown with the
Communication Wire Soldered.
Slide one piece of heat shrink tubing down to the hex base of the terminal. Apply heat
to shrink the first heat shrink tubing before applying second layer of heat shrink
tubing. Refer to Figure 12.
Figure 12. WYE Connector Shown with the
First Heat Shrink Tubing Un-Shrunk.
