Now slide the second piece of heat shrink tubing down to the base of the threaded pin.

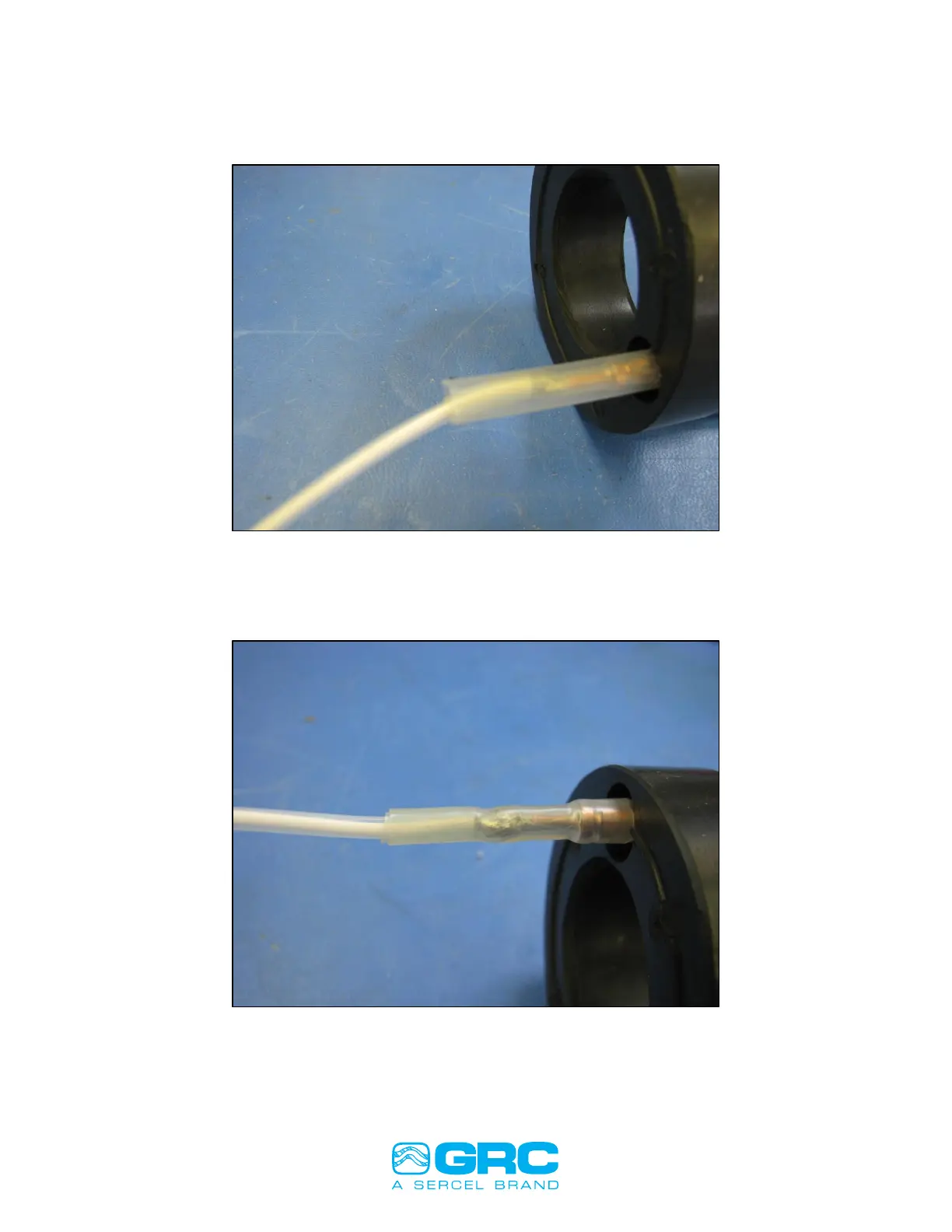

This will go over the first heat shrink tubing. Refer to Fig. 13a.

Figure 13. WYE Connector Shown with the

Second Heat Shrink Tubing.

Apply heat to the heat shrink to complete the assembly. Refer to Fig.13b for final

assembly.

Figure 13b. WYE Connector Terminal Shown with

Both Heat Shrink Tubing Shrunk.
