Doc No. 006-0211-00 Rev AK Page 11 of 33

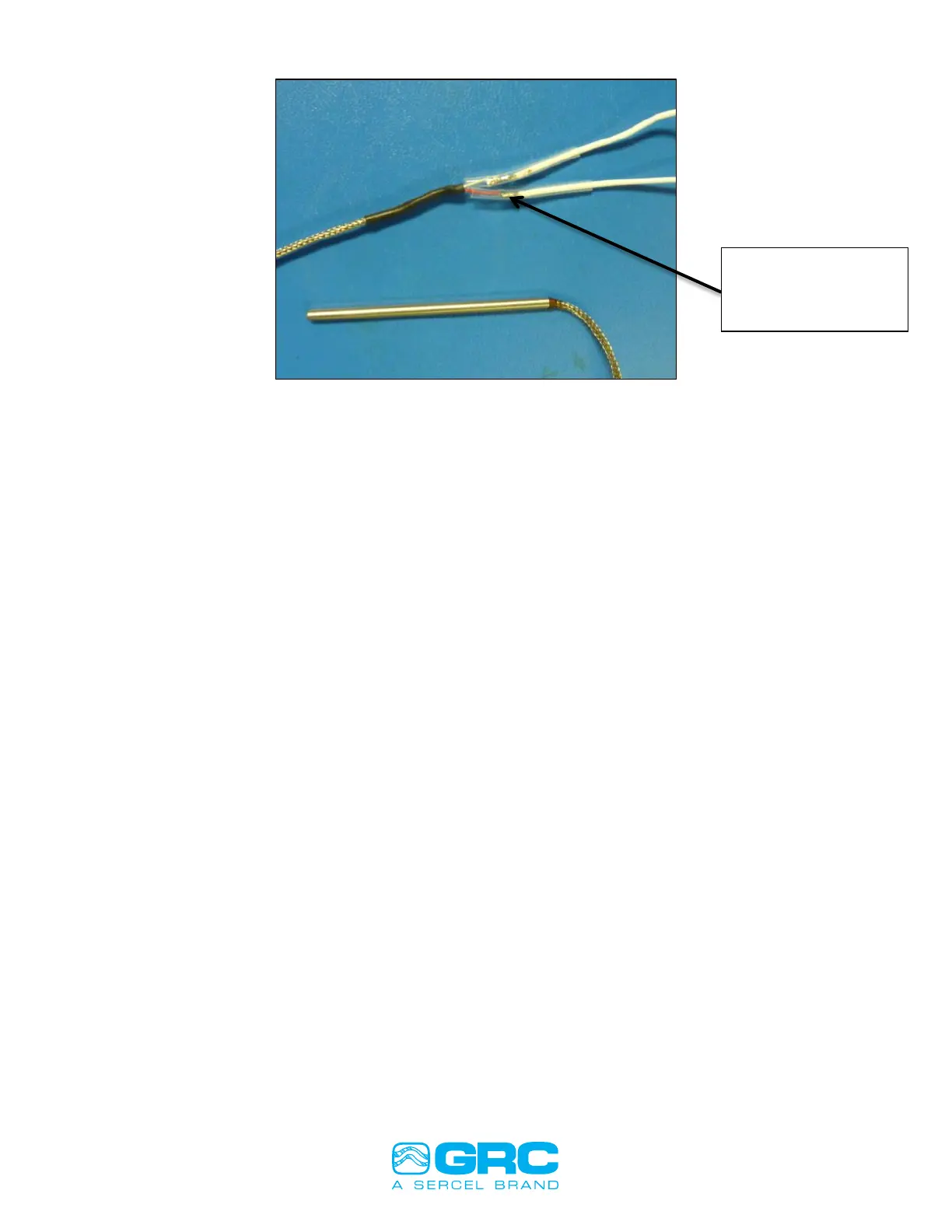

Figure 7: Heat Shrink Tubing Over the Solder Joints
Finally, replace the wye point if you have removed it. Attach the Scout-3000 or portable
Scout to any of the motor terminals of the wye point or to the gauge wire if not using our
wye point. Turn on the Scout and check/record gauge readings.
Place the RTD in the position you had determined and reassemble the gauge and
motor. Re-check and record readings using the Scout attached to the top of the motor
on one motor lead.
Solder joint located
at the center of the
heat shrink tubing.
