Doc No. 006-0211-00 Rev AK Page 13 of 33

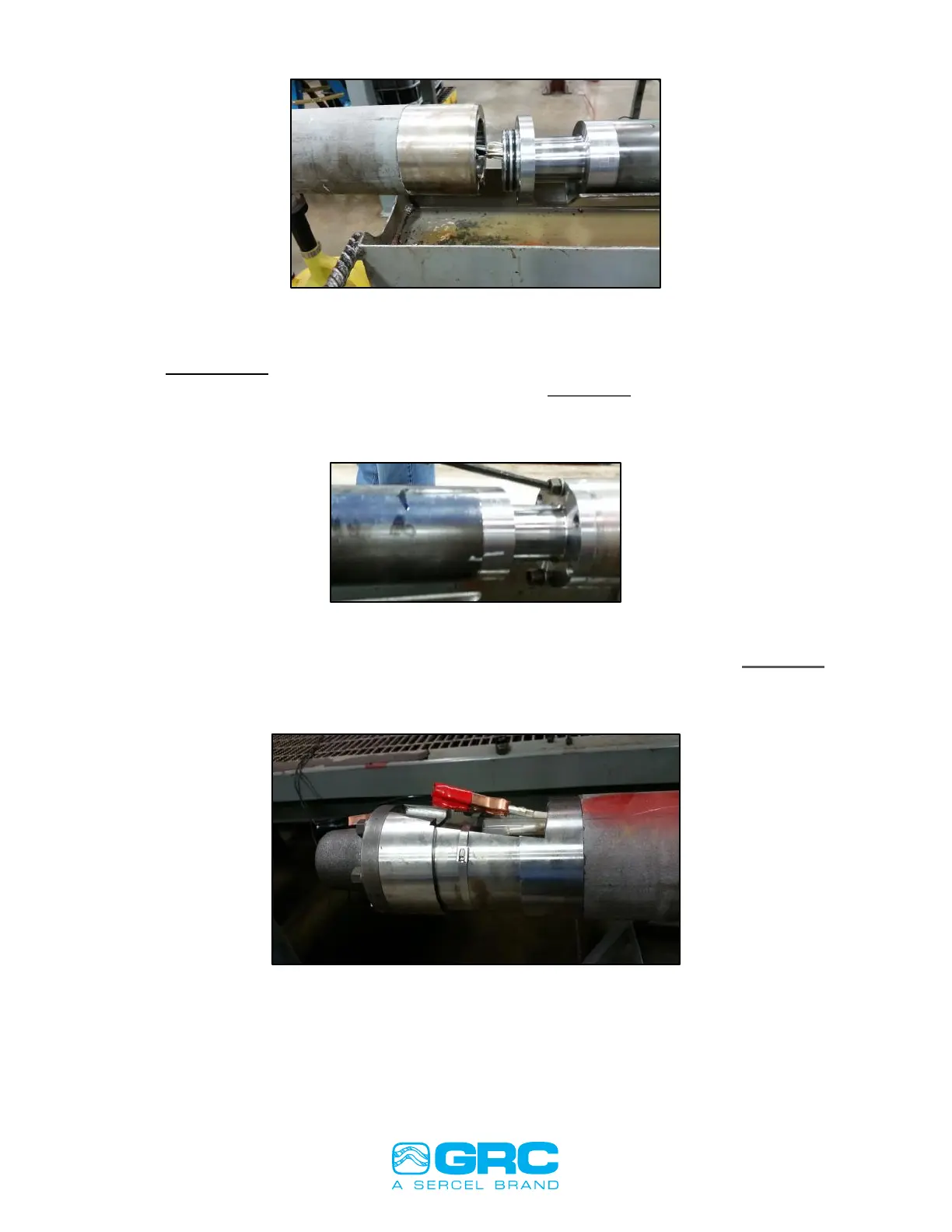

Figure 10: Slide Wire Bundle into the Head of the Gauge
4. Lubricate the O-rings. Carefully stab the sensor onto the motor. Care must be taken
to NOT PINCH the wires or damage the O-rings.
5. Insert the top and bottom bolt and finger tighten. FIGURE 11
6. Insert remaining bolts and tighten all bolts to 25 ft/lbs.
Figure 11: Insert Top and Bottom Bolts
7. Perform bench testing through the pothead using GRC surface readout. FIGURE 12
Log the data to the ESP Sensor Checklist (Appendix 3)
Figure 12: Bench Test Through the Pothead
