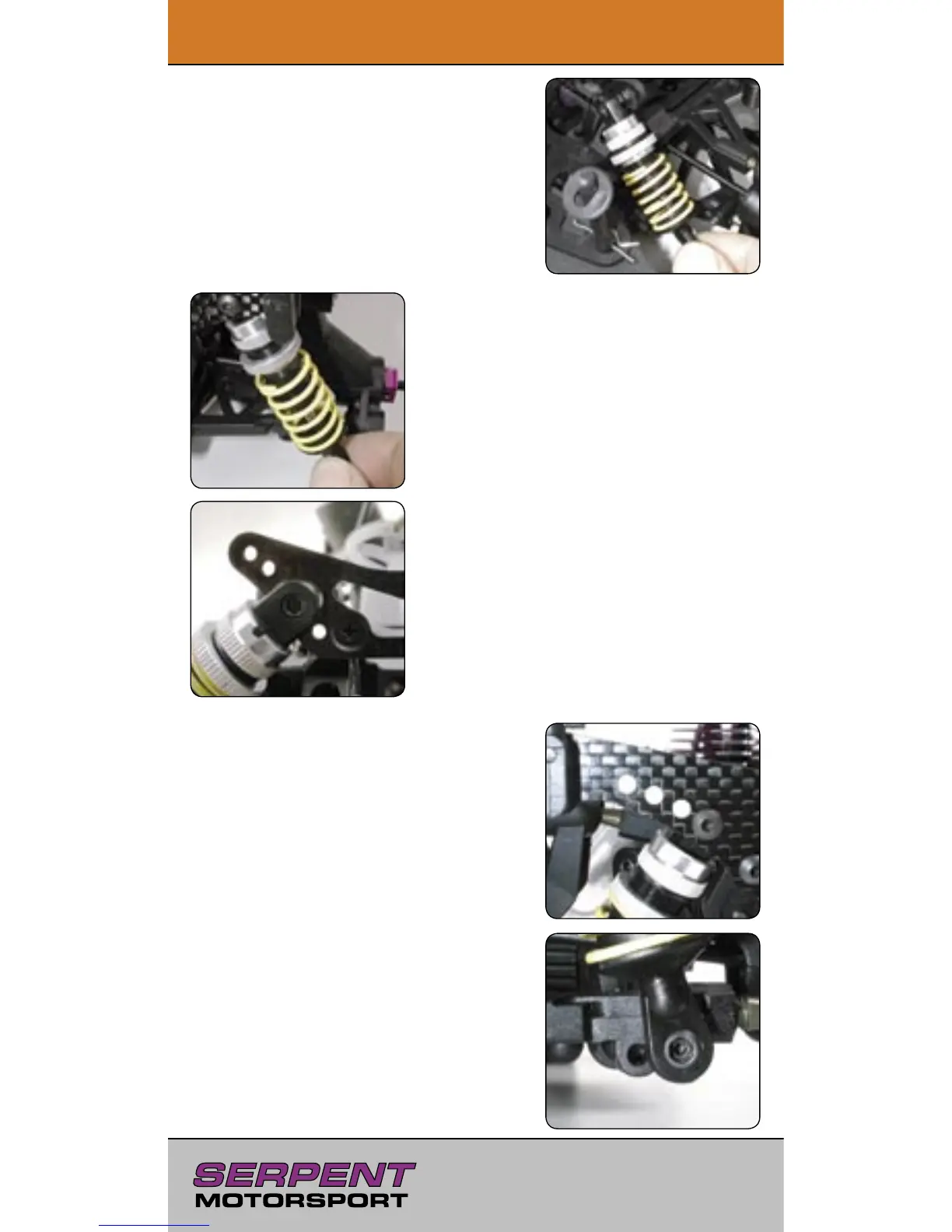

A2.1 Setting the front shock absorbers
- damping
Front shock damping setting= 3 holes open
Adjust the front shocks to 3 holes open.
Turn completely CW, then turn 1 click CCW.
A2.2 Setting the rear shock absorbers
- damping
Rear shock damping setting= 3 holes open
Adjust the rear shocks to 3 holes open.
Turn completely CW, then turn 1 click CCW.
A2.3 Setting the front shock absorbers
– upper mounting position
Front shock upper mounting position =
second hole
Attach the front shock upper mount to the
hole that is 1 hole above the bottom hole
on the front shock tower.
A2.4 Setting the front shock absorbers
– lower mounting position
There is only one shock mounting position
on the front lower arm.
A2.5 Setting the rear shock absorbers
– upper mounting position
Rear shock upper mounting position =
bottom hole
Attach the rear shock upper mount to the
bottom hole on the rear shock tower.
A2.6 Setting the rear shock absorbers
– lower mounting position
Rear shock lower mounting position =
outer hole
Attach the rear shock lower mount to the
outer hole on the rear lower arm.
