12 DF-150E Analyzer Start-Up Procedure
5.1 Charging the Sensor
For sensors mounted remotely skip directly to the section on Adding
Electrolyte on page 13.
5.1.1 Remove the Sensor
1. Open the front door.
2. Turn power off.
3. Disconnect the electrical cable that runs to the sensor.
4. Loosen the two, knurled thumb screws in front of the sensor.
5. Remove the bulkhead nut from the inlet gas connection on the rear of the
analyzer.
6. If the analyzer is equipped with the stainless steel outlet tubing option,
remove the nut from the outlet bulkhead fitting.
7. Carefully slide the sensor out of the analyzer a few inches.
8. Remove the quick disconnect at the top of the flowmeter. (Skip this step if
the analyzer is equipped with the stainless steel outlet tubing option.)
9. Finish sliding the sensor out of the cabinet.
CAUTION
REMOVE SENSOR WHEN CHARGING OR CHANGING -LECTROLYTE.
RE-FILL LIQUID LEVEL WITH DELTA F REPLENISHMENT SOLUTION
ONLY, NOT -LECTROLYTE. AVOID SPLASHING AND DRIPPING.
KEEP ANALYZER IN VERTICAL POSITION WHEN FILLED WITH
-LECTROLYTE.
REPLENISHMENT SOLUTION MAY BE ADDED WHILE ANALYZER IS
ON-LINE.
E
E
E

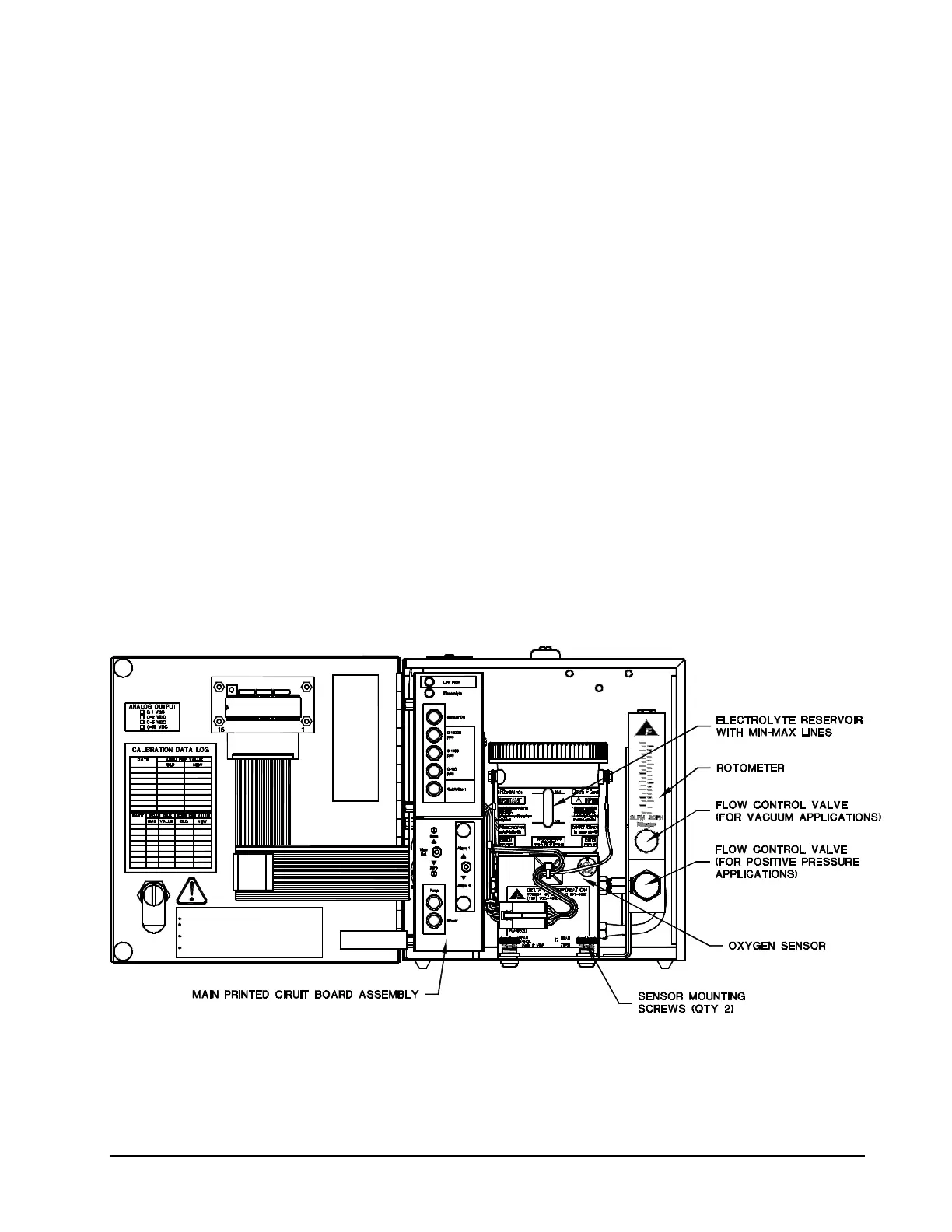

Figure 2: Major Internal Components
To Next Page
