Outputs and Remote Connections DF-150E 41
9 Outputs and Remote
Connections
Several connectors can be found on the rear of the DF Series analyzers:
The I/O connector is available on all versions of the DF Series, however,
options indicated by labels on the connector may not have been included in
the analyzer.
The Remote Sensor connector is not available on the DF-130 or on CE
Qualified DF-150 analyzers.
The Pump connector is optional, and is not available on CE Qualified
analyzers.

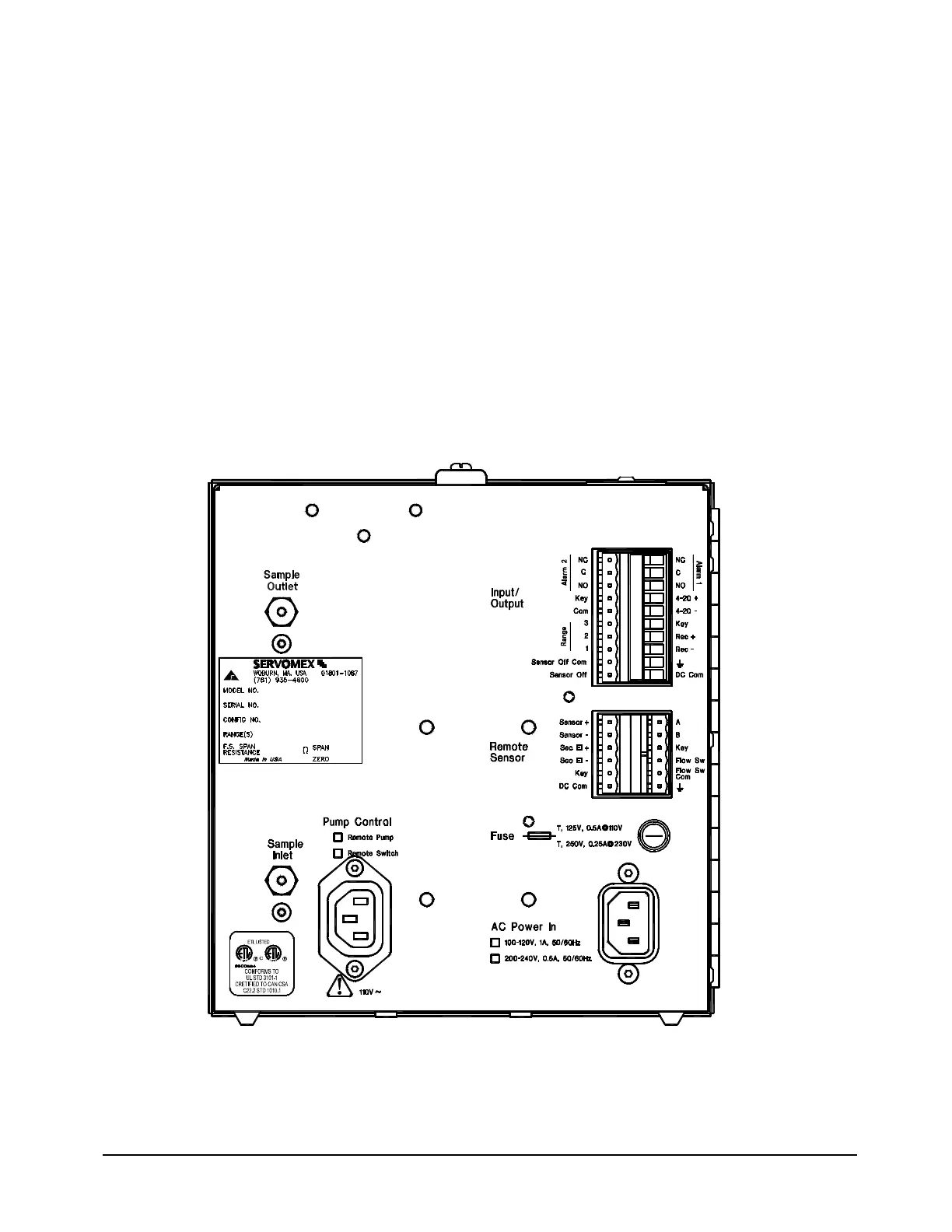

Figure 24: Rear Panel Connections
