18 DF-150E Standard Features
6.3 Analog Output
The default setting for the analog output is 0 to 10 VDC. Alternate settings
available when ordering are 0 to 1 VDC, 0 to 2 VDC or 0 to 5 VDC.
See the sticker on the inside of the front door, Figure 7, for the current setting
of the analog output voltage.
The analog output is proportional to the oxygen reading of the analyzer. The
analog output on a three range analyzer will be scaled to the “selected” range.

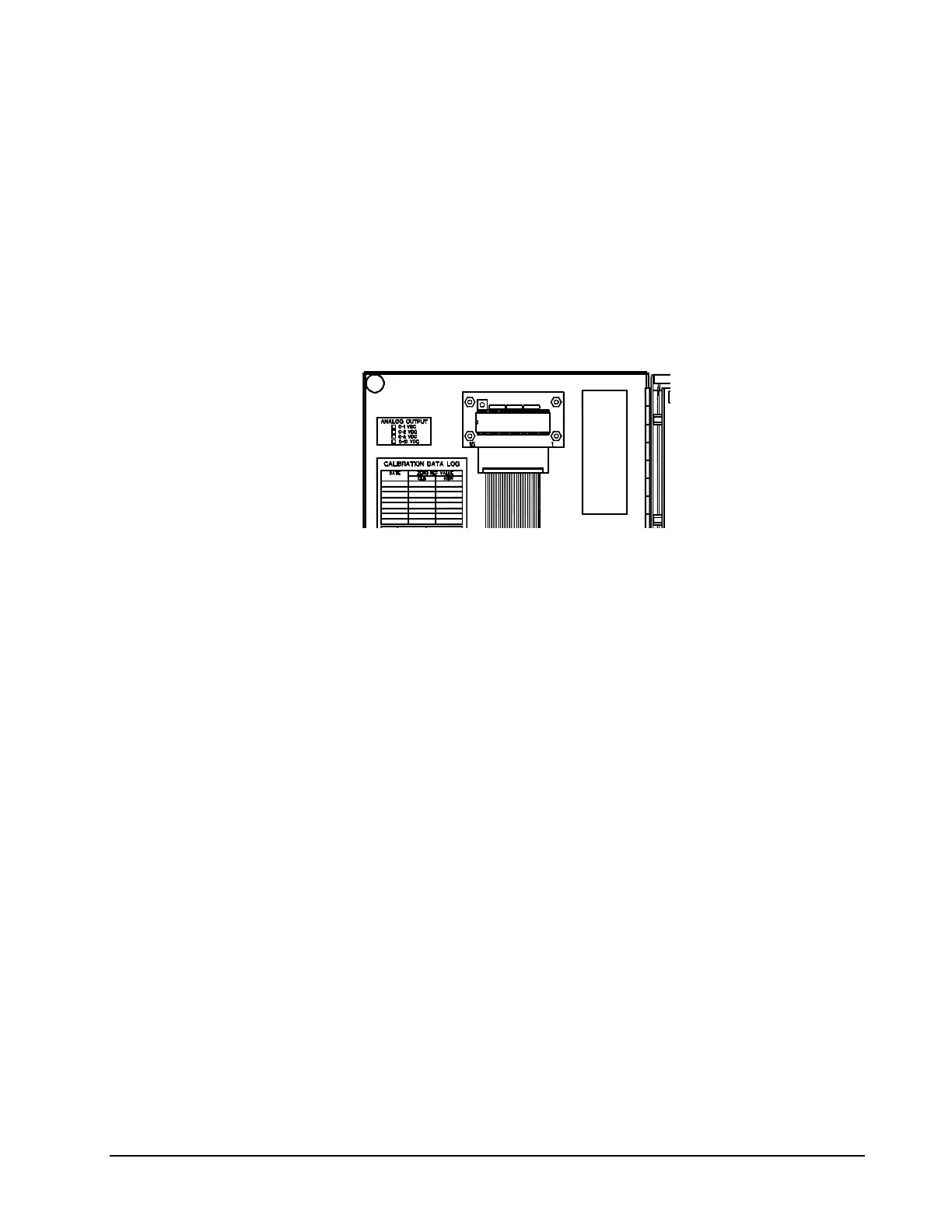

Figure 7: Analog Output Setting
