2.5 Rack slide mounting installation
The analyser occupies 3U/5.25"/133mm of rack space. Determine at what height the analyser
is to be installed in the rack enclosure. The analyser will occupy nine rack flange cage nut
positions. Note that intermediate cage nut positions need not be punched out.
If the instrument has been purchased with the rack mounting option then the rack slide inners
will already be mounted on the analyser chassis. If the rack mounting kit has been purchased
as a spare then the instructions in this section detail fitting. The rack mounting kit contains
two slides which have an inner and outer section.

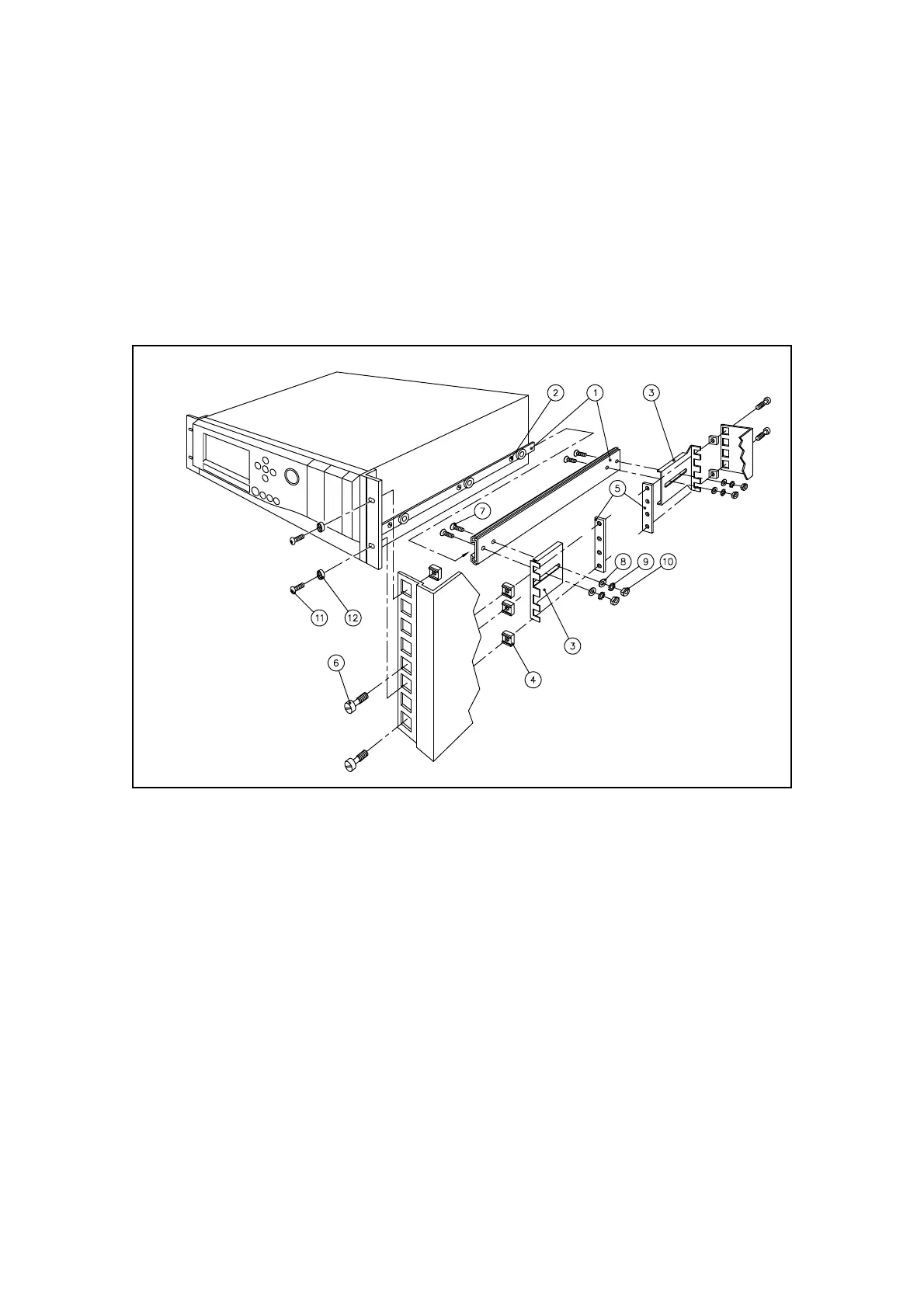

Figure 2.2: Rack installation exploded view
Key: 1
2
3
4
5
6
Telescopic slide
Screw M5
Slide support bracket
Cage nut
Slide support clamp
Waisted screw, brass, M5
7
8
9
10
11
12
Screw, M4
Washer, M4
Locking washer, M4
Nut, M4
Screw, plated, cross head, M5
Cup washer, plastic
