Sesamo PROSWING - Terminal Boards and Connectors; Selectors Terminal Board; Peripheral Power Connector (15 Vdc)

Operating instruction
PROSWING(M)
35
Selectors terminal board
Real power value may vary from 15 Vdc to about ± 10%, depending on the resistive load situations connected to these
terminals.
Terminal OUT / 15 VDC : POSITIVE ( + )
Terminal COM : NEGATIVE ( - )
ATTENTION
Do not invert power polarity. When the green led is on it indicates normal voltage presence 15V. If off check:
• For mains voltage
• That fuse is not interrupted
Use the four conductors in the shielded wire for connections, observing the correspondences indicated by the markings
on the terminal board and multi-logic selector.
Do not connect the shield of the wire used.
For further information on multi-logic selector use, see the instructions for use.

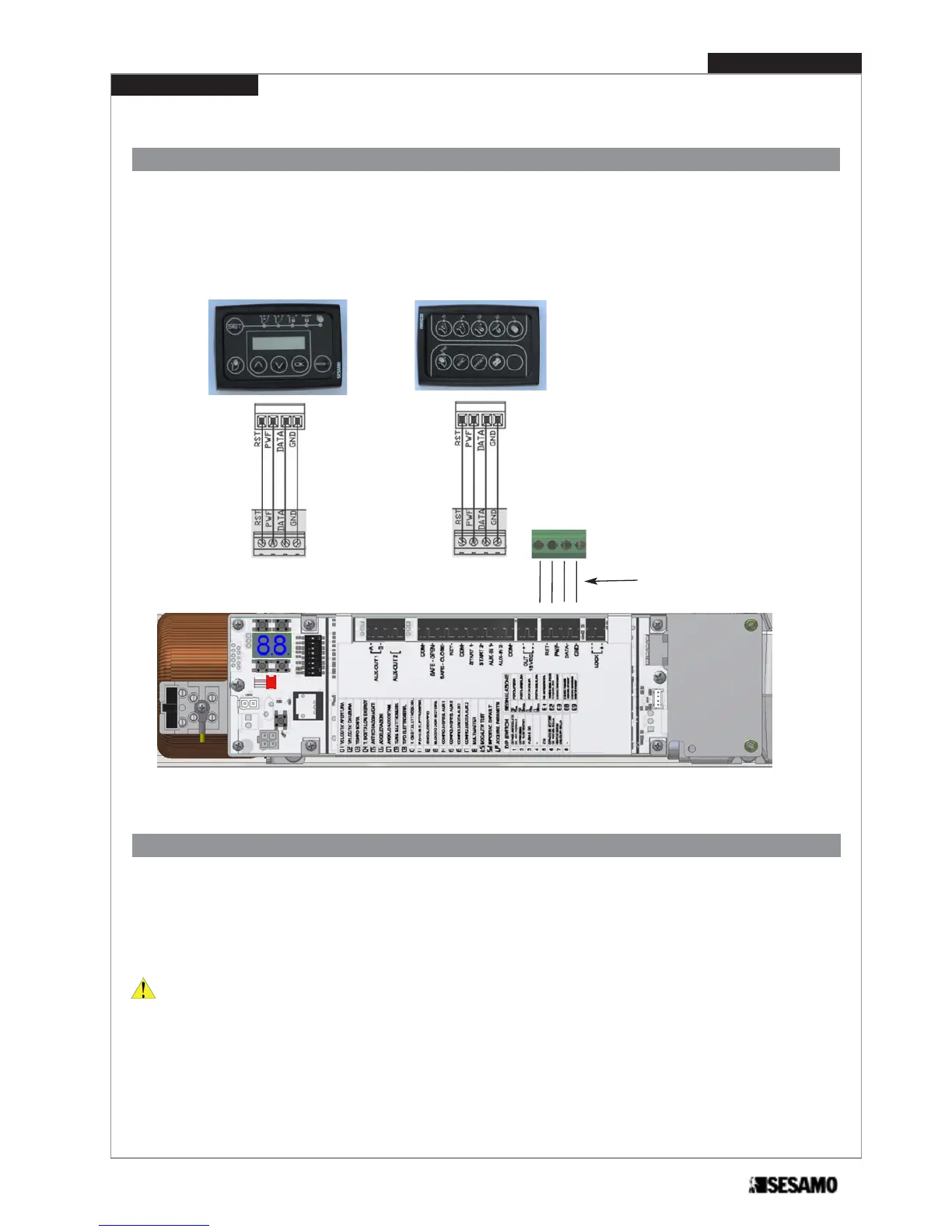

External peripheral power connector
(15 Vdc)
Shielded cable with 4 wires
0,22 mm. (Do not connect
the shield of the wire used)
Fig. 33
ADVANCED SELECTOR
BASE SELECTOR
B A
