For both solutions, we must follow the following instructions to configure the electronic boards:
1- To define Master and Slave use parameter 13:
• MASTER (parameter 13 =1);
• SLAVE (parameter 13 =2);
Even in case of door without displacement it is necessary to set Master and Slave .
ATTENTION: use same power line for the two automatisms without any fuses or switches. Peripherals command
SAFE CLOSE, KEY, START 1 e START 2 have to be connected to Master door. SAFE OPEN command have to be
connected separately on each control boards.

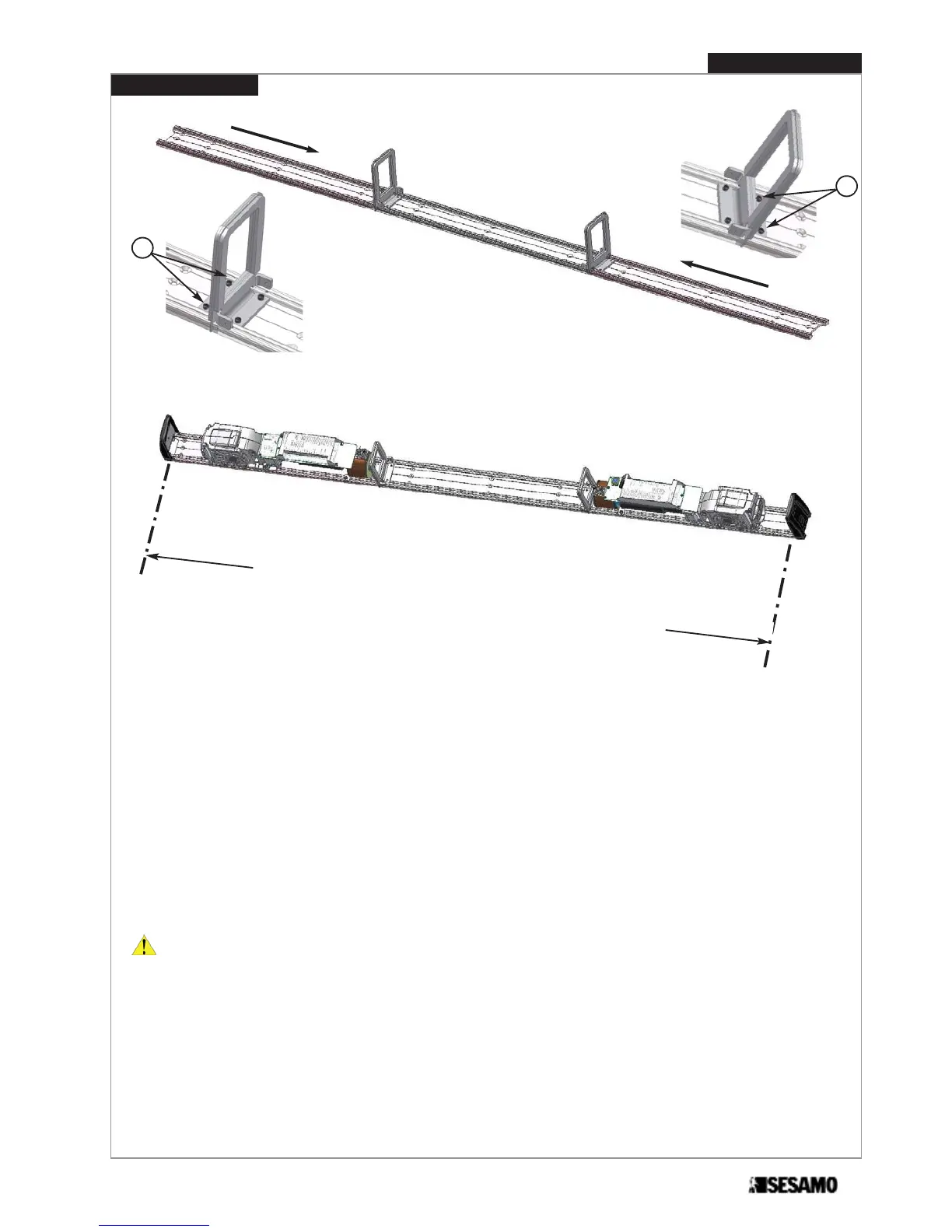

Fig. 34
Hinge axis SX
Hinge axis DX
PROSWING ON RIGHT
PROSWING ON LEFT
PART OF UNION
Fig. 35
A
A
