Power kit (OPTIONAL)
A
B
C
D
Fig. 39
Fig. 40
E
E
PROSWING(M)
Operating instruction
40
Black cable
Red cable

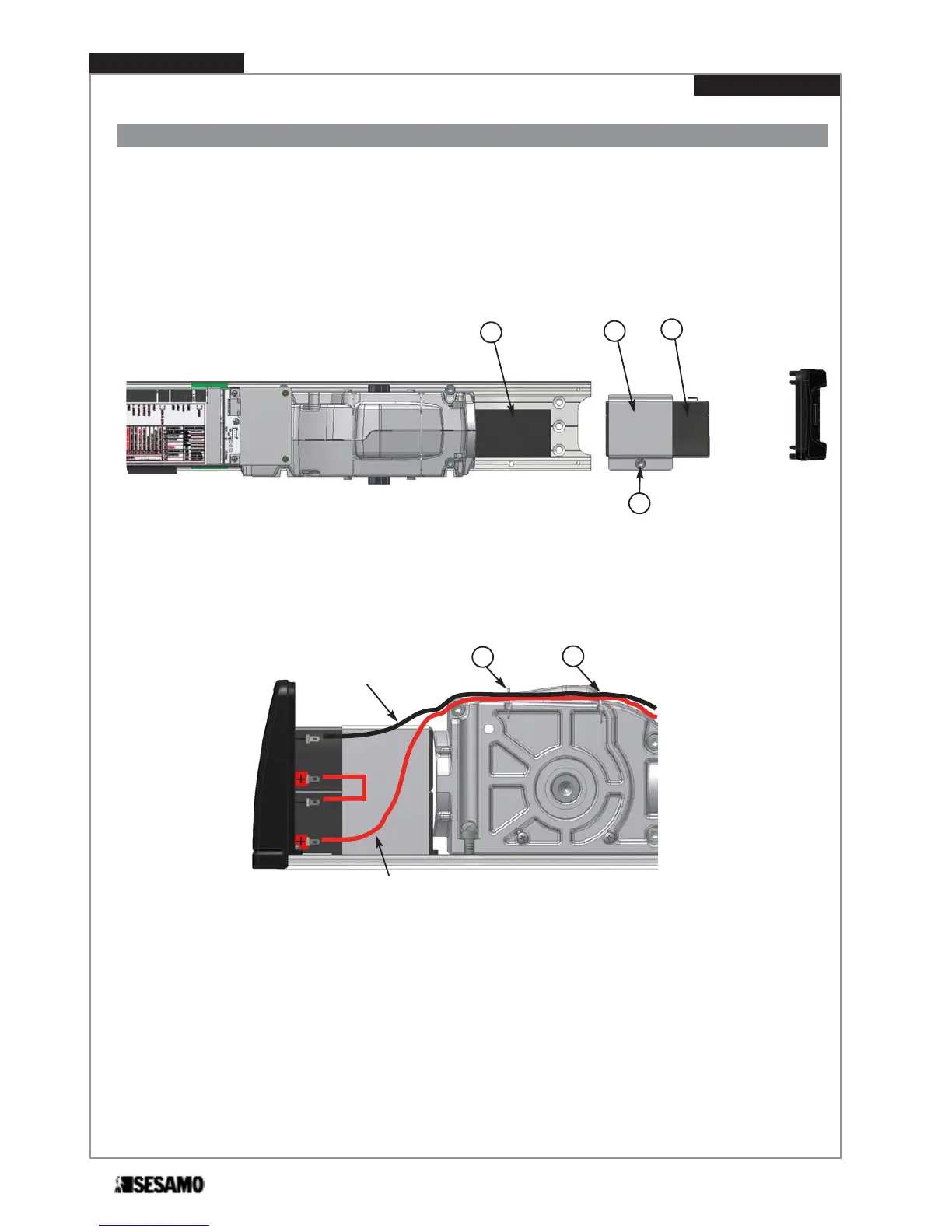

To install power kit batteries proceed as follows:
1- Fix the sponge (A) as shown in Fig. 39, using as reference the aluminum base profile bottom line;
2- Insert the two batteries (C) in the supporting metallic bracket (B) and fix the whole assembling through screw M6x10
(D);
3- Connect cables as shown in Fig. 40;
