Installation Wiring/Power
______________________________________________________________________________
MillipaK 4QPM Controller Manual Page 8 13/08/03
MillipaK 4QPM Power Wiring

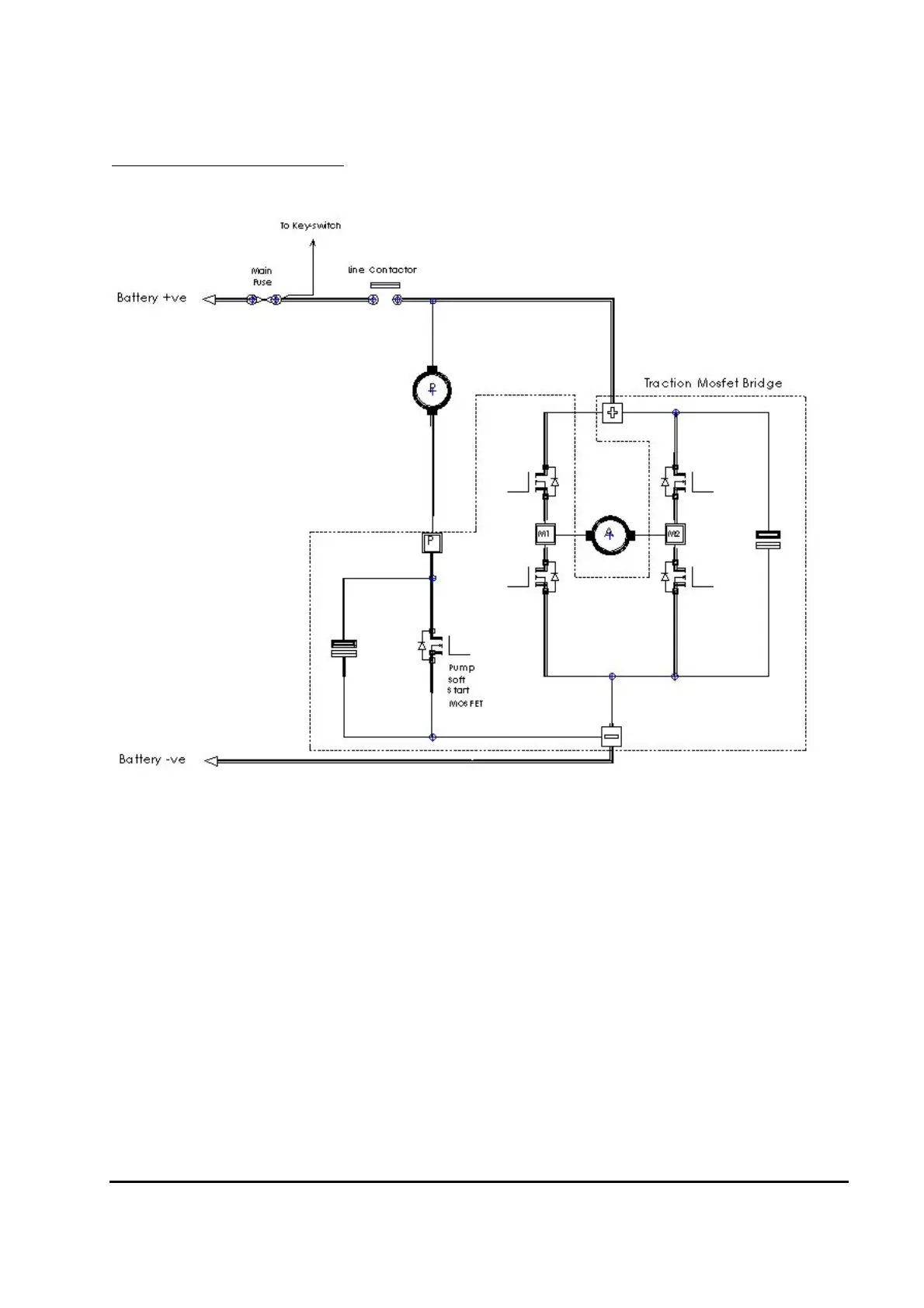

Figure 2: MillipaK 4QPM Power Wiring
NOTE: The Pump MOSFET’s are optional (soft start versions only).
