SEW-Eurodrive MOVIDRIVE system User Manual

1
Product description

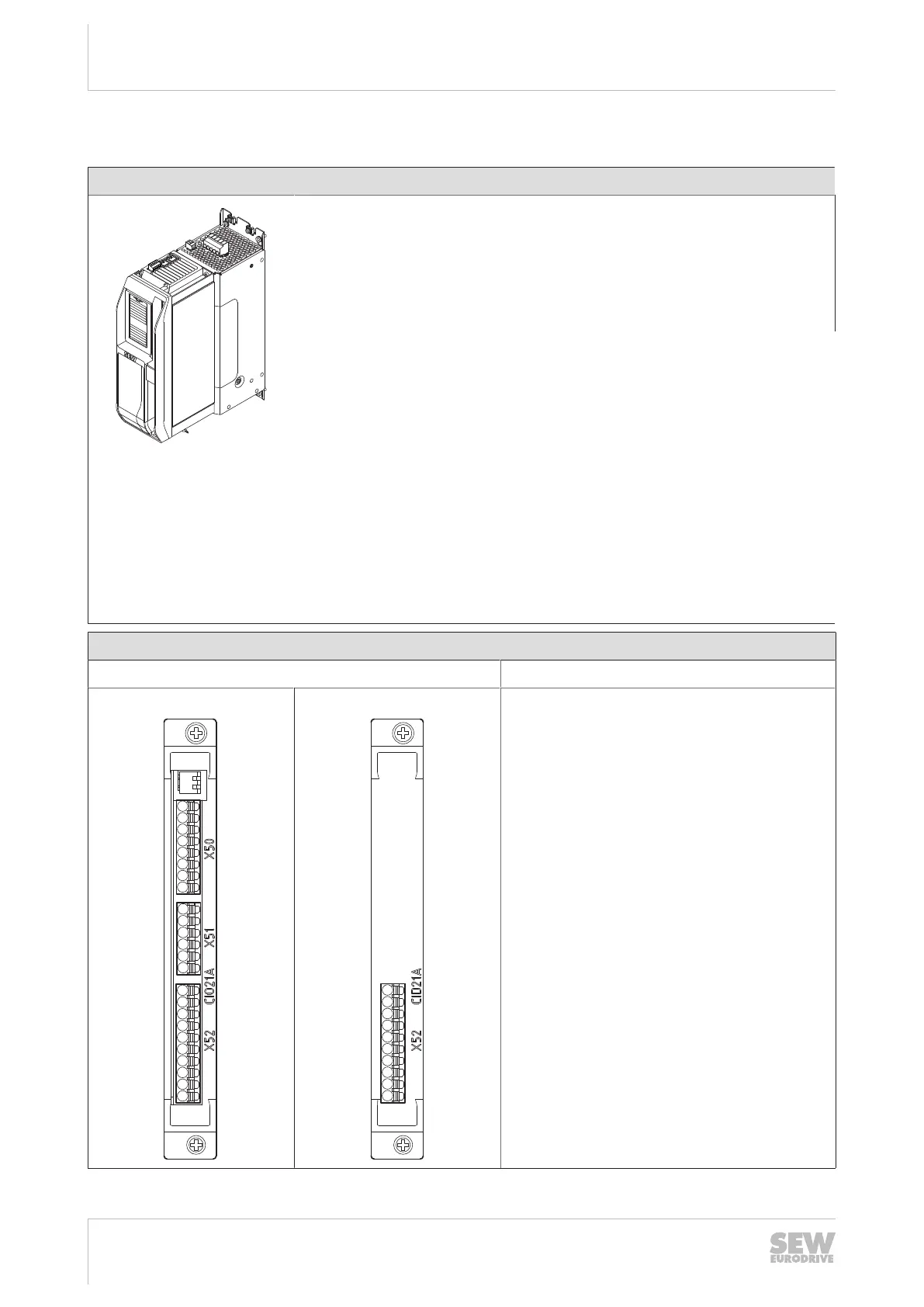

MOVIDRIVE® system at a glance
Product Manual – MOVIDRIVE
®
system
10
1.2 MOVIDRIVE
®
system at a glance
MOVIDRIVE
® system at
a glance
MOVIDRIVE
®
system
5
4
3
2
1
Description: (→215)
Technical data: (→241)
Dimension drawings: (→249)
• Nominal output current: 2 – 588 A
• Voltage ranges: 3 × 380 – 500V, 3 × 200 – 240V, 50 – 60Hz
• Nominal DC link voltage: DC 560 V (400 V), DC 325 V (230 V)
• Overload capacity: 200% of the nominal output current for 3s
• System bus: EtherCAT
®
/SBus
PLUS
For further information on this device, refer to the following documents:
• "MOVIDRIVE
®
system application inverter" operating instructions
• "MOVIDRIVE
®
system application inverter" product manual
• "MOVI-C
®
– Automation with MOVI-C
®
CONTROLLER" manual
• "Parameter Description MOVIDRIVE
®
system" manual
• "MOVIDRIVE
®
modular/system with device profile CiA402" operating in-
structions
Cards
Input/output card
CIO21A
S50
CID21A Description: (→217), (→2240)
Technical data: (→256)
CIO21A
• 4 digital inputs
• 4 digital outputs
• 2 analog inputs
• 2 analog outputs
CID21A
• 4 digital inputs
• 4 digital outputs
For further information on these cards, refer to
the following documents:
• "MOVIDRIVE
®
system application inverter"
operating instructions
• "MOVIDRIVE
®
system application inverter"
product manual
28487486/EN – 02/2019

SEW-Eurodrive MOVIDRIVE system Specifications

General

Category	Inverter
Series	MOVIDRIVE system
Output Voltage	0 - Input Voltage
Protection Class	IP20, IP65 (depending on model)
Type	Frequency Inverter
Output Current	Varies by model
Control Method	Sensorless vector control, V/f control
Communication Interfaces	CANopen
Safety	Safe Torque Off (STO), Safe Stop 1 (SS1)
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
