Prefabricated cables
Encoder cables for DR.. motors
Product Manual – MOVIDRIVE
®
system
181
4.7.8 Encoder extension cable with M23 and D-sub

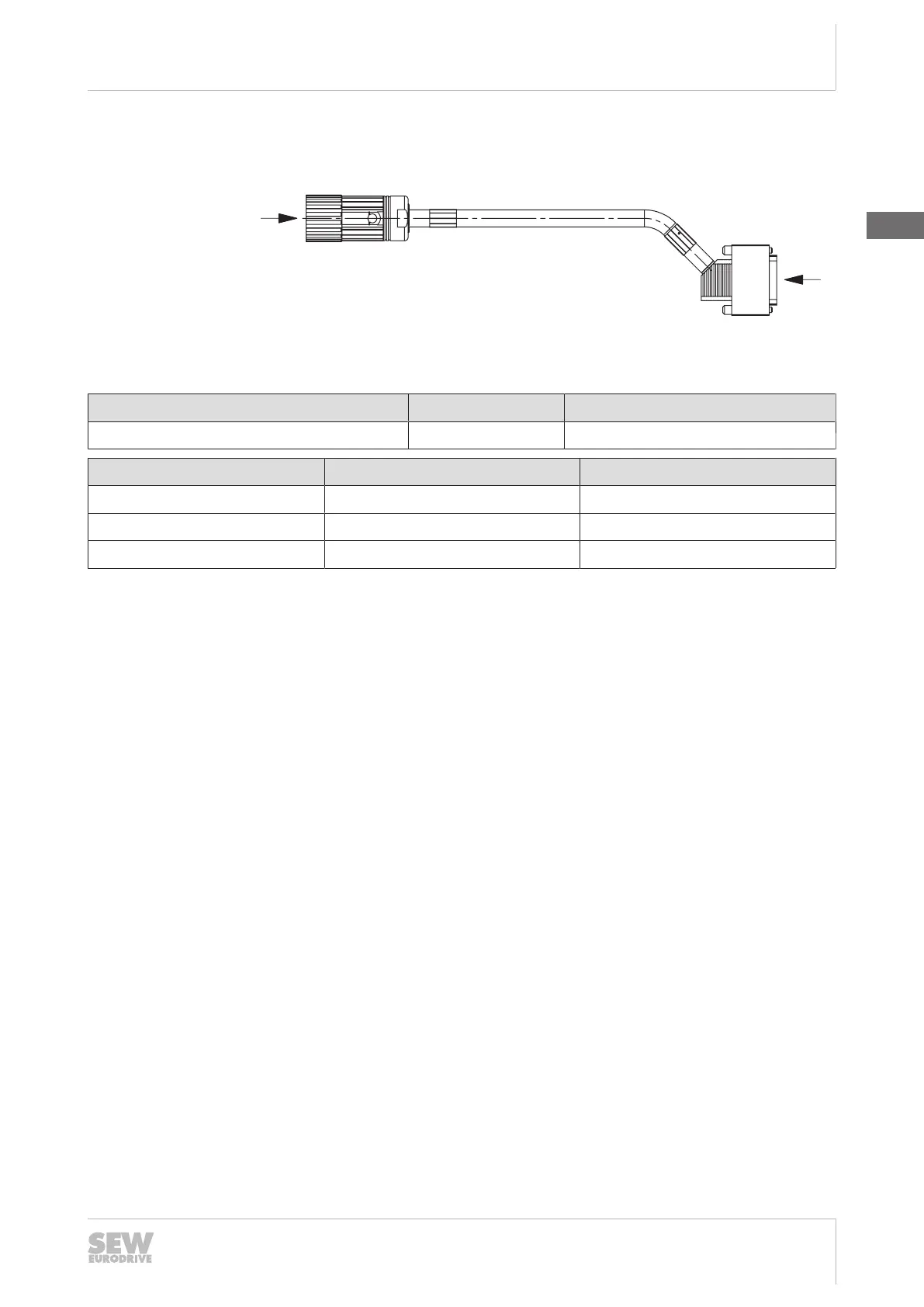

Illustration of encoder extension cable
X
Y
14818406795
Types of encoder extension cables
Number of cores and cable cross section Part number Installation type
6 × 2 × 0.25mm
2
13621998 Fixed installation
Encoder types DR.71 – 132 DR.160 – 280
Sine encoder ES7S EG7S
TTL ES7R EG7R
RS485 AS7W AG7W
