5
Electrical installation
Terminal assignment
Operating Instructions – MOVIGEAR
®
performance
77
Assignment
Terminal No
.
Name Marking Function
X31
engineering
interface
1 0V24_OUT – 0V24 reference potential
for DC24V auxiliary output
2 CAN_L – CAN Low connection
3 CAN_H – CAN High connection
4 24V_OUT – DC24V auxiliary output
1) in preparation

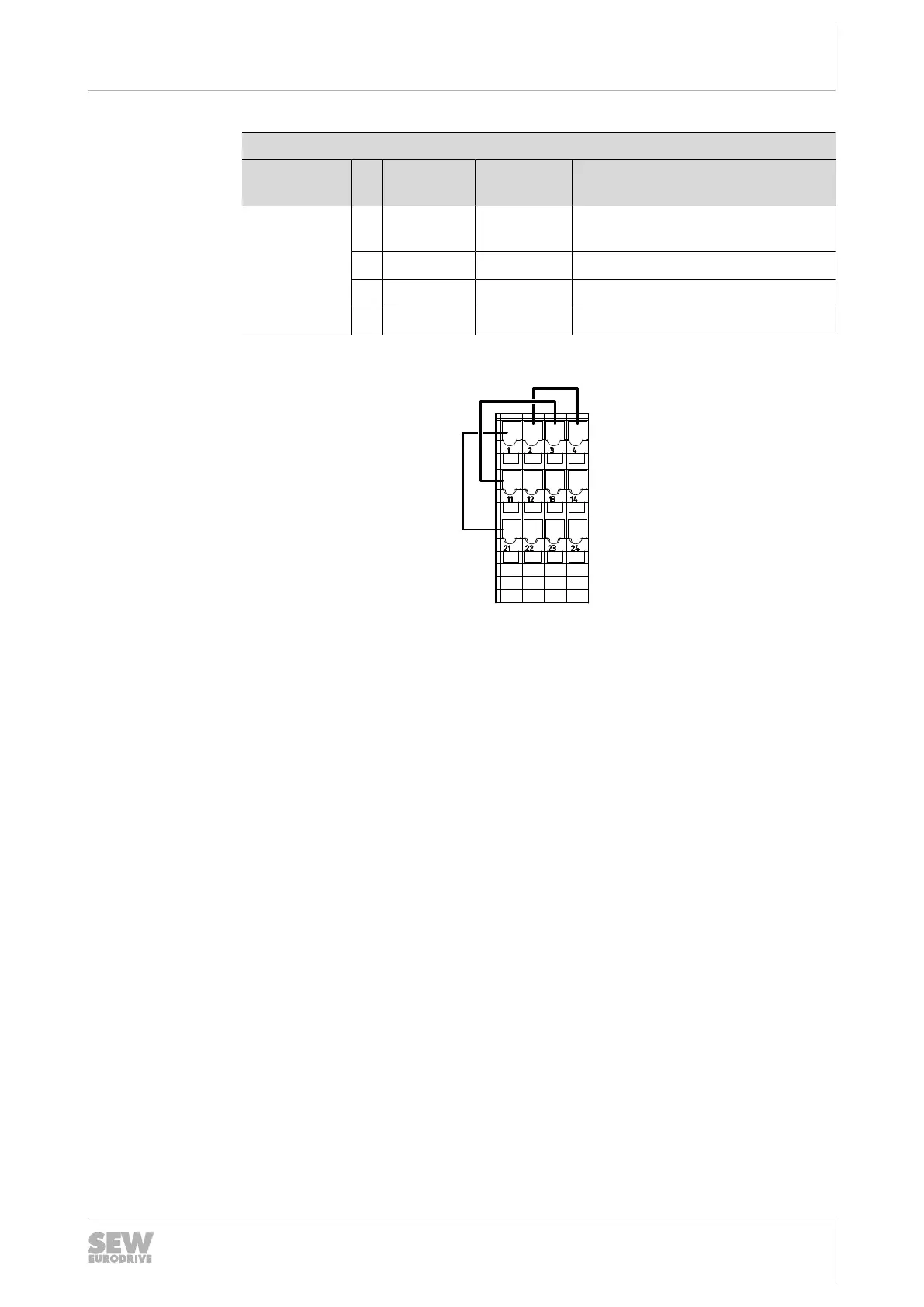

The following figure shows the factory-installed jumpers at the X9 terminals:
X9
1 2 3 4
11 12 13 14
21 22 23 24
9007221264582283
These jumpers are not present in the following designs:
• Designs with plug connectors with STO function.
• Designs with safety card (option /SBA).
For additional information, refer to the chapter "Functional safety".
25945475/EN – 04/2019
