SGM LEKTRA METER - 6.3 DIGITAL COMMUNICATIONS CONNECTION

Page 12 of 40
METER - electrical connections
6.3 DIGITAL COMMUNICATIONS CONNECTION

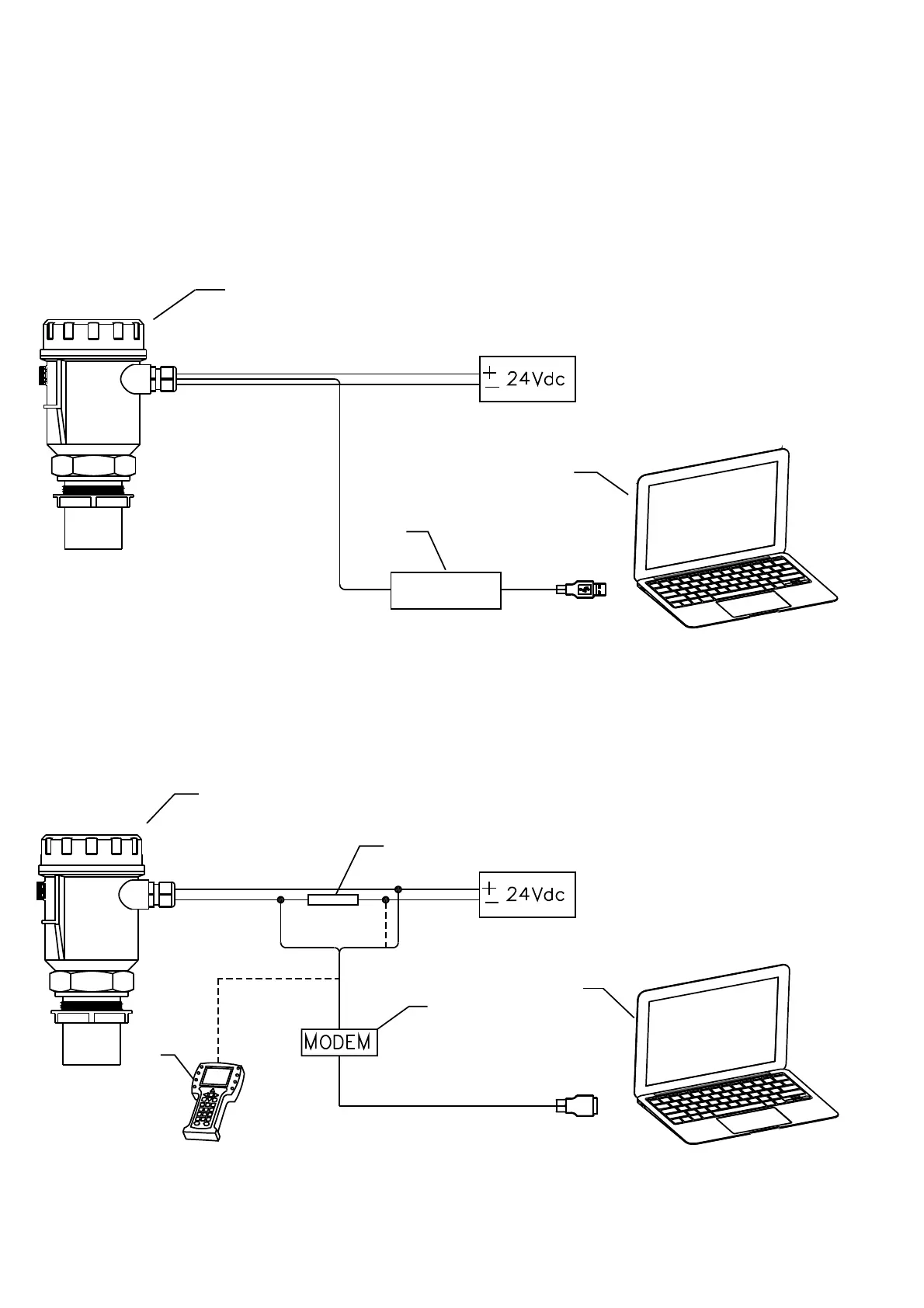

6.3.1 - 4-wires METER; MODBUS RTU PC connection
1) METER4____ or METER8____ with MODBUS RTU communication protocol
2) USB/RS485 interface module, cod.694A004A
3) MODBUS RTU communication S/W, cod.010F105A, for METER transmitter
With this software is possible:
- connect, by selecting the UID address, the METER transmitters in MODBUS RTU network
- read on your PC monitor all measures in reading and METER operation data
- programming all METER confi guration parameters
- storing on fi les, data logger function; METER measures in reading and operating states
1
2
3
USB/RS485
6.3.2 - 2-wires METER; HART Hand Held connection or HART PC/MODEM
1) METER-__, METER0__, METER2__, METER7__, with HART communication protocol
2) 250ohm resistance
3) HART MODEM
4) HART communication S/W, cod.010E105A (for PC HART MODEM only)
5) HART HAND-HELD
1
2
3
5
4
