METER - installation

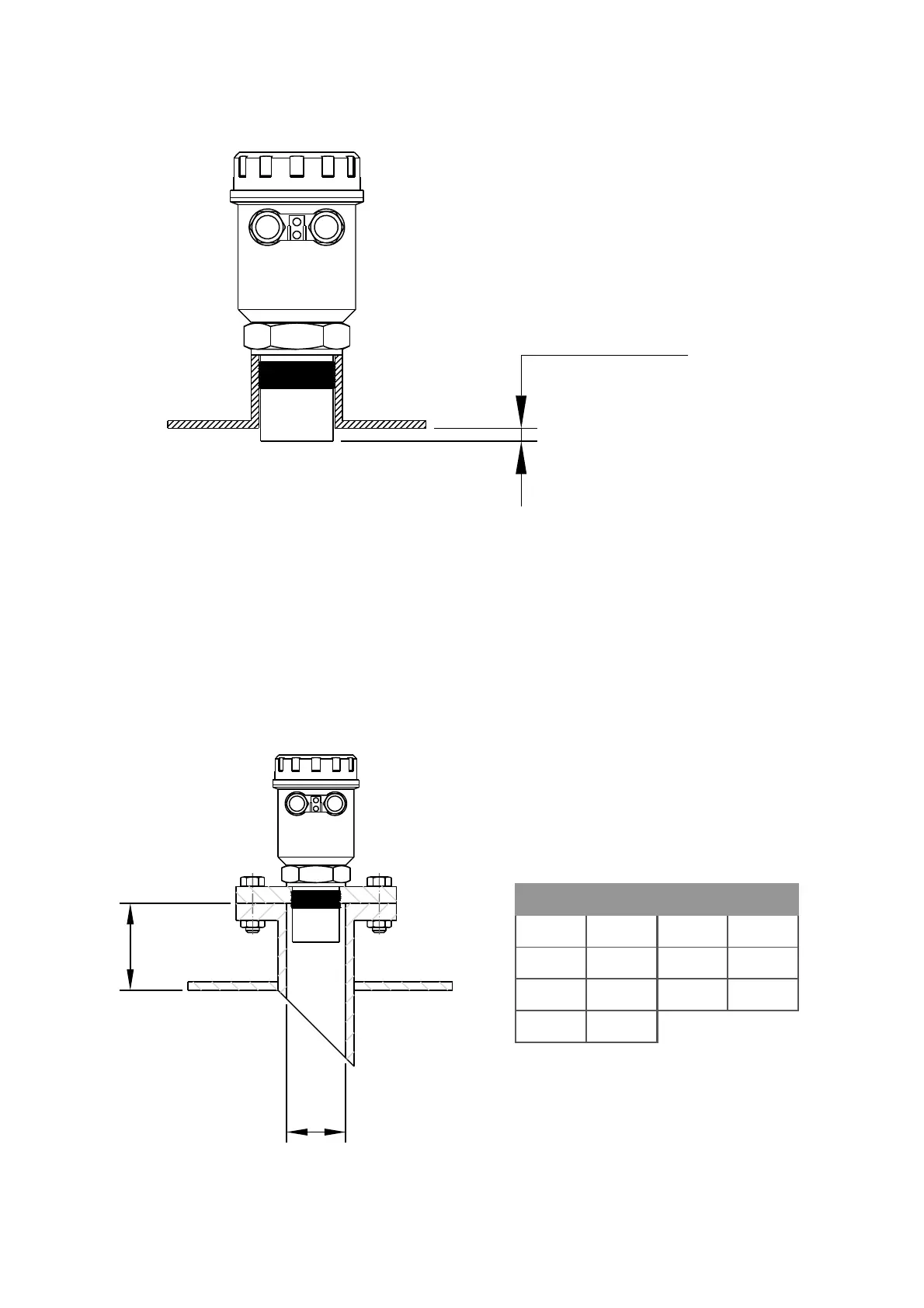

5.1.3 Installation in nozzle
Installing the METER sensor in a nozzle, make sure the sensor bottom protrudes at least 10 mm from the bottom
nozzle.
≥10mm.
METER can be installed in an extension pipe to turn away the sensor from the maximum level point. The exten-
sion pipe must be fl at and without joints (welds, etc..), also, the pipe terminal part must be cut at 45° and with the
borders without burr.
METER 6mt METER 10mt
D (mm) L max (mm) D (mm) L max (mm)
57 180 80 240
80 240 100 300
100 300
D
L
