SGM LEKTRA METER - 8.2.5 BLIND DISTANCE; 8.2.6 DISPLAY

Page 19 of 40
BLIND ZONE
BLIND
DISTANCE
METER
reference point

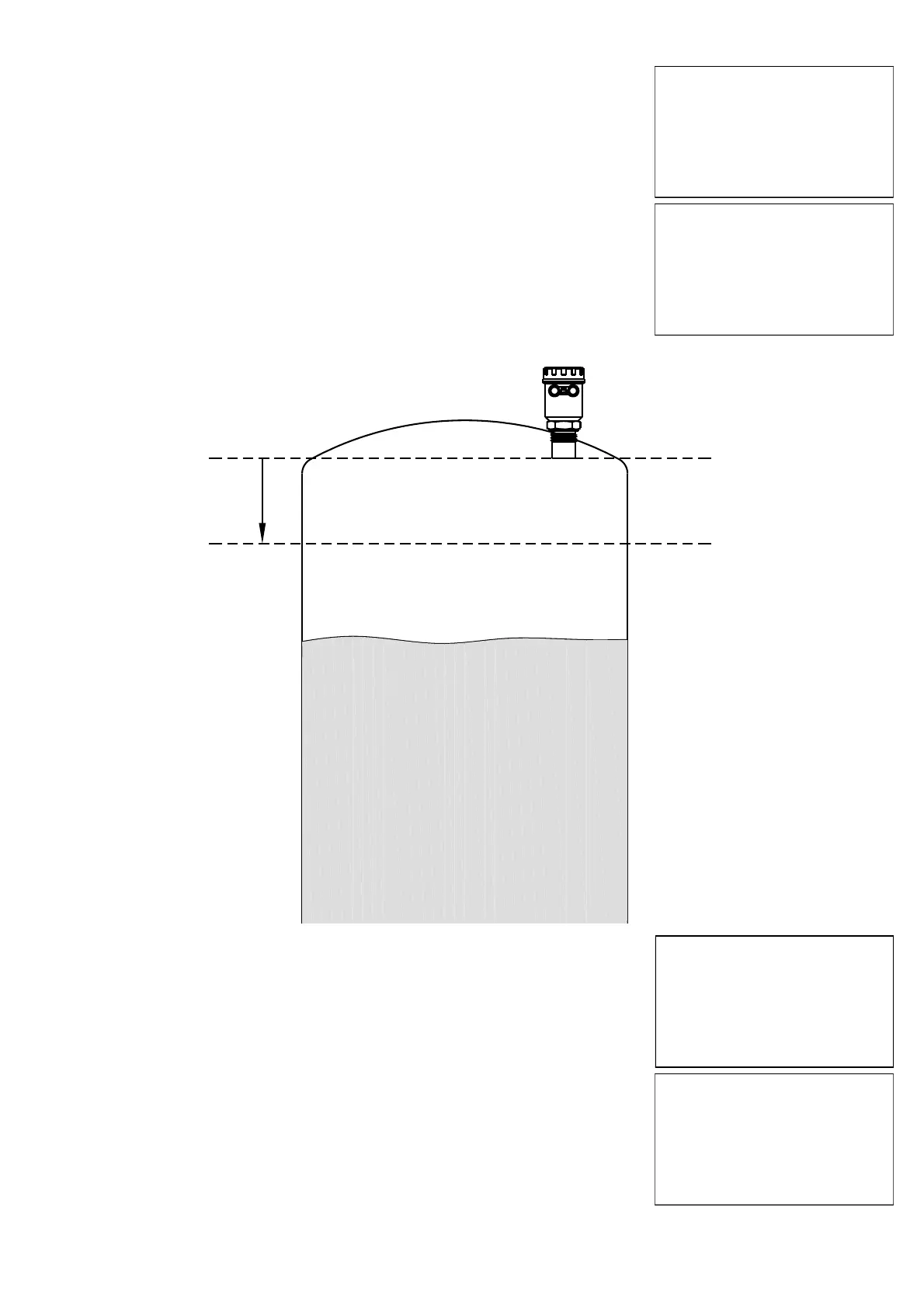

8.2.5 BLIND DISTANCE
Press ENTER.
he BLIND ZONE is used to avoid undesired measures near to the transmitter.
Use SCROLL and UP ARROW to modify the value. Press ENTER to confi rm.
The minimum value is 250mm (6m max vers.) or 400mm (10m max vers.).
SET DISTANCE 4mA
SET DISTANCE 20mA
MEDIUM
FILTER COEFFICENT
BLIND DISTANCE
DISPLAY
RL1 THRESHOLD
RL2 THRESHOLD
►
0250 mm
BLIND DISTANCE
8.2.6 DISPLAY
Press ENTER to access the settings change.
With the SCROLL button is possible to select the data to display
Press ENTER to confi rm.
SET DISTANCE 4mA
SET DISTANCE 20mA
MEDIUM
FILTER COEFFICENT
BLIND DISTANCE
DISPLAY
RL1 THRESHOLD
RL2 THRESHOLD
►
DISTANCE mm
LEVEL mm
LEVEL %
OUTPUT mA
TEMP. °C
►
METER - quick setup
