SGM LEKTRA METER - 9.2.8.2 - RL1 PUMP (only for RL1); 9.2.8.2.1 - UPPER; 9.2.8.2.2 - LOWER

Page 28 of 40
METER - advanced confi guration
9.2.8.2 - RL1 PUMP (only for RL1)
Position the cursor on RL1 PUMP, press ENTER to access
A pump control functioning activation, with hysteresis, is possible two
thresholds setting is required:
upper and lower threshold.
With the SCROLL button you can select the parameter to be programmed,
Press ENTER to confi rm.
UPPER
LOWER
DELAY
FILL./EMPT.
ENABLE/DISABLE
►
RL1 THRESHOLD
RL2 THRESHOLD
RL1 PUMP
RL2 DIAGNOSTIC
►
9.2.8.2.1 - UPPER
Position the cursor on UPPER, press ENTER to access.
The upper threshold is expressed in mm distance from the sensor. Rep-
resents the pump starting point, EMPTY case, or pump stopping point,
FILLING case.
Use UP ARROW and SCROLL to modify the value.
Press ENTER to confi rm.
LEFT ARROW to exit without changes
Default value: 0
UPPER
LOWER
DELAY
FILL./EMPT.
ENABLE/DISABLE
►
0900 mm
VALUE
9.2.8.2.2 - LOWER
Position the cursor on LOWER, press ENTER to access.
The lower threshold is expressed in mm distance from the sensor. Rep-
resents the pump stopping point, EMPTY case, or pump starting point,
FILLING case.
Use UP ARROW and SCROLL to modify the value.
Press ENTER to confi rm.
LEFT ARROW to exit without changes
Default value: 0
UPPER
LOWER
DELAY
FILL./EMPT.
ENABLE/DISABLE
►
4000 mm
VALUE
LOWER
THRESHOLD
UPPER
THRESHOLD
4000mm
900mm

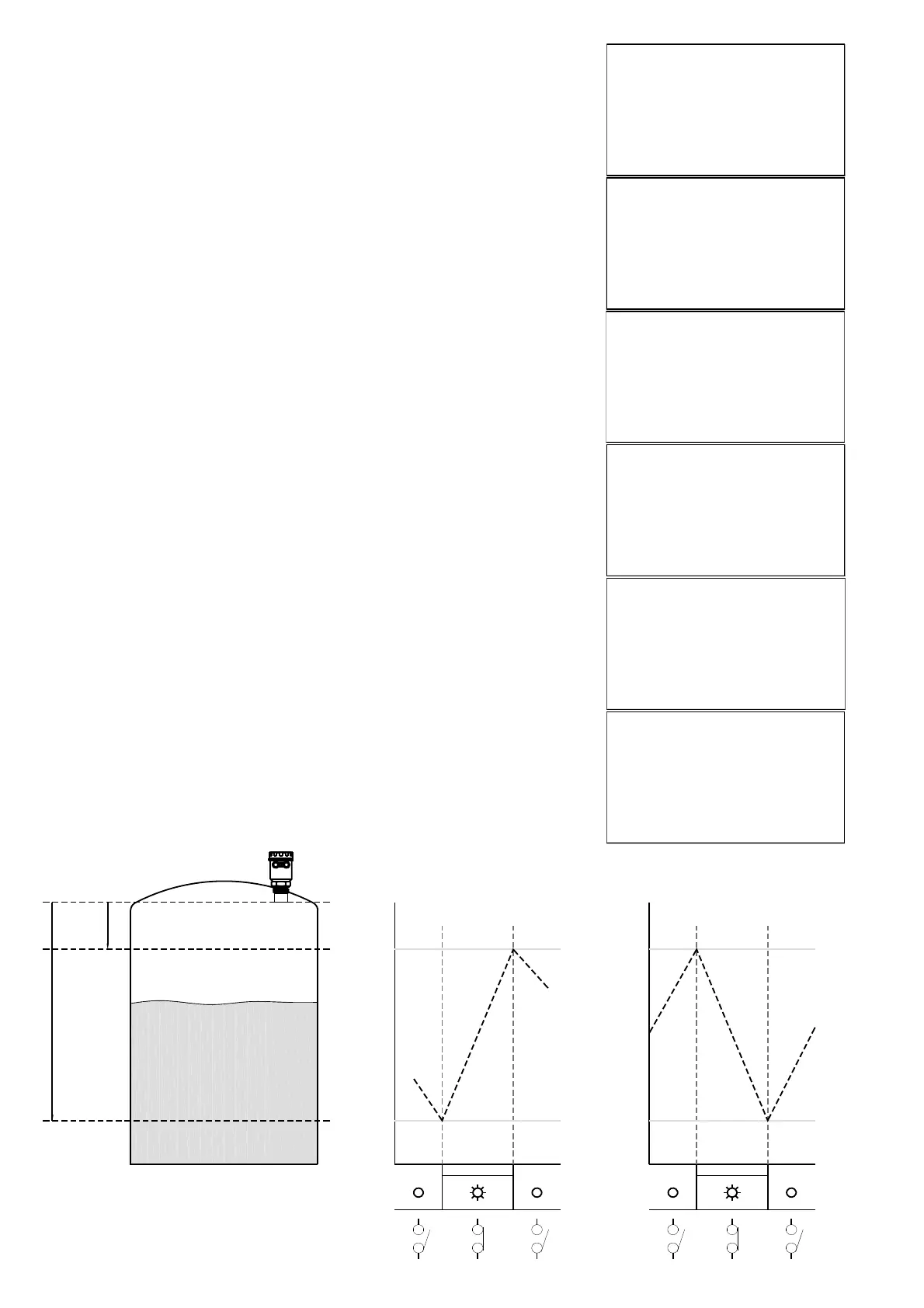

FILLING
UPPER
TH.
LOWER
TH.
OFF ON OFF
OFF ON OFF
UPPER
TH.
LOWER
TH.
RL1 ON
RL1 OFF
EMPTING
