SGM LEKTRA METER - 8.2.1 SET DISTANCE 4 mA; 8.2.2 SET DISTANCE 20 mA

Page 16 of 40
METER - quick setup
8.2.1 SET DISTANCE 4mA
Press ENTER to display the distance value associated with 4mA output.
Use SCROLL and UP ARROW to modify that value; in the example the 4mA
distance is 3500mm.
Press ENTER to confi rm.
SET DISTANCE 4mA
SET DISTANCE 20mA
MEDIUM
FILTER COEFFICENT
BLIND DISTANCE
DISPLAY
RL1 THRESHOLD
RL2 THRESHOLD
►
3500 mm
SET DISTANCE 4mA
8.2.2 SET DISTANCE 20mA
Press ENTER to display the distance value associated with 20mA output.
Use SCROLL and UP ARROW to modify that value; in the example the 20mA
distance is 500mm.
Press ENTER to confi rm.
SET DISTANCE 4mA
SET DISTANCE 20mA
MEDIUM
FILTER COEFFICENT
BLIND DISTANCE
DISPLAY
RL1 THRESHOLD
RL2 THRESHOLD
►
0500 mm
SET DISTANCE 20mA
100%
0%

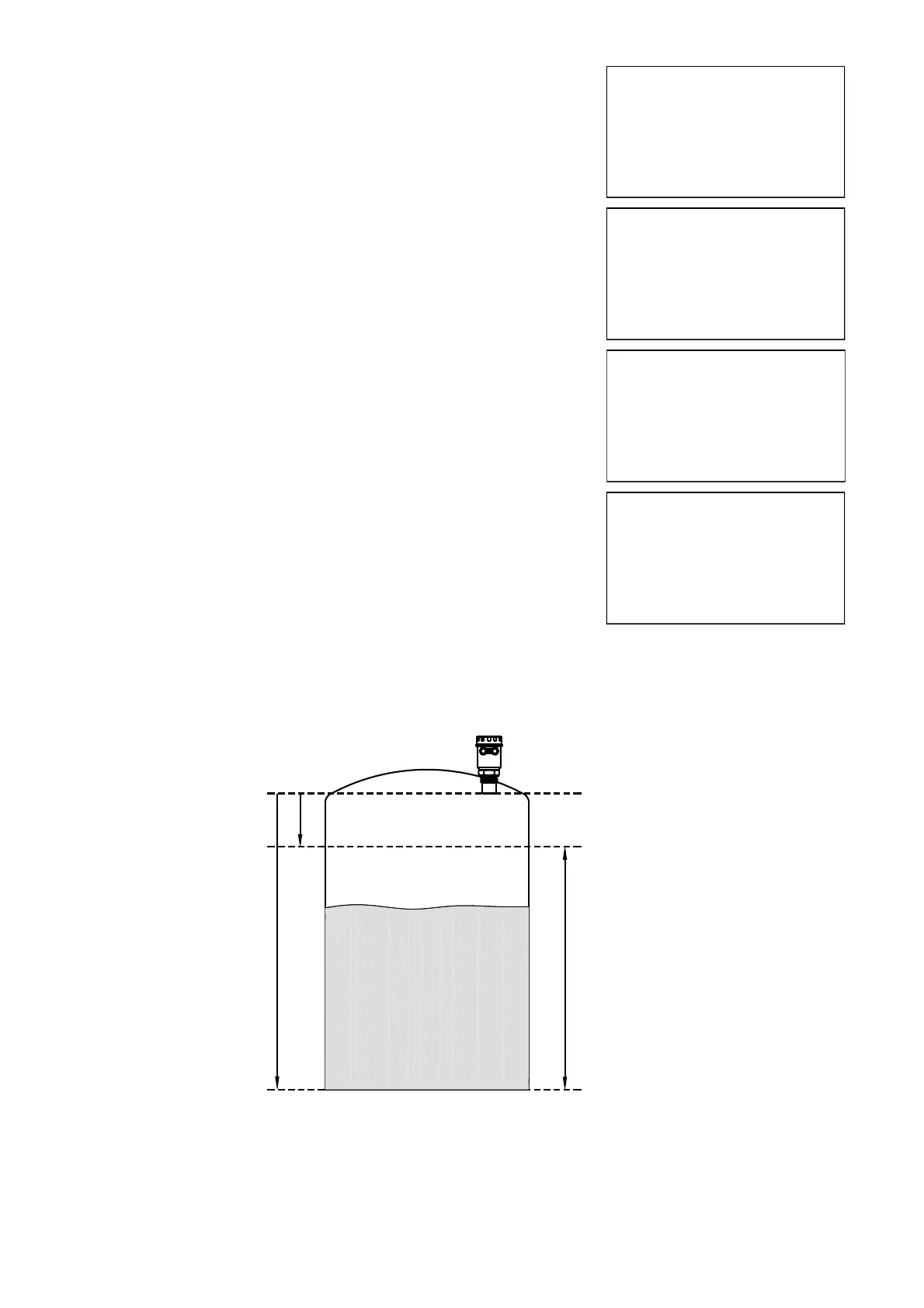

20mA distance
4mA distance
Level measurement
METER
Reference point
