METER - local operator interface (LOI) - VL601
The VL601 programming module can be mounted and removed from the METER without affecting the unit operation.

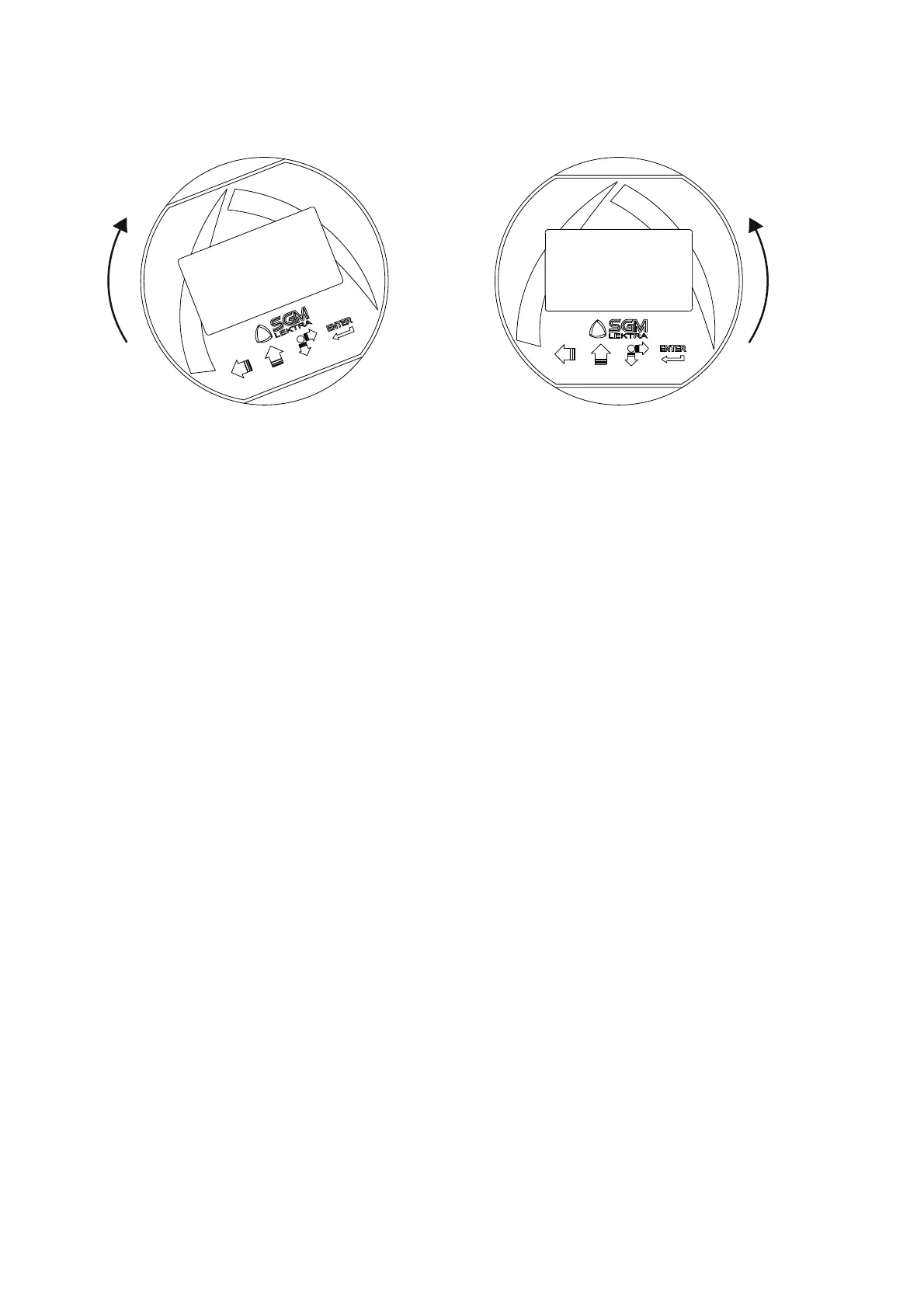

Unscrewing the cap, the VL601 module can be mounted (by clockwise rotation until it clicks) or dismounted (by rotation
counterclockwise) as shown in fi gure.
LOCK UNLOCK
