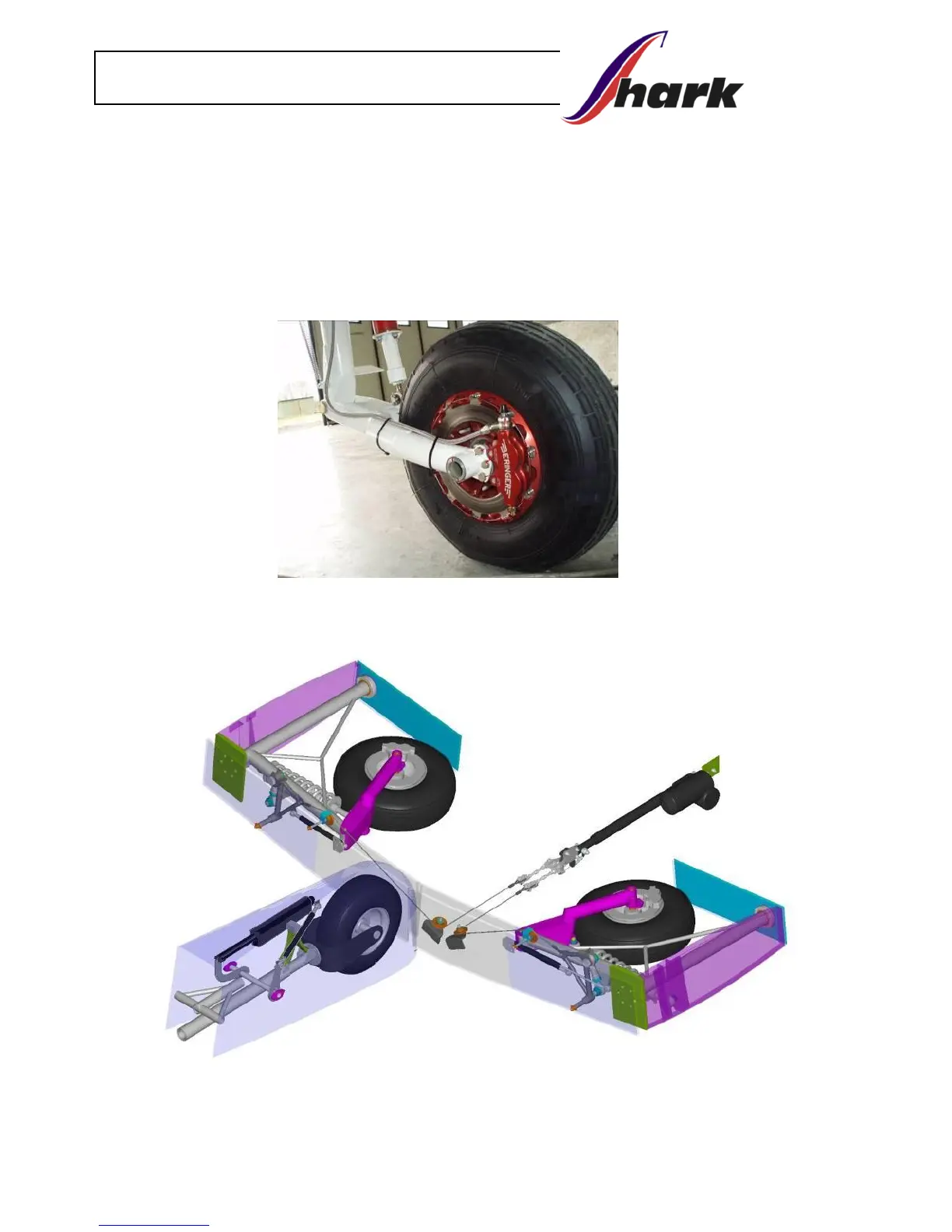

Shock absorbers are assembled from five absorber polyurethane blocks
EFFBE, which are hinged between lever and root rib of centre-wing by
gimbals.
Legs are secured in extended position by break-struts and held in locked
position by two gas struts and steel springs.
Main wheels Beringer with tyres SAVA 14x4 use hydraulic disc brakes
Beringer, controlled by toe-brakes on front pedals.
7.2.3. Undercarriage retraction and extension
Front undercarriage is retracted by independent electromechanical strut
LINAK LA12.
